Easyduino ESP32

Hanqaqa·Easyduino·ESP32/Easyduino_ESP32.kicad_pcb

Easyduino ESP32 PCB layout, top view — open source ESP32 board by Hanqaqa
Simulate this board

About the Easyduino ESP32 PCB

Easyduino ESP32 is an open source ESP32 PCB design by Hanqaqa, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 28.4 × 47.9 mm, with 29 components from 15 distinct parts.

Its main chip is the ESP32-WROOM-E, from the ESP32 family. Other key parts include the CP2102N-AXX-XQFN28, AMS1117-3.3 and ESP32-DEVKITC. By type, the board carries 10 capacitors, 8 resistors, 4 ICs, 2 transistors, 2 switches and 2 diodes.

It belongs with the iot & wireless, dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

Easily dive into different PCB KiCad designs of the most popular microcontroller devboards

KiCad Schematic symbols, footprints and 3D Models were obtained from their KiCad Github repository

- Input Voltage: 5V-15V(External Source 5V Pin) 5V (USB) or 3.3V (3.3V Pin). ONLY USE ONE VOLTAGE INPUT AT A TIME - Output Current at 3.3V : 1 A (External Source) 500mA (USB) - No Polarity Protection (External Source) - Overcurrent Protection: None

- ESP32 Wroom 32 E datasheet p24 -> 3.3V pin needs one 22uF and one 100nF capacitors

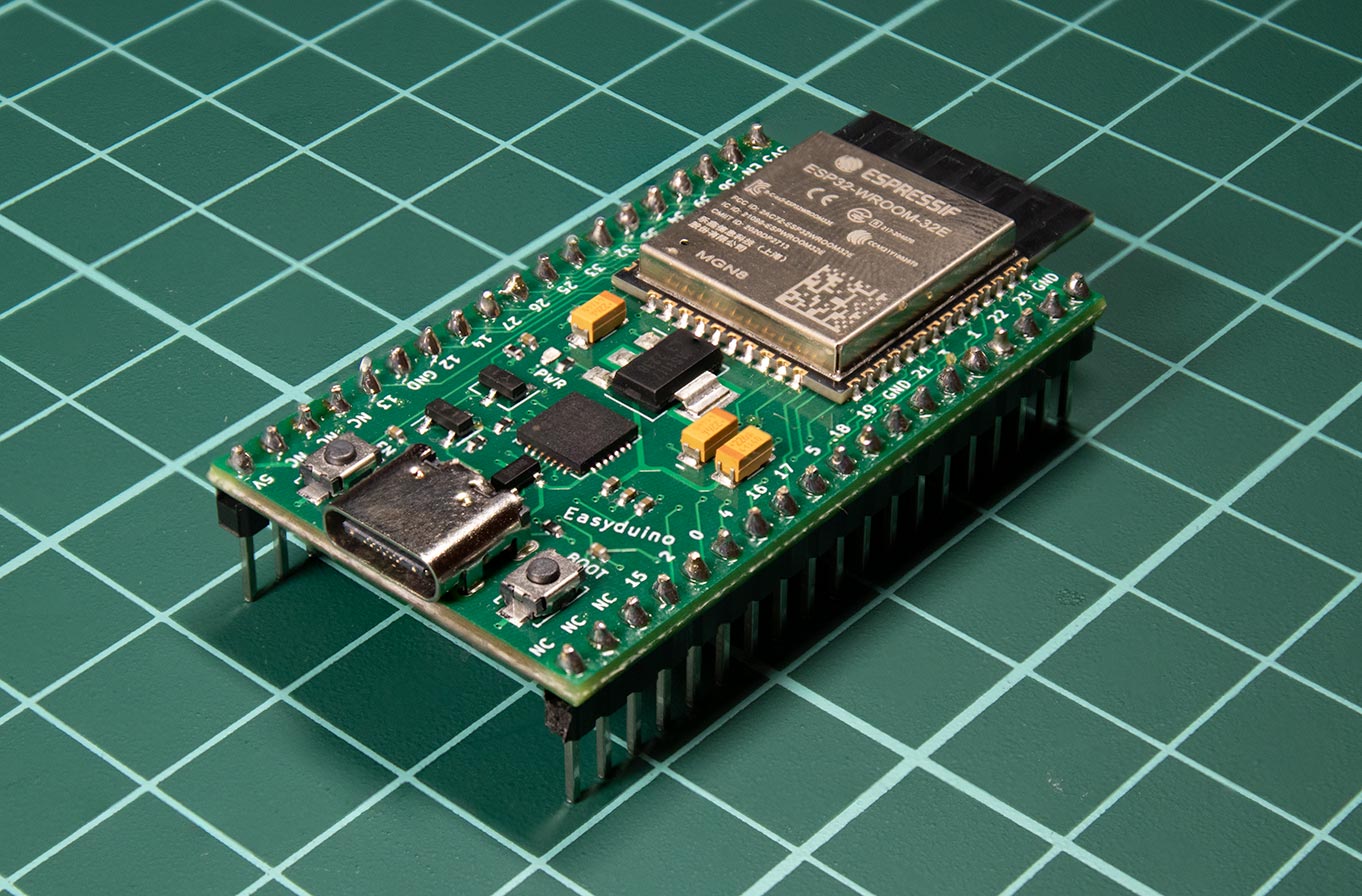

Easyduino ESP32, from the project README
From the project README

Main components on the Easyduino ESP32

CP2102N-AXX-XQFN28ESP32-WROOM-EAMS1117-3.3ESP32-DEVKITC

Easyduino ESP32 bill of materials (BOM)

29 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CP2102N-AXX-XQFN28
CP2102N-Axx-xQFN28
U1
1
ESP32-WROOM-E
U2
1
AMS1117-3.3
U3
1
ESP32-DEVKITC
ESP32-DevKitC
U4
2
SS8050
Q1, Q2
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1
2
SW_Push
SW1, SW2
1
SP0503BAHT
D1
1
LED
D2
1
1u
C1
6
100N
100n
C2, C3, C4, C6, C9, C10
3
22U
22u
C5, C7, C8
4
10K
10k
R1, R4, R5, R7
3
5.1K
5.1k
R2, R3, R8
1
2k
R6

Easyduino ESP32 design files

The KiCad project lives in the Hanqaqa/Easyduino repository on GitHub; these links point at the commit this page was built from.

Easyduino ESP32: common questions

What microcontroller does the Easyduino ESP32 use?

The Easyduino ESP32 is built around the ESP32-WROOM-E, from the ESP32 family.

How big is the Easyduino ESP32 PCB?

The Easyduino ESP32 measures 28.4 × 47.9 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Easyduino ESP32?

29 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Easyduino ESP32 design files?

From the Hanqaqa/Easyduino repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Easyduino ESP32 design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which Hanqaqa chose for the repository.

Can I test firmware for the Easyduino ESP32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
