Easyduino ESP32S3

Hanqaqa·Easyduino·ESP32S3/Easyduino_ESP32S3.kicad_pcb

Easyduino ESP32S3 PCB layout, top view — open source ESP32 board by Hanqaqa
Simulate this board

About the Easyduino ESP32S3 PCB

Easyduino ESP32S3 is an open source ESP32 PCB design by Hanqaqa, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 25.9 × 63.9 mm, with 35 components from 15 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the ESP32-S3-DEVKITC, CP2102N-AXX-XQFN28 and AMS1117-3.3. By type, the board carries 11 resistors, 10 capacitors, 4 ICs, 4 diodes, 2 transistors and 2 connectors.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

Easily dive into different PCB KiCad designs of the most popular microcontroller devboards

The new and powerful microcontroller from Espressif

KiCad Schematic symbols, footprints and 3D Models were obtained from their KiCad Github repository

- Input Voltage: 5V-15V(External Source 5V) 5V (USB UART OR USB ESP32) or 3.3V. ONLY USE ONE VOLTAGE INPUT AT A TIME - Output Current at 3.3V : 1 A (External Source) 500mA (USB) - No Polarity Protection (External Source) - Overcurrent Protection: None

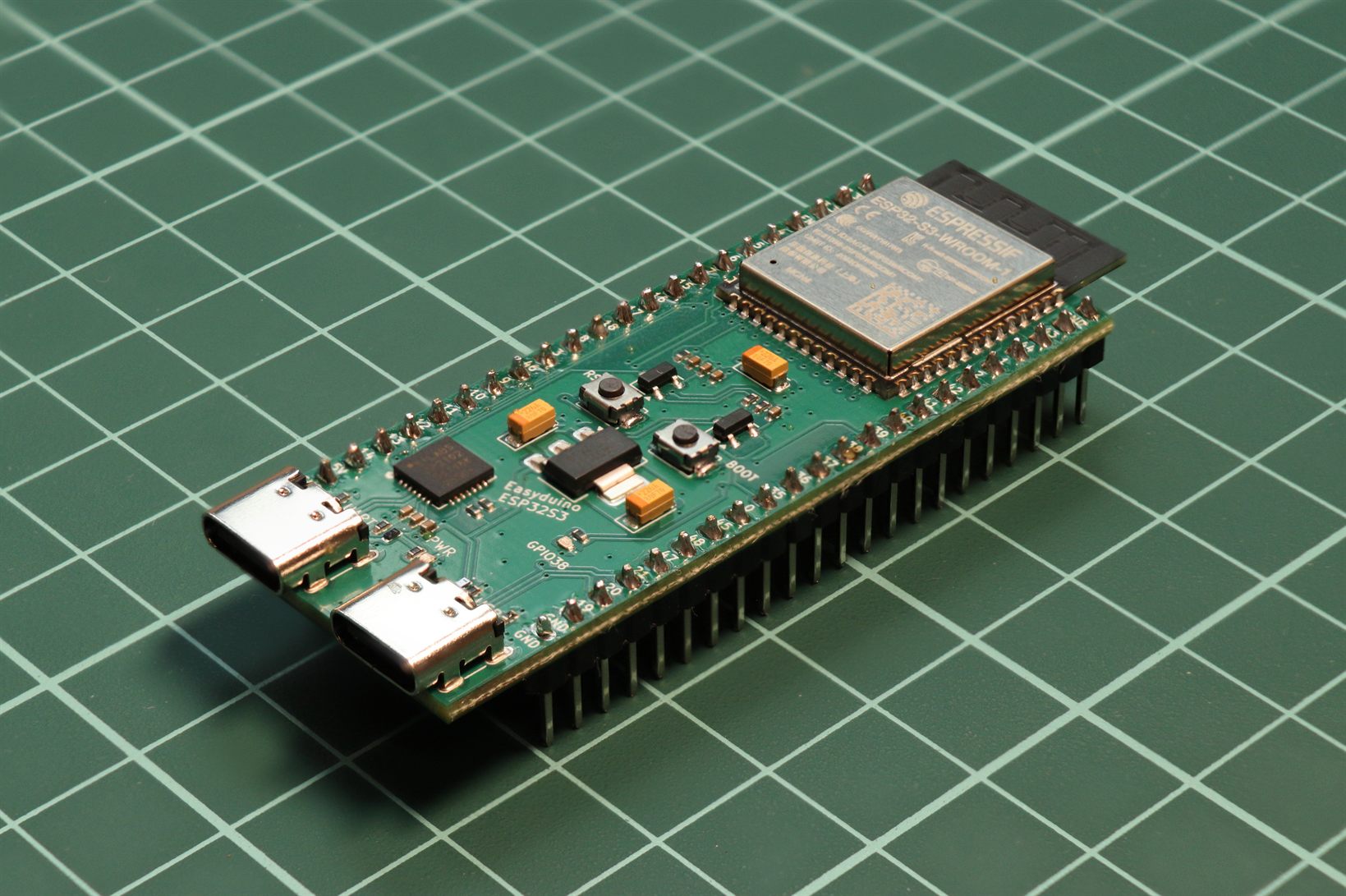

Easyduino ESP32S3, from the project README
From the project README

Main components on the Easyduino ESP32S3

ESP32-S3-WROOM-1ESP32-S3-DEVKITCCP2102N-AXX-XQFN28AMS1117-3.3

Easyduino ESP32S3 bill of materials (BOM)

35 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1
U1
1
ESP32-S3-DEVKITC
ESP32-S3-DevKitC
U2
1
CP2102N-AXX-XQFN28
CP2102N-Axx-xQFN28
U3
1
AMS1117-3.3
U5
2
C916392
Q_NPN_BCE
Q1, Q2
2
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1, J2
2
SW_Push
SW1, SW2
2
LED
D1, D4
2
C2837790
D_Schottky
D2, D3
1
1u
C1
6
100N
100n
C2, C3, C4, C5, C8, C9
3
22U
22u
C6, C7, C10
4
10K
10k
R1, R4, R5, R10
6
5.1K
5.1k
R2, R3, R6, R7, R8, R11
1
2.4K
2.4k
R9

Easyduino ESP32S3 design files

The KiCad project lives in the Hanqaqa/Easyduino repository on GitHub; these links point at the commit this page was built from.

Easyduino ESP32S3: common questions

What microcontroller does the Easyduino ESP32S3 use?

The Easyduino ESP32S3 is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Easyduino ESP32S3 PCB?

The Easyduino ESP32S3 measures 25.9 × 63.9 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Easyduino ESP32S3?

35 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Easyduino ESP32S3 design files?

From the Hanqaqa/Easyduino repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Easyduino ESP32S3 design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which Hanqaqa chose for the repository.

Can I test firmware for the Easyduino ESP32S3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
