WINK MSP-MDC redux
About the WINK MSP-MDC redux PCB
WINK MSP-MDC redux is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 104.1 × 106.7 mm, with 41 components from 17 distinct parts.
Other key parts include the Z80CPU, 74LS374, 74ALS00, 74ALS32 and 74LS245. By type, the board carries 19 ICs, 19 capacitors and 3 resistors.
From the project

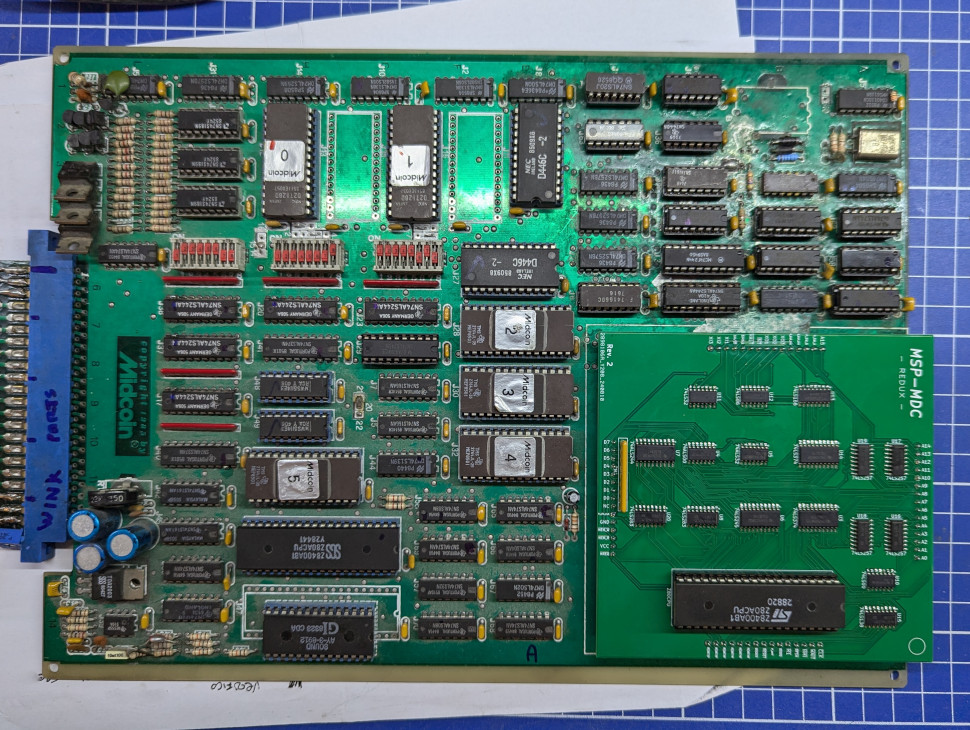

Reimplementation of the MSP-MDC CPU/Security module for the Wink arcade board by Midcoin
Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.
Wink is a 1985, breakout-style, arcade game by Midcoin.
Main components on the WINK MSP-MDC redux
WINK MSP-MDC redux bill of materials (BOM)
41 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ~ | MSP-MDC | U1 |
| 1 | Z80CPU | DIP-40_W15.24mm_Socket | U2 |
| 2 | 74LS374 | SO-20_5.3x12.6mm_P1.27mm | U3, U14 |
| 1 | 74ALS00 | SOIC-14_3.9x8.7mm_P1.27mm | U4 |
| 1 | 74ALS32 | SOIC-14_3.9x8.7mm_P1.27mm | U5 |
| 1 | 74LS245 | SO-20_5.3x12.6mm_P1.27mm | U6 |
| 1 | 74ALS244 | SO-20_5.3x12.6mm_P1.27mm | U7 |
| 2 | 74LS283 | SOIC-16_3.9x9.9mm_P1.27mm | U8, U20 |
| 1 | 74LS00 | SOIC-14_3.9x8.7mm_P1.27mm | U10 |
| 1 | 74LS32 | SOIC-14_3.9x8.7mm_P1.27mm | U11 |
| 1 | 74LS86 | SOIC-14_3.9x8.7mm_P1.27mm | U12 |
| 1 | 74LS166 | SOIC-16_3.9x9.9mm_P1.27mm | U13 |
| 1 | 74LS138 | SOIC-16_3.9x9.9mm_P1.27mm | U15 |
| 4 | 74LS257 | SOIC-16_3.9x9.9mm_P1.27mm | U16, U17, U18, U19 |
| 19 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +11 |
| 2 | 1K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2 |
| 1 | 10K | R_Array_SIP9 | RN1 |
WINK MSP-MDC redux design files
The KiCad project lives in the hkzlab/WINK_MSP-MDC_redux repository on GitHub; these links point at the commit this page was built from.
- LayoutMSP-MDC.kicad_pcb
- SchematicMSP-MDC.kicad_sch
WINK MSP-MDC redux: common questions
How big is the WINK MSP-MDC redux PCB?
The WINK MSP-MDC redux measures 104.1 × 106.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the WINK MSP-MDC redux?
41 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the WINK MSP-MDC redux design files?
From the hkzlab/WINK_MSP-MDC_redux repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the WINK MSP-MDC redux design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
