Cube hologram

Honzaaa45·cube-hologram-pcb·hw/cube.kicad_pcb

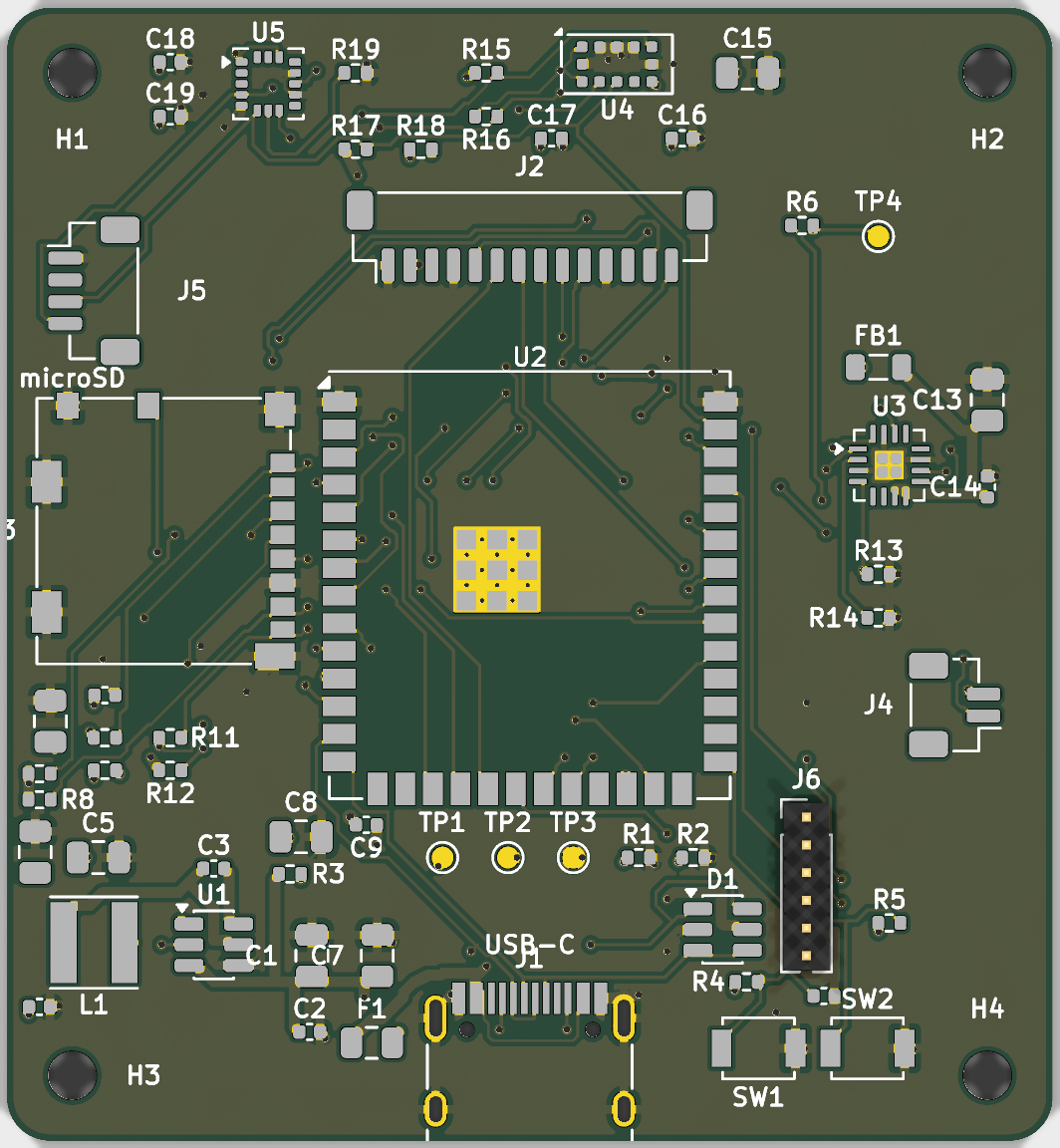

Cube hologram PCB layout, top view — open source ESP32 board by Honzaaa45
Simulate this board

About the Cube hologram PCB

Cube hologram is an open source ESP32 PCB design by Honzaaa45, published on GitHub under the MIT license. It is a 4-layer board measuring 48 × 52 mm, with 55 components from 30 distinct parts.

Its main chip is the ESP32-S3-WROOM-1U-N16R8, from the ESP32 family. Other key parts include the AP63203WU-7, MAX98357AETE+T, VL53L1CXV0FY/1 and LIS3DHTR. By type, the board carries 19 capacitors, 19 resistors, 6 connectors, 5 ICs, 2 switches and 2 inductors.

It belongs with the displays & leds designs in this gallery.

From the project

Carte electronique d'un afficheur holographique Pepper's Ghost : CAO KiCad 4 couches entierement generee par du code et verifiee automatiquement

Carte électronique d'un afficheur holographique de bureau — conçue entièrement par du code, vérifiée automatiquement.

Le circuit imprimé, rendu depuis les fichiers de ce dépôt. Fond transparent : lisible en thème clair comme en thème sombre.

Les afficheurs « holographiques » DIY qu'on trouve en ligne se ressemblent tous : un ESP32, un petit écran OLED monochrome et une breadboard. Le résultat est saccadé, minuscule, et l'électronique est visible. Ce projet répond à la même envie mais en produit final : image couleur fluide, électronique intégrée sur une carte sur mesure, et surtout une…

Cube hologram, from the project README
From the project README

Main components on the Cube hologram

AP63203WU-7ESP32-S3-WROOM-1U-N16R8MAX98357AETE+TVL53L1CXV0FY/1LIS3DHTR

Cube hologram bill of materials (BOM)

55 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP63203WU-7
AP63203WU
U1
1
ESP32-S3-WROOM-1U-N16R8
U2
1
MAX98357AETE+T
MAX98357A
U3
1
VL53L1CXV0FY/1
VL53L1X
U4
1
LIS3DHTR
LIS3DH
U5
1
TYPE-C-31-M-12
USB-C
J1
1
BM14B-SRSS-TB
ECRAN QSPI
J2
1
104031-0811
microSD
J3
1
BM02B-SRSS-TB
HP
J4
1
BM04B-SRSS-TB
I2C EXT
J5
1
DEBUG
J6
1
MF-MSMF110-2
1.1A
F1
1
B3U-1000P
RESET
SW1
1
B3U-1000P
BOOT
SW2
1
USBLC6-2SC6
D1
1
BLM21PG600SN1D
600R@100MHz
FB1
1
NR4018T2R2M
2.2uH/3A
L1
1
10UF/25V
10uF/25V
C1
6
100NF
100nF
C2, C3, C6, C9, C12, C14
5
22UF/10V
22uF/10V
C4, C5, C7, C8, C13
Show 10 more
QtyPartRefs
1
1UF
1uF
C10
2
10UF/10V
10uF/10V
C11, C15
4
100nF
C16, C17, C18, C19
2
5.1K
5.1k
R1, R2
2
100K
100k
R3, R13
4
10K
10k
R4, R5, R15, R16
2
0R
R6, R19
6
10k
R7, R8, R9, R10, R11, R12
1
DNP
R14
2
4.7K
4.7k
R17, R18

Cube hologram design files

The KiCad project lives in the Honzaaa45/cube-hologram-pcb repository on GitHub; these links point at the commit this page was built from.

Cube hologram: common questions

What microcontroller does the Cube hologram use?

The Cube hologram is built around the ESP32-S3-WROOM-1U-N16R8, from the ESP32 family.

How big is the Cube hologram PCB?

The Cube hologram measures 48 × 52 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Cube hologram?

55 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Cube hologram design files?

From the Honzaaa45/cube-hologram-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Cube hologram design in my own project?

Yes, under the terms of its MIT license, which Honzaaa45 chose for the repository.

Can I test firmware for the Cube hologram without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
