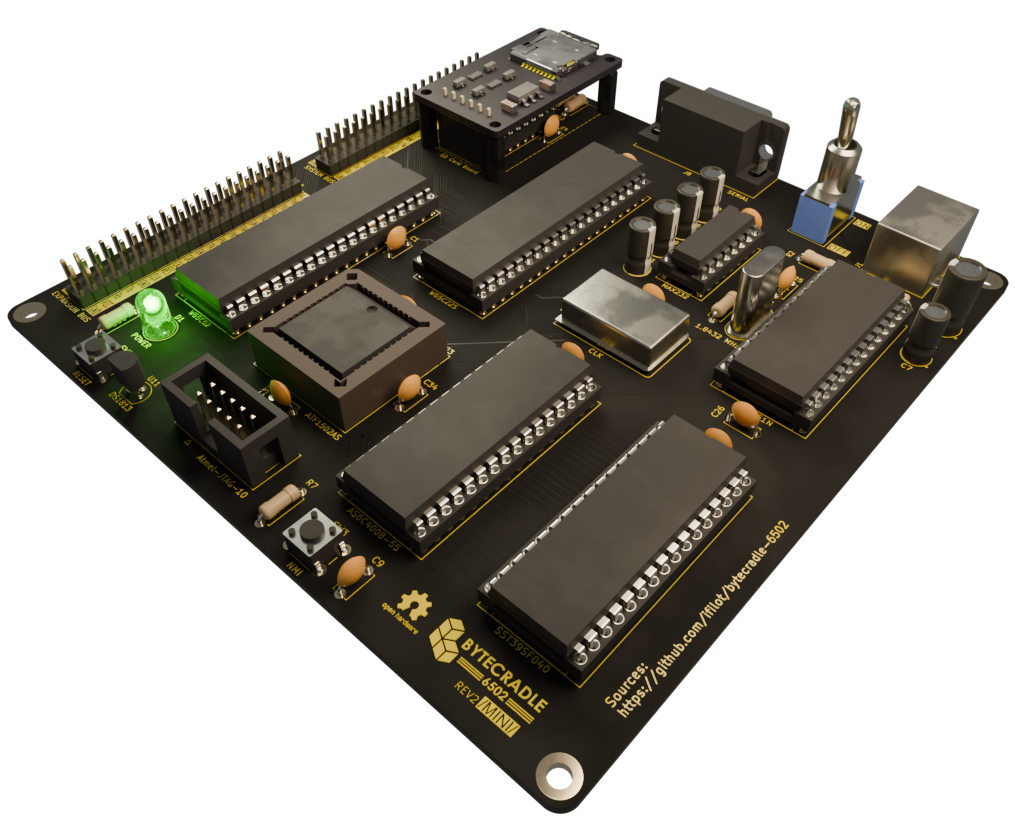

ByteCradle 6502 TINY
ifilot·bytecradle-6502·pcb/tiny-board/tiny-board.kicad_pcb
About the ByteCradle 6502 TINY PCB
ByteCradle 6502 TINY is an open source PCB design by ifilot, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100.3 × 99.7 mm, with 36 components from 23 distinct parts.
Other key parts include the W65C02, SST39SF010, DS1813, 62256-55 and ATF22V10. By type, the board carries 15 capacitors, 7 ICs, 6 resistors, 3 switches, 2 crystals and 2 connectors.
It belongs with the retro computing designs in this gallery.
From the project
Homebrew 6502-based computer
The ByteCradle 6502 is a single-board computer (SBC) platform designed for understanding and experimenting with simple operating systems on 8-bit hardware. Built around the WDC 65C02 microprocessor, it provides a hands-on platform for studying system initialization, memory management, device interfacing, and file system handling.
- BYTECRADLE 6502 - Overview - Shared Components - Tier Comparison - Obtaining PCBs - Download ROMs - License - Software - Hardware - Contributing - Acknowledgements

Main components on the ByteCradle 6502 TINY
ByteCradle 6502 TINY bill of materials (BOM)
36 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W65C02 | DIP-40_W15.24mm_Socket | U1 |
| 1 | SST39SF010 | DIP-32_W15.24mm_Socket | U2 |
| 1 | DS1813 | TO-92 | U3 |
| 1 | 62256-55 | DIP-28_W15.24mm_Socket | U4 |
| 1 | ATF22V10 | DIP-24_W7.62mm_Socket | U5 |
| 1 | W65C51NxP | DIP-28_W15.24mm_Socket | U6 |
| 1 | MAX232 | DIP-16_W7.62mm_Socket | U7 |
| 1 | 16 MHz | Oscillator_DIP-14 | X1 |
| 1 | 1.8432 MHz | Crystal_HC50_Vertical | Y1 |
| 1 | USB_B | USB_B_OST_USB-B1HSxx_Horizontal | J1 |
| 1 | SYSTEM BUS | PinHeader_2x20_P2.54mm_Vertical | J3 |
| 1 | SW_SPDT | power_switch | SW1 |
| 1 | RESET | SW_PUSH_6mm | SW2 |
| 1 | NMI | SW_PUSH_6mm | SW3 |
| 1 | POWER | LED_D5.0mm | D1 |
| 8 | 100nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C1, C3, C5, C6, C7, C8, C9, C10 |
| 5 | 10uF | CP_Radial_D5.0mm_P2.50mm | C2, C12, C13, C14, C15 |
| 1 | 220uF | CP_Radial_D6.3mm_P2.50mm | C4 |
| 1 | 30pF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C11 |
| 3 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R3, R4 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5 |
| 1 | 560 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
ByteCradle 6502 TINY design files
The KiCad project lives in the ifilot/bytecradle-6502 repository on GitHub; these links point at the commit this page was built from.
ByteCradle 6502 TINY: common questions
How big is the ByteCradle 6502 TINY PCB?
The ByteCradle 6502 TINY measures 100.3 × 99.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ByteCradle 6502 TINY?
36 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the ByteCradle 6502 TINY design files?
From the ifilot/bytecradle-6502 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the ByteCradle 6502 TINY design in my own project?
Yes, under the terms of its GPL-3.0 license, which ifilot chose for the repository.
