Multicartridge smd-32u4-front dipswitch

ifilot·p2000t-cartridges·multicartridge-smd-32u4-front-dipswitch/pcb/multicartridge-smd-32u4-front-dipswitch.kicad_pcb

Multicartridge smd-32u4-front dipswitch PCB layout, top view — open source AVR/Arduino board by ifilot

About the Multicartridge smd-32u4-front dipswitch PCB

Multicartridge smd-32u4-front dipswitch is an open source AVR/Arduino PCB design by ifilot, published on GitHub. It is a 2-layer board measuring 80 × 100 mm, with 72 components from 32 distinct parts.

Its main chip is the ATmega32U4-A, from the AVR/Arduino family. Other key parts include the 74HC00, SST39SF020, 74HC157, 74HC573 and 74HC123. By type, the board carries 27 capacitors, 23 resistors, 12 ICs, 3 connectors, 2 switches and 1 transistor.

From the project

Collection of homebrew P2000T cartridges

A SLOT1 cartridge designed to enable selection from 32 memory banks, assuming the use of a 512KB ROM chip. It features a dedicated bracket PCB for holding the DIP switch, which can be connected to the main PCB using either six wires or a custom flex cable. Additionally, this cartridge includes a soft reset switch, equipped with a debouncing circuit using a 74HC123 multivibrator. This cartridge uses THT components.

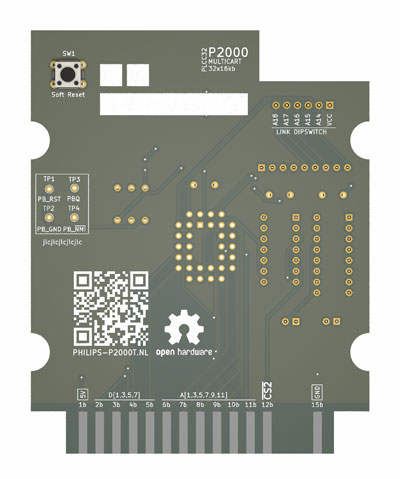

Multicartridge smd-32u4-front dipswitch, from the project README
From the project README

Main components on the Multicartridge smd-32u4-front dipswitch

74HC00SST39SF020ATmega32U4-A74HC15774HC57374HC12374HC32TPS2116DRLUSBLC6-2SC6

Multicartridge smd-32u4-front dipswitch bill of materials (BOM)

72 components, 32 distinct parts.

QtyPartRefs
1
74HC00
U1
1
SST39SF020
U2
1
ATmega32U4-A
U3
2
74HC157
U4, U5
3
74HC573
U6, U7, U8
1
74HC123
U9
1
74HC32
U10
1
TPS2116DRL
U11
1
USBLC6-2SC6
U12
1
2N7002
Q1
1
16MHz
Y1
1
P2000T_cartridge_edge
J1
1
USB_C_Receptacle_USB2.0_16P
J2
1
AVR-ISP-6
J3
1
SMD0805-100
F1
1
DIP
SW1
1
Soft Reset
SW2
1
SMF0.5A
D1
1
FerriteBead
FB1
18
0.1uF
C1, C5, C6, C7, C8, C11, C12, C13 +10
Show 12 more
QtyPartRefs
2
22pF
C2, C3
3
1uF
C4, C10, C16
1
100uF
C9
2
10uF
C18, C21
1
4.7nF
C22
13
10k
R1, R2, R3, R4, R5, R12, R13, R14 +5
2
22
R6, R7
1
47k
R11
2
5.1k
R15, R17
1
33k
R16
1
1M
R20
3
100k
R24, R25, R26

Multicartridge smd-32u4-front dipswitch design files

The KiCad project lives in the ifilot/p2000t-cartridges repository on GitHub; these links point at the commit this page was built from.

Multicartridge smd-32u4-front dipswitch: common questions

What microcontroller does the Multicartridge smd-32u4-front dipswitch use?

The Multicartridge smd-32u4-front dipswitch is built around the ATmega32U4-A, from the AVR/Arduino family.

How big is the Multicartridge smd-32u4-front dipswitch PCB?

The Multicartridge smd-32u4-front dipswitch measures 80 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Multicartridge smd-32u4-front dipswitch?

72 components, from 32 distinct parts. The full bill of materials is listed on this page.

Where can I download the Multicartridge smd-32u4-front dipswitch design files?

From the ifilot/p2000t-cartridges repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Multicartridge smd-32u4-front dipswitch design in my own project?

The repository has no license, so all rights stay with ifilot. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Multicartridge smd-32u4-front dipswitch without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
