M5Pi-F1C100S/200S
About the M5Pi-F1C100S/200S PCB
M5Pi-F1C100S/200S is an open source PCB design by imliubo, published on GitHub. It is a 4-layer board measuring 47.5 × 50 mm, with 141 components from 60 distinct parts.
Other key parts include the CH340E, ESP8089, F1C100s, MPU-6050 and NS4158B. By type, the board carries 57 capacitors, 40 resistors, 10 ICs, 8 connectors, 5 test points and 5 diodes.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

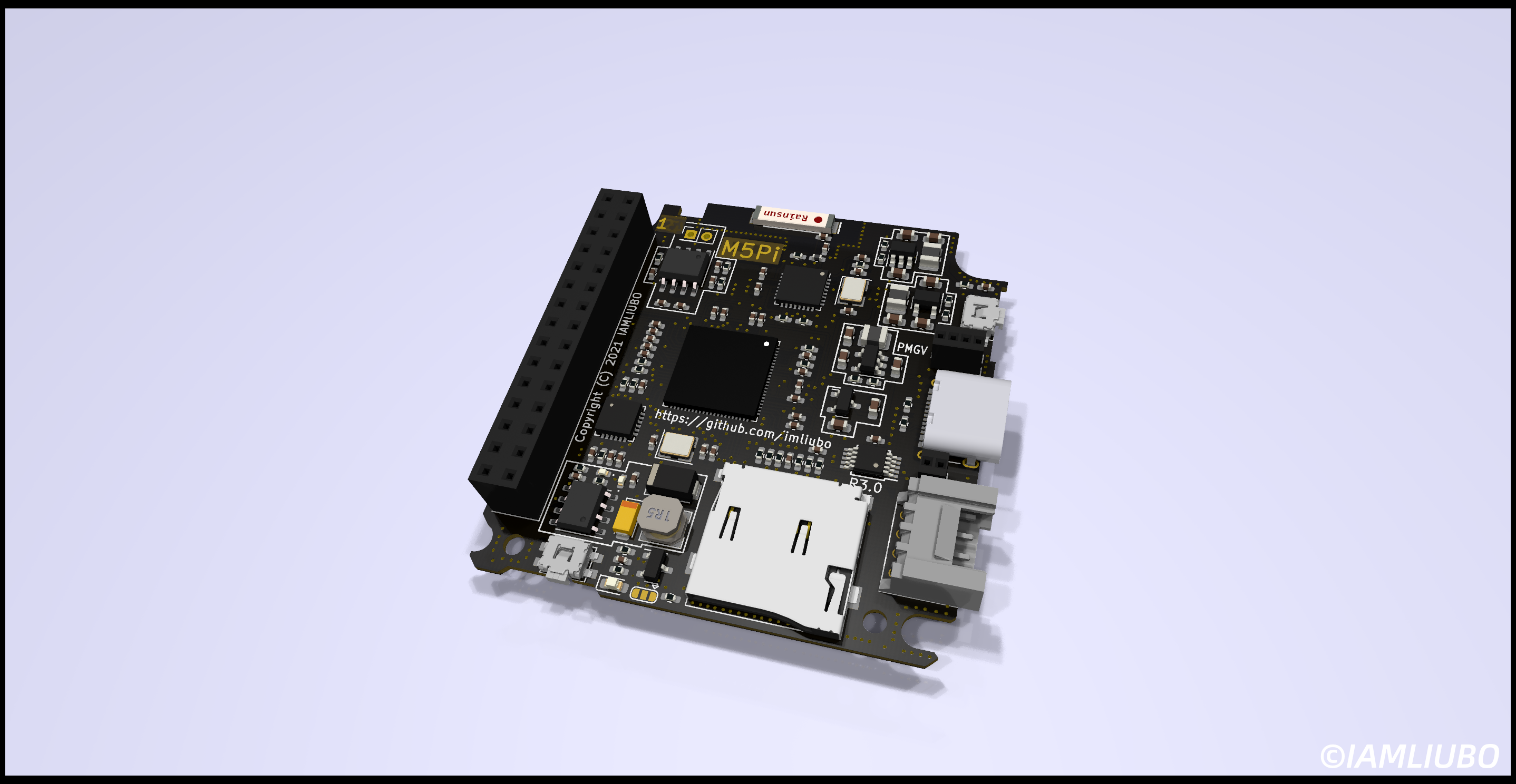

M5Pi is an open source Linux embedded development board, using Allwinner F1C200s CPU, and has a beautiful shell.
Please use the kicad-nightly version to open the projects.
Main components on the M5Pi-F1C100S/200S
M5Pi-F1C100S/200S bill of materials (BOM)
141 components, 60 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH340E | MSOP-10_3x3mm_P0.5mm | U1 |
| 1 | ESP8089 | QFN-32-1EP_5x5mm_P0.5mm_EP3.45x3.45mm | U2 |
| 1 | F1C100s | QFN-88_EP_10x10_Pitch0.4mm | U3 |
| 1 | MPU-6050 | InvenSense_QFN-24_4x4mm_P0.5mm | U4 |
| 1 | NS4158B | SOP-8_3.9x4.9mm_P1.27mm | U5 |
| 3 | SY8088AAC | SOT-23-5 | U6, U7, U8 |
| 1 | XC6206P302MR | SOT-23 | U9 |
| 1 | TP5400 | SOP-8_4.8x6.0mm_P1.27mm_EP2.3x3.2mm | U10 |
| 1 | Q_NMOS_GSD | SOT-23 | Q1 |
| 1 | 26Mhz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 24Mhz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | Micro_SD_Card | MicroSD_Socket_push | J1 |
| 1 | Conn_02x15_Odd_Even | PinHeader_2x15_P2.54mm_Vertical | J2 |
| 1 | Conn_01x02 | PinSocket_1x02_P1.27mm_Vertical | J3 |
| 1 | LCD_FPC_10P | TE_1-1734839-0_1x10-1MP_P0.5mm_Horizontal | J4 |
| 1 | TOUCH_FPC_8P | TE_0-1734839-8_1x08-1MP_P0.5mm_Horizontal | J5 |
| 1 | Speaker | PinHeader_2x01_P2.00mm_Vertical | J6 |
| 1 | Grove_Socket_4Pin | Grove_Socket_4Pin_2mm | J11 |
| 1 | Conn_01x04 | PinSocket_1x04_P1.27mm_Vertical | J12 |
| 1 | Antenna_2.4G | ANT-2.4GHZ-9.5X2.0MM | AE1 |
Show 40 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TBD | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | Ci1 |
| 1 | Fuse | Fuse_1206_3216Metric | F1 |
| 1 | Jumper_3_Open | SolderJumper-3_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1 |
| 1 | TBD | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | Ri1 |
| 2 | Button_Tortoise_4Pin | Button_4Pin_Tortoise | SW1, SW2 |
| 1 | L | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | TBD1 |
| 5 | TestPoint | TestPoint | TP1, TP2, TP3, TP4, TP5 |
| 1 | USB_C | USB_C_C393939 | UART1 |
| 1 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 2 | LED | LED_0402_1005Metric | D2, D3 |
| 1 | D | D-SMA(DO-214AC) | D4 |
| 1 | 1N5819 | D_SOD-123 | D5 |
| 3 | 2.2uH | L_1008_2520Metric | L1, L2, L3 |
| 1 | 10uH | L_Sunlord_SWPA4030S_4x4x3mm | L4 |
| 30 | 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1, C2, C6, C7, C8, C9, C10, C11 +22 |
| 6 | TBD | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C3, C4, C5, C25, C26, C57 |
| 1 | 10nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C16 |
| 1 | 2.2nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C18 |
| 6 | 10uF | C_0603_1608Metric | C31, C33, C34, C35, C38, C39 |
| 3 | 20pF | C_0603_1608Metric | C32, C36, C37 |
| 3 | 1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C40, C41, C46 |
| 2 | 1uF | C_0603_1608Metric | C42, C43 |
| 1 | 100uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C48 |
| 1 | 10uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C51 |
| 2 | 22uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C54, C55 |
| 1 | C_Polarized | CP_EIA-3216-10_Kemet-I | C56 |
| 1 | 1K | R_0402_1005Metric | R1 |
| 1 | 1.1K | R_0402_1005Metric | R2 |
| 4 | 2K2 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R3, R4, R9, R10 |
| 1 | 12K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R5 |
| 4 | 4.7K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R6, R7, R32, R37 |
| 14 | 10K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R8, R11, R12, R13, R14, R15, R16, R27 +6 |
| 3 | 49K9 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R17, R19, R36 |
| 1 | 3K3 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R18 |
| 1 | 5.1K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R20 |
| 1 | 680K | R_0402_1005Metric | R21 |
| 4 | 150K | R_0402_1005Metric | R22, R24, R25, R26 |
| 1 | 470K | R_0402_1005Metric | R23 |
| 2 | 200K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R30, R31 |
| 2 | TBD | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R34, R35 |
M5Pi-F1C100S/200S design files
The KiCad project lives in the imliubo/M5Pi repository on GitHub; these links point at the commit this page was built from.
M5Pi-F1C100S/200S: common questions
How big is the M5Pi-F1C100S/200S PCB?
The M5Pi-F1C100S/200S measures 47.5 × 50 mm, has 4 copper layers and is 0.725 mm thick.
How many components are on the M5Pi-F1C100S/200S?
141 components, from 60 distinct parts. The full bill of materials is listed on this page.
Where can I download the M5Pi-F1C100S/200S design files?
From the imliubo/M5Pi repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the M5Pi-F1C100S/200S design in my own project?
The repository has no license, so all rights stay with imliubo. Use it as a reference, and ask the author before reusing the design.
