PCSuperCombo PCB layout, top view — open source board by JayesonLS

About the PCSuperCombo PCB

PCSuperCombo is an open source PCB design by JayesonLS, published on GitHub under the MIT license. It is a 2-layer board measuring 123.3 × 95 mm, with 39 components from 22 distinct parts.

Other key parts include the C146583, 74HCT245, C386895, DS1315 and AS6C4008-55PCN. By type, the board carries 13 resistors, 10 ICs, 10 capacitors, 3 connectors, 1 crystal and 1 switch.

It belongs with the retro computing designs in this gallery.

From the project

ISA Card Designs for Use in Vintage PCs

ISA card designs for use in Vintage PCs.

Description: A template from which to build ISA cards. The board dimensions around the edge connector are from an early IBM PC Technical Reference Manual (5150 or 5160). The rear bracket positioning has been measured from an original IBM floppy controller taken from an IBM 5150. This board was an excellent fit when test-fitted in an early Tandy 1000 (25-1000).

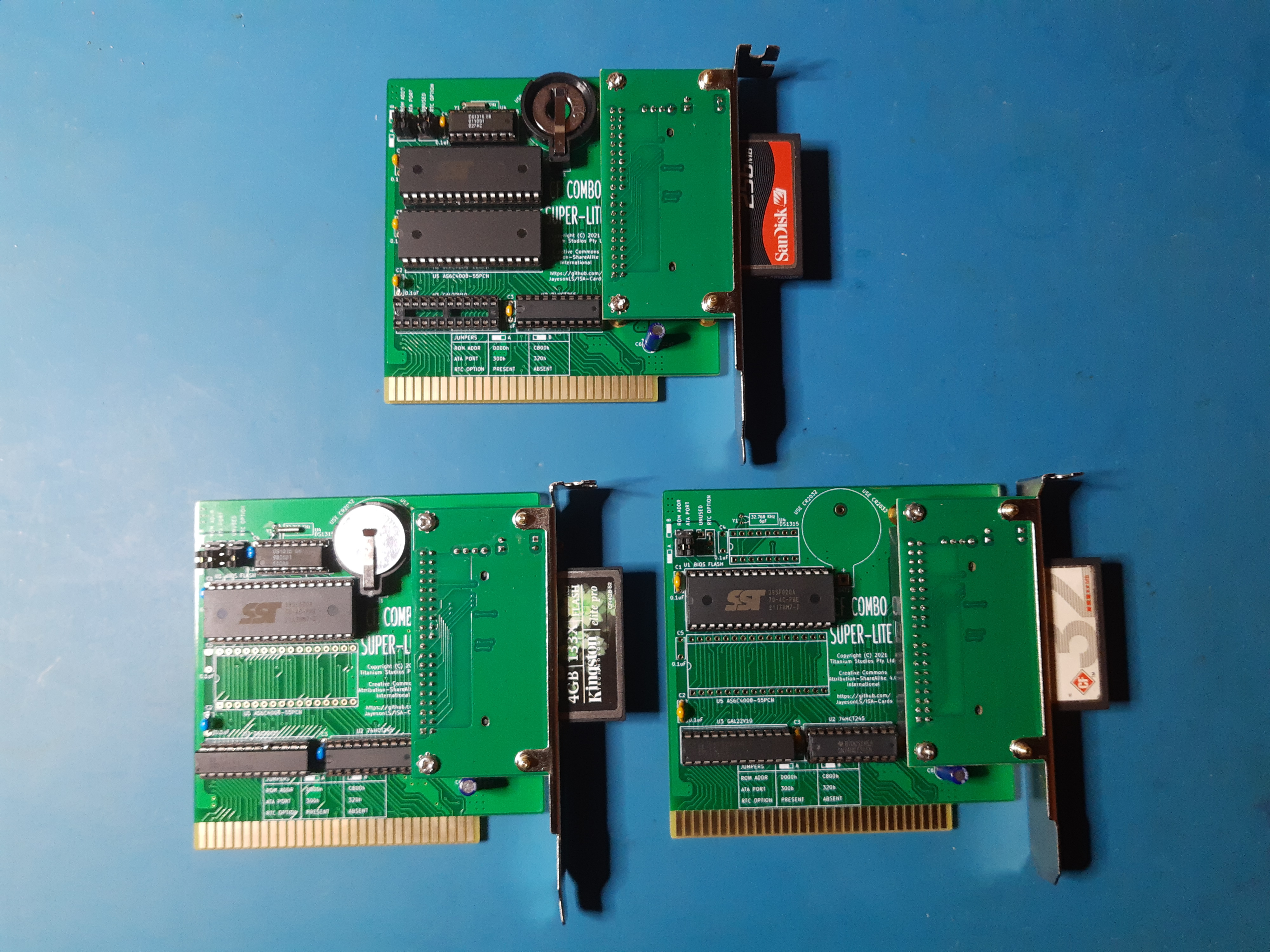

PCSuperCombo, from the project README
From the project README

Main components on the PCSuperCombo

C14658374HCT245C386895DS1315AS6C4008-55PCN16C550GD75232NGAL16V81.8432 MHz

PCSuperCombo bill of materials (BOM)

39 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C146583
BIOS FLASH
U1
1
74HCT245
U2
1
C386895
ATF/GAL16V8x-15
U3
1
DS1315
U4
1
AS6C4008-55PCN
AS6C1/4008-55PCN
U5
1
16C550
AS6C1/4008-55PCN
U6
1
GD75232N
ATF/GAL16V8x-15
U7
1
GAL16V8
16C550
U8
1
GAL16V8
GD75232
U9
1
1.8432 MHz
U10
1
C182062
32.768 KHz
Y1
1
IDE_CONNECTOR
J1
1
CF Adapter Power
J2
1
LED
J4
1
CR2032
BAT1
1
SW_DIP_X10
Options
SW1
8
0.1UF
0.1uF
C1, C2, C3, C4, C5, C6, C7, C8
2
0.1UF
10uf 16v
C9, C10
7
10K
R1, R2, R3, R4, R5, R6, R7
2
10K
R8, R9
Show 2 more
QtyPartRefs
2
0R
R10, R11
2
180R
R12, R13

PCSuperCombo design files

The KiCad project lives in the JayesonLS/ISA-Cards repository on GitHub; these links point at the commit this page was built from.

PCSuperCombo: common questions

How big is the PCSuperCombo PCB?

The PCSuperCombo measures 123.3 × 95 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCSuperCombo?

39 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PCSuperCombo design files?

From the JayesonLS/ISA-Cards repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the PCSuperCombo design in my own project?

Yes, under the terms of its MIT license, which JayesonLS chose for the repository.
