The-Mesh3310-Project
About the The-Mesh3310-Project PCB

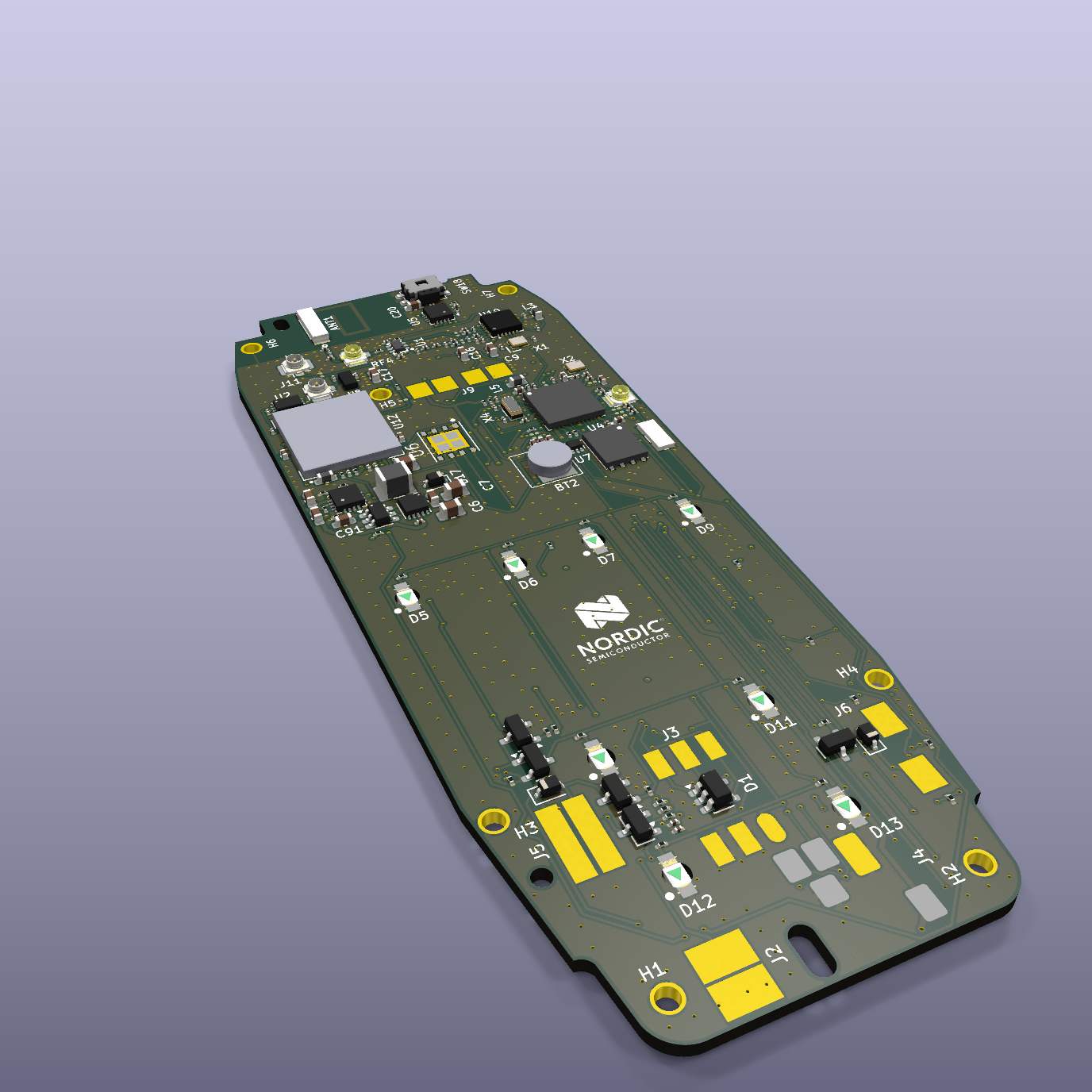

The-Mesh3310-Project is an open source Nordic nRF PCB design by JDJelectronics, published on GitHub under the MIT license. It is a 6-layer board measuring 41.4 × 108 mm, with 165 components from 93 distinct parts.
Its main chip is the nRF9151-LAXX, from the Nordic nRF family. Other key parts include the TPE4259-63, MX25R1635FZUIH0, BQ24074RGT, MX25R1635FZNIH0 and MAX98357A. By type, the board carries 66 capacitors, 45 resistors, 13 inductors, 12 ICs, 12 diodes and 5 transistors.
It belongs with the iot & wireless, audio and rf & radio designs in this gallery.
From the project
Make the worlds strongest Node
The goal is to turn this indestructible icon into a rugged, long-range mesh networking node that runs Meshtastic and MeshCore.
Next steps: order the first prototypes, tune the RF matching networks and start firmware bring-up.
- Hardware engineering: review the schematic and layout, and help with RF tuning. - Firmware development: port Meshtastic/MeshCore to the legacy LCD and keypad matrix. - Mechanical design: check the fit in original and replacement shells, and design internal 3D-printed parts.
Main components on the The-Mesh3310-Project
The-Mesh3310-Project bill of materials (BOM)
165 components, 93 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPE4259-63 | SOT-363-6_L2.0-W1.3-P0.65-LS2.1-BL | U1 |
| 1 | MX25R1635FZUIH0 | Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm | U2 |
| 1 | BQ24074RGT | VQFN-16-1EP_3x3mm_P0.5mm_EP1.6x1.6mm | U3 |
| 1 | MX25R1635FZNIH0 | SON127P500X600X80-9N | U4 |
| 1 | MAX98357A | TQFN-16-1EP_3x3mm_P0.5mm_EP1.23x1.23mm | U5 |
| 1 | USBLC6-2P6 | SOT-666 | U7 |
| 1 | SKY65723-81 | SKY65723-81 | U8 |
| 1 | 700-MAX16054AZTT MAX16054 | TSOT-23-6 | U9 |
| 1 | SX1262IMLTRT | QFN-24_L4.0-W4.0-P0.50-BL-EP2.6 | U10 |
| 1 | nRF9151-LAXX | XCVR_NRF9151-LACA-R7 | U12 |
| 1 | NRF52840-QIAA-R | XCVR_NRF52840-QIAA-R | U13 |
| 1 | 595-TPS63031DSKR TPS63031DSK | WSON-10-1EP_2.5x2.5mm_P0.5mm_EP1.2x2mm | U14 |
| 1 | BC847 | SOT-23 | Q1 |
| 3 | 771-BSS138P215 BSS138 | SOT-23 | Q4, Q5, Q7 |
| 1 | 942-IRLML6401TRPBF IRLML6401 | SOT-23 | Q6 |
| 2 | S201632M10PF10PPM 32MHz | CRYSTAL-SMD_4P-L2.0-W1.6-BL | X1, X2 |
| 1 | 32.768KHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | X4 |
| 1 | Sim/Pad | 3310_sim | J3 |
| 1 | Conn_01x05_Pin | 3310_dc | J4 |
| 1 | LTE antenne: U.FL -> flexantenne (bv. Taoglas FXUB63) | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J8 |
Show 73 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GNSS antenne (U.FL) | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J11 |
| 1 | 0868AT43A0020E | XCVR_0868AT43A0020E | ANT1 |
| 1 | 2450AT42E0100001E | 2450AT42E0100001E | ANT2 |
| 2 | A-IPEX1-1.25A | IPEX-SMD_3P-L2.6-W2.6-LS3.0_RF1200001R | RF3, RF4 |
| 1 | 667-EVQ-PUA02K POWER ON/OFF | SIDE PUSH 2.2NF 4.7x3.2x1.65mm | SW18 |
| 1 | SP0504BAHT | SOT-23-5 | D1 |
| 3 | 726-BAT60AE6327HTSA1 BAT60A | D_SOD-323 | D4, D8, D17 |
| 8 | 743-IN-S124ARUR RED | 3310_led | D5, D6, D7, D9, D10, D11, D12, D13 |
| 1 | 120R@100MHz 1A | L_0603_1608Metric | FB1 |
| 1 | 3.3nH | L_0201_0603Metric | L1 |
| 1 | 963-LBC3225T1R5MR 1u5 | L_1210_3225Metric | L2 |
| 1 | 15uH | L_0603_1608Metric | L3 |
| 1 | 1.5nH | L_0201_0603Metric | L4 |
| 1 | 10uH | L_0603_1608Metric | L5 |
| 2 | 15nH | L_0201_0603Metric | L6, L13 |
| 1 | 0 | L_0201_0603Metric | L15 |
| 1 | 47nH | L_0201_0603Metric | L16 |
| 1 | 2.5nH | L_0201_0603Metric | L17 |
| 1 | 4.7nH | L_0201_0603Metric | L18 |
| 1 | 8.2nH | L_0201_0603Metric | L19 |
| 7 | 100nF | C_0201_0603Metric | C1, C13, C34, C41, C48, C58, C69 |
| 6 | 0.1u | C_0201_0603Metric | C2, C4, C10, C12, C33, C43 |
| 2 | 4.7u | C_0402_1005Metric | C3, C8 |
| 5 | 810-CGA2B3X7R1H104KB 100n | C_0201_0603Metric | C5, C14, C18, C21, C27 |
| 2 | 581-TAJB106K010SNJ 22uF/10V | C_0805_2012Metric | C6, C7 |
| 1 | 1uF | C_0603_1608Metric | C9 |
| 2 | 15p | C_0201_0603Metric | C11, C26 |
| 1 | 810-CGA2B3X7R1H104KB 33pF | C_0201_0603Metric | C15 |
| 1 | 581-TAJB106K010SNJ 10uF/10V | C_0603_1608Metric | C16 |
| 1 | 74-293D476X9010B2TE3 22uF/6.3V | C_0603_1608Metric | C17 |
| 1 | 470nF | C_0201_0603Metric | C19 |
| 2 | 810-CGA2B3X7R1H104KB 10uF/10V | C_0603_1608Metric | C20, C92 |
| 2 | 15pF | C_0201_0603Metric | C22, C29 |
| 1 | 47uF/6.3V | C_0805_2012Metric | C28 |
| 1 | 2.0pF | C_0201_0603Metric | C30 |
| 2 | 12pF | C_0201_0603Metric | C31, C32 |
| 6 | 2.2uF | C_0402_1005Metric | C35, C37, C39, C40, C47, C50 |
| 1 | 1uF | C_0402_1005Metric | C36 |
| 2 | 47nF | C_0201_0603Metric | C38, C76 |
| 1 | 100pF | C_0201_0603Metric | C45 |
| 1 | 820pF | C_0201_0603Metric | C46 |
| 2 | 10pF | C_0201_0603Metric | C70, C71 |
| 2 | 1.8pF | C_0201_0603Metric | C75, C84 |
| 1 | 47pF | C_0201_0603Metric | C77 |
| 1 | 2.4pF | C_0201_0603Metric | C78 |
| 1 | 3pF | C_0201_0603Metric | C81 |
| 1 | 5.6pF | C_0201_0603Metric | C82 |
| 1 | 39pF | C_0201_0603Metric | C83 |
| 2 | 1nF | C_0201_0603Metric | C85, C86 |
| 2 | 3.6pF | C_0201_0603Metric | C87, C88 |
| 1 | 810-CGA2B3X7R1H104KB 1uF/25V | C_0603_1608Metric | C89 |
| 2 | 810-CGA2B3X7R1H104KB 4.7uF/10V | C_0603_1608Metric | C90, C91 |
| 2 | NC (afstemmen) | C_0201_0603Metric | C93, C94 |
| 5 | 0 | R_0201_0603Metric | R3, R10, R28, R57, R58 |
| 1 | 603-RC0402JR-7D10KL 1k | R_0201_0603Metric | R4 |
| 1 | 603-RC0402JR-7D10KL 1.8k | R_0201_0603Metric | R5 |
| 2 | 0R | R_0201_0603Metric | R6, R61 |
| 2 | 603-RC0402JR-7D10KL 10k | R_0201_0603Metric | R7, R11 |
| 1 | 33R | R_0201_0603Metric | R8 |
| 1 | 603-RC0402JR-13100KL 2.2k | R_0201_0603Metric | R9 |
| 1 | RES-100K-1%-02-0402 10k | R_0201_0603Metric | R12 |
| 2 | RES-1K-5%-0402 1k | R_0201_0603Metric | R13, R29 |
| 1 | RES-100K-1%-02-0402 1M | R_0201_0603Metric | R14 |
| 4 | 603-RC0402JR-13100KL 100k | R_0201_0603Metric | R15, R17, R20, R51 |
| 1 | 667-ERJ-2GEJ560X 56R | R_0201_0603Metric | R16 |
| 8 | 652-CR0402JW-473GLF 47k | R_0201_0603Metric | R18, R31, R32, R33, R34, R35, R59, R60 |
| 8 | 667-ERJ-2GEJ560X 150R | R_0201_0603Metric | R19, R21, R22, R23, R24, R25, R26, R27 |
| 1 | 603-RC0402JR-13100KL 10k | R_0201_0603Metric | R30 |
| 1 | 603-RC0402JR-13100KL 220k | R_0201_0603Metric | R36 |
| 1 | 667-ERJ-2GEJ560X 100k | R_0201_0603Metric | R37 |
| 1 | 667-ERJ-2GEJ560X 0 | R_0201_0603Metric | R38 |
| 2 | 100 | R_0201_0603Metric | R44, R45 |
| 1 | 603-AF0402JR-071KL 1k | R_0201_0603Metric | R52 |
The-Mesh3310-Project design files
The KiCad project lives in the JDJelectronics/The-Mesh3310-Project repository on GitHub; these links point at the commit this page was built from.
The-Mesh3310-Project: common questions
What microcontroller does the The-Mesh3310-Project use?
The The-Mesh3310-Project is built around the nRF9151-LAXX, from the Nordic nRF family.
How big is the The-Mesh3310-Project PCB?
The The-Mesh3310-Project measures 41.4 × 108 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the The-Mesh3310-Project?
165 components, from 93 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the The-Mesh3310-Project design files?
From the JDJelectronics/The-Mesh3310-Project repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the The-Mesh3310-Project design in my own project?
Yes, under the terms of its MIT license, which JDJelectronics chose for the repository.
Can I test firmware for the The-Mesh3310-Project without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
