Five Pulser
About the Five Pulser PCB
Five Pulser is an open source STM32 PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 39.4 × 78.7 mm, with 47 components from 33 distinct parts.
Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the AMS1117-3.3 and TL072. By type, the board carries 24 resistors, 10 capacitors, 5 connectors, 5 diodes and 3 ICs.
It belongs with the audio designs in this gallery.
From the project
modular analog synthesizer for a.p.

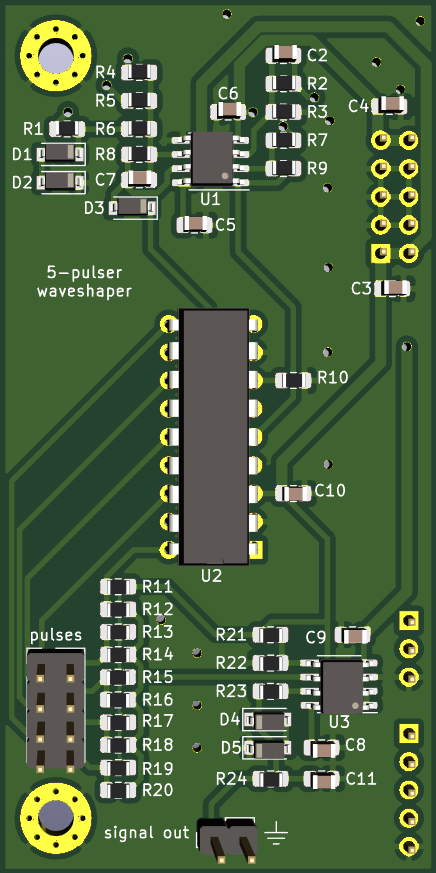

Small aux waveshaper pcb intended to be used with the oscillator carrier boards.
The 5-pulser is a unique pulse shaper that takes in sloping wave inputs and outputs a stream of between 1 and 5 pulses. The typical input is sawtooth waves.
Main components on the Five Pulser
Five Pulser bill of materials (BOM)
47 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-3.3 TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | STM32F405RGT6 LM3914 | DIP-18_W7.62mm | U2 |
| 1 | TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | signal_in | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 1 | CV_in | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical | J3 |
| 1 | signal_out | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 1 | pulses | PinHeader_2x04_P2.54mm_Vertical | J5 |
| 1 | B5819W 1N4148W | D_SOD-123 | D1 |
| 1 | C2286 5v1 | D_SOD-123 | D2 |
| 1 | C72043 1N4148W | D_SOD-123 | D3 |
| 2 | 5v1 | D_SOD-123 | D4, D5 |
| 1 | 100NF 10pF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C2 |
| 1 | 100NF 10uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C3 |
| 1 | 10UF 10uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4 |
| 1 | 10NF 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C5 |
| 4 | 100NF 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C6, C7, C9, C10 |
| 1 | 10UF 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C8 |
| 1 | 100NF 10nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C11 |
| 1 | 2K2 3k9 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10K 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R2 |
| 1 | 2K2 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R3 |
| 1 | 10K 120k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R4 |
| 1 | 100 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R5 |
| 2 | 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R6, R7 |
| 1 | 39k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R8 |
| 6 | 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R9, R11, R13, R15, R17, R19 |
| 1 | 5k6 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R10 |
| 1 | 120k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R12 |
| 4 | 150k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R14, R16, R18, R20 |
| 2 | 3k9 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R21, R23 |
| 1 | 22k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R22 |
| 1 | 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R24 |
Five Pulser design files
The KiCad project lives in the JordanAceto/angelo_modular repository on GitHub; these links point at the commit this page was built from.
Five Pulser: common questions
What microcontroller does the Five Pulser use?
The Five Pulser is built around the STM32F405RGT6, from the STM32 family.
How big is the Five Pulser PCB?
The Five Pulser measures 39.4 × 78.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Five Pulser?
47 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Five Pulser design files?
From the JordanAceto/angelo_modular repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Five Pulser design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
Can I test firmware for the Five Pulser without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
