Optical phasor plug in board

JordanAceto·angelo_modular·pcb_docs/optical_phasor_plug_in_board/kicad_docs/optical_phasor_plug_in_board.kicad_pcb

Optical phasor plug in board layout, top view — open source STM32 board by JordanAceto
Simulate this board

About the Optical phasor plug in board

Optical phasor plug in board is an open source STM32 PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 58.4 × 50.8 mm, with 89 components from 43 distinct parts.

Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the AMS1117-3.3, RC4558 and TL072. By type, the board carries 48 resistors, 20 capacitors, 6 ICs, 5 transistors, 4 connectors and 3 diodes.

It belongs with the audio designs in this gallery.

From the project

modular analog synthesizer for a.p.

Small 6 stage optical phase shifter PCB, designed to plug into a larger motherboard.

The main circuit is based on the famous Mutron phasor circuit with the addition of voltage controlled feedback. This PCB includes the audio path and CV inputs for frequency and feedback, but does not include any modulation sources.

The intended use for this board is to plug in to a larger motherboard which contains slots for two of these phasor boards, as well as modulation sources, panel controls, and input/output routing. This motherboard could accept different filter boards sharing this footprint and…

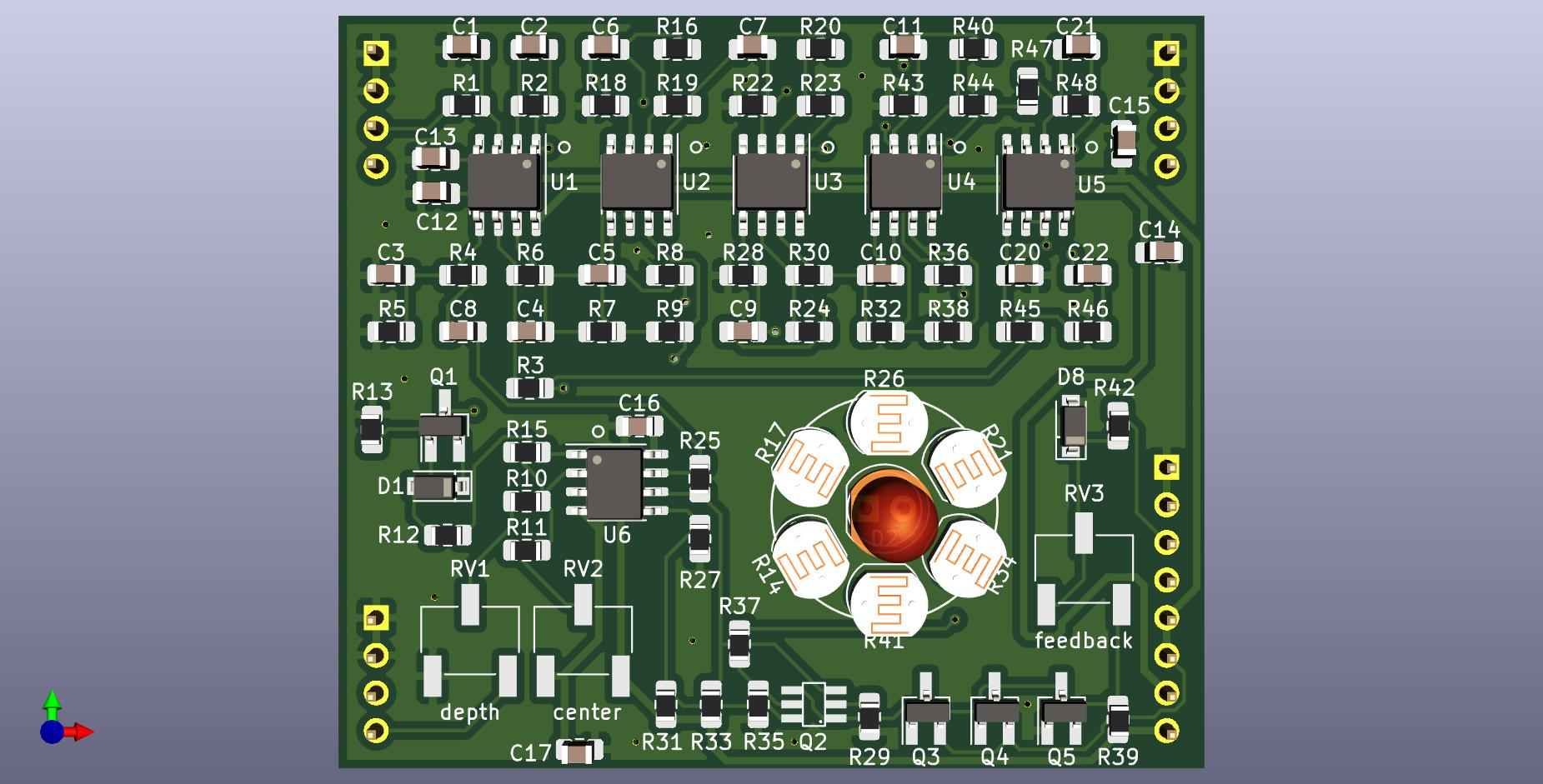

Optical phasor plug in board, from the project README
From the project README

Main components on the Optical phasor plug in board

AMS1117-3.3STM32F405RGT6RC4558TL072

Optical phasor plug in board bill of materials (BOM)

89 components, 43 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
RC4558
U1
1
STM32F405RGT6
RC4558
U2
3
RC4558
U3, U4, U5
1
TL072
U6
2
MMBT3906
Q1, Q5
1
BCM847DS135
Q2
2
MMBT3904
Q3, Q4
3
Conn_01x04_Male
J1, J2, J3
1
Conn_01x08_Male
J4
1
10k
RV1
1
100k
RV2
1
50k
RV3
1
B5819W
1N914
D1
1
C2286
green_diffused
D2
1
1N5225B
D8
1
10UF
33pF
C1
4
100NF
100nF
C2, C12, C13, C14
1
100NF
3n3
C3
1
10UF
1nF
C4
1
10NF
6n8
C5
Show 23 more
QtyPartRefs
5
100NF
6n8
C6, C7, C9, C10, C11
1
10UF
470nF
C8
2
2.2UF
100nF
C15, C16
1
12PF
100nF
C17
1
470pF
C20
1
1n
C21
1
220nF
C22
1
2K2
3k9
R1
1
10K
390k
R2
1
2K2
4k7
R3
1
10K
8k2
R4
1
100
220k
R5
16
4k7
R6, R7, R9, R16, R19, R20, R23, R24 +8
8
220k
R8, R18, R22, R25, R27, R28, R36, R43
4
???
R10, R11, R13, R15
1
10k
R12
6
LDR
R14, R17, R21, R26, R34, R41
2
220R
R29, R35
2
47k
R31, R33
1
100k
R37
1
680k
R39
1
7k5
R42
1
12k
R45

Optical phasor plug in board design files

The KiCad project lives in the JordanAceto/angelo_modular repository on GitHub; these links point at the commit this page was built from.

Optical phasor plug in board: common questions

What microcontroller does the Optical phasor plug in board use?

The Optical phasor plug in board is built around the STM32F405RGT6, from the STM32 family.

How big is the Optical phasor plug in board?

The Optical phasor plug in board measures 58.4 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Optical phasor plug in board?

89 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Optical phasor plug in board design files?

From the JordanAceto/angelo_modular repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Optical phasor plug in board design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.

Can I test firmware for the Optical phasor plug in board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
