About the Oscillator Carrier Board
Oscillator Carrier Board is an open source PCB design by JordanAceto, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 99.1 × 99.1 mm, with 34 components from 21 distinct parts.
Other key parts include the AMS1117-3.3. By type, the board carries 13 connectors, 7 resistors, 4 capacitors, 2 test points, 1 IC and 1 switch.
It belongs with the dev boards & breakouts and audio designs in this gallery.
From the project
modular analog synthesizer for a.p.

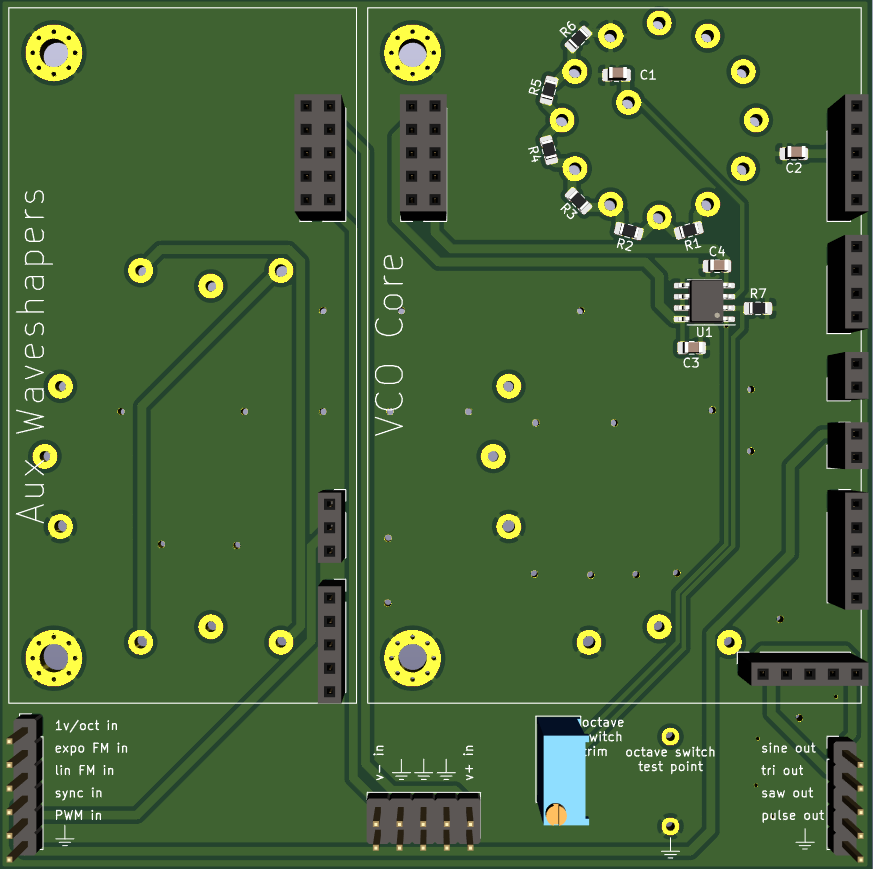

Motherboard pcb for oscillators. Contains a port for a VCO core and a port for auxilliary waveshapers, and an octave switch.

Main components on the Oscillator Carrier Board
Oscillator Carrier Board bill of materials (BOM)
34 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AMS1117-3.3 TL072 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 1 | Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | power_header | PinHeader_2x05_P2.54mm_Vertical | J3 |
| 1 | Conn_01x04 | PinSocket_1x04_P2.54mm_Vertical | J4 |
| 2 | Conn_01x02 | PinSocket_1x02_P2.54mm_Vertical | J5, J6 |
| 3 | Conn_01x05 | PinSocket_1x05_P2.54mm_Vertical | J7, J10, J11 |
| 2 | power_header | PinSocket_2x05_P2.54mm_Vertical | J8, J13 |
| 1 | to_VCO_board | PinSocket_1x05_P2.54mm_Vertical | J9 |
| 1 | Conn_01x03 | PinSocket_1x03_P2.54mm_Vertical | J12 |
| 5 | 100k | alpha_RV24AF-40 | RV1, RV2, RV3, RV4, RV5 |
| 1 | 50k | Potentiometer_Bourns_3296W_Vertical | RV6 |
| 1 | octave_switch | apha_SR2612F-0112 | SW1 |
| 2 | TestPoint | TestPoint_Keystone_5000-5004_Miniature | TP1, TP2 |
| 2 | 10UF 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C4 |
| 2 | 100NF 100nF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C2, C3 |
| 2 | 2K2 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R1, R3 |
| 2 | 10K 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R2, R4 |
| 1 | 100 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R5 |
| 1 | 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R6 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 68k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R7 |
Oscillator Carrier Board design files
The KiCad project lives in the JordanAceto/angelo_modular repository on GitHub; these links point at the commit this page was built from.
Oscillator Carrier Board: common questions
How big is the Oscillator Carrier Board?
The Oscillator Carrier Board measures 99.1 × 99.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Oscillator Carrier Board?
34 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Oscillator Carrier Board design files?
From the JordanAceto/angelo_modular repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Oscillator Carrier Board design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which JordanAceto chose for the repository.
