Iridium drone
About the Iridium drone PCB

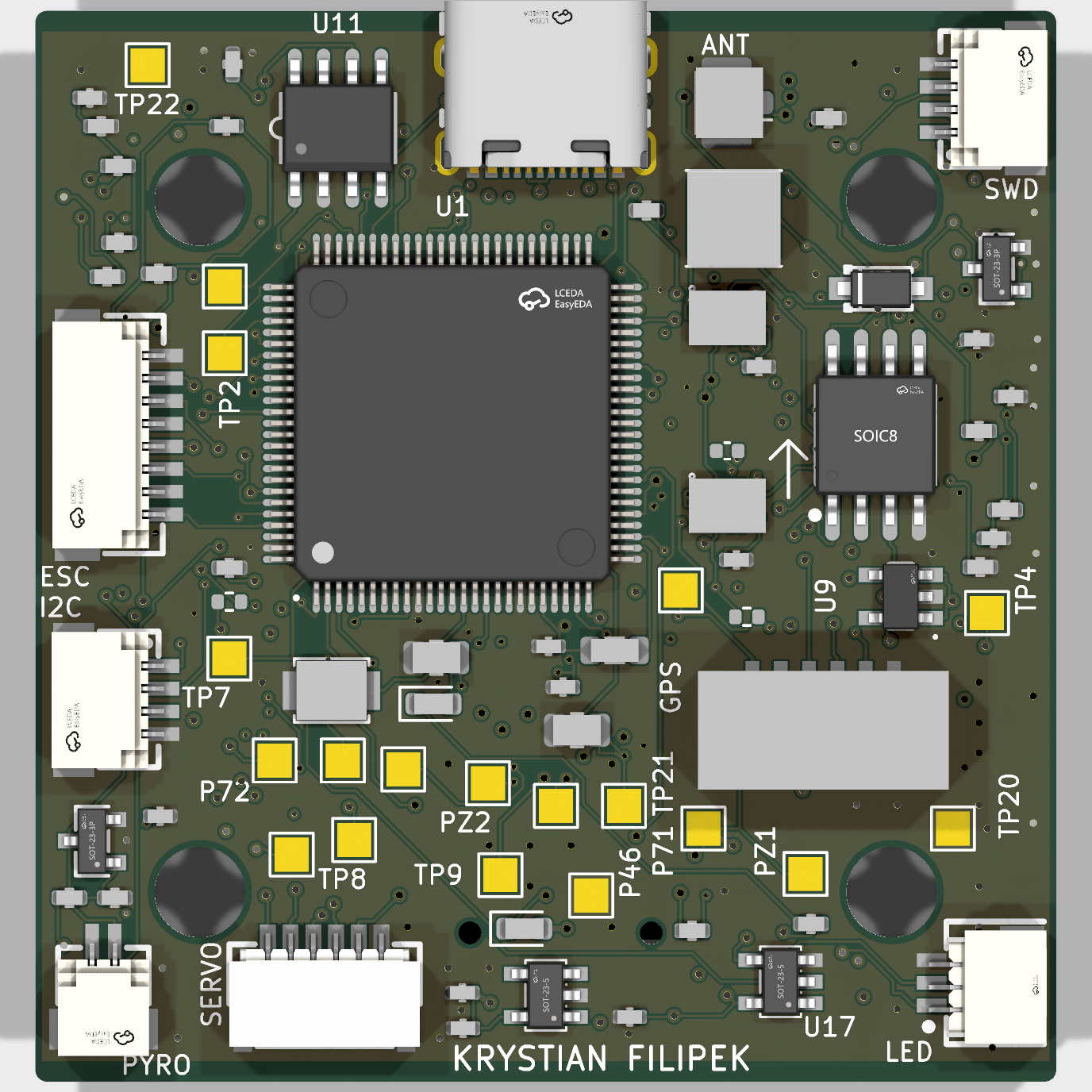

Iridium drone is an open source STM32 PCB design by kfilipekk, published on GitHub. It is a 6-layer board measuring 45 × 47.2 mm, with 168 components from 72 distinct parts.
Its main chip is the STM32H743VIT6, from the STM32 family. Other key parts include the ICM-42688-P, ICM-42605, MS5611, W25Q128JVSIQ and LMR33630A. By type, the board carries 68 capacitors, 50 resistors, 16 ICs, 16 connectors, 5 diodes and 4 transistors.
It belongs with the robotics & motion, rf & radio and power & battery designs in this gallery.
From the project
A 45 × 47.2 mm, 6-layer STM32H743 flight controller designed for navigation in GPS-denied environments via satellite signals of opportunity (SoOP), with native support for standard ArduPilot multirotors and TVC rocket lander avionics.
A 45 × 47.2 mm, 6-layer STM32H743 flight controller designed for navigation in GPS-denied environments via satellite signals of opportunity (SoOP), with native support for standard ArduPilot multirotors and TVC rocket lander avionics.
Autonomous UAVs lose navigation when GPS is degraded or jammed. Optical flow and visual-inertial odometry provide relative velocity and short-term positioning, but accumulate unbounded integration drift over long trajectories.
Main components on the Iridium drone
Iridium drone bill of materials (BOM)
168 components, 72 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32H743VIT6 | LQFP-100_L14.0-W14.0-P0.50-LS16.0-BL | U1 |
| 1 | ICM-42688-P | LGA-14_L3.0-W2.5-P0.50-TL | U2 |
| 1 | ICM-42605 | LGA-14_L3.0-W2.5-P0.50-TL | U3 |
| 1 | MS5611 | SENSORS-SMD_MS5611-01BA03 | U4 |
| 1 | W25Q128JVSIQ | SOIC-8_L5.3-W5.3-P1.27-LS8.0-BL | U5 |
| 2 | LMR33630A | VQFN-12_L3.0-W2.0-P0.65-BL_TI_RNX | U8, U20 |
| 1 | AP2112K-3.3 | SOT-25-5_L2.9-W1.6-P0.95-LS2.8-BL | U9 |
| 1 | TLV75533 | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | U10 |
| 1 | SN65HVD230 | SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL | U11 |
| 1 | USBLC6-2SC6 | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BL | U12 |
| 1 | MAX2112 | TQFN-28_L5.0-W5.0-P0.50-BL-EP3.3 | U13 |
| 1 | OPA2374 | SOP-8_L4.9-W3.9-P1.27-LS6.0-BL | U14 |
| 1 | 74LVC1G17 | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | U17 |
| 1 | TMP119 | DSBGA-6_L1.5-W1.0-R2-C3-P0.40-BL | U19 |
| 1 | XC6206P332MR | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | U21 |
| 3 | AO3400A | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | Q1, Q3, Q5 |
| 1 | WST4041 | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | Q4 |
| 1 | 8MHZ 8MHz | CRYSTAL-SMD_4P-L3.2-W2.5-BL | Y1 |
| 1 | C5563878 25MHz TCXO | OSC-SMD_4P-L3.2-W2.5-BL | Y2 |
| 1 | C2765186 USB-C | USB-C-SMD_TYPE-C-16PIN-2MD-073 | J1 |
Show 52 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C160407 ESC 8P | CONN-TH_SM08B-SRSS-TB-LF-SN | J2 |
| 1 | GPS+I2C | CONN-SMD_XY-SM06B-GHS-TB | J3 |
| 1 | C160404 RC IN | CONN-SMD_4P-P1.00_SM04B-SRSS-TB-LF-SN | J5 |
| 1 | C160404 CAN 4P | CONN-SMD_4P-P1.00_SM04B-SRSS-TB-LF-SN | J6 |
| 1 | C91145 microSD | TF-SMD_TF-01A | J8 |
| 1 | C160404 I2C 4P | CONN-SMD_4P-P1.00_SM04B-SRSS-TB-LF-SN | J9 |
| 1 | C160404 SERIAL2 4P | CONN-SMD_4P-P1.00_SM04B-SRSS-TB-LF-SN | J11 |
| 1 | C5137195 U.FL ANT | U.FL_Hirose_U.FL-R-SMT-1_Vertical | J12 |
| 1 | C53055322 FLOW 6P | CONN-SMD_SH1.0MM-6P-WT | J14 |
| 1 | C53055319 LED 3P | CONN-SMD_3P-P1.00_SH1.0MM-3P-WT | J15 |
| 1 | C160402 BUZZ 2P | CONN-SMD_2P-P1.00_SM02B-SRSS-TB-LF-SN | J16 |
| 1 | C53055322 SERVO 6P | CONN-SMD_SH1.0MM-6P-WT | J17 |
| 1 | C160402 PYRO 2P | CONN-SMD_2P-P1.00_SM02B-SRSS-TB-LF-SN | J18 |
| 1 | C160404 SWD 4P | CONN-SMD_4P-P1.00_SM04B-SRSS-TB-LF-SN | J19 |
| 1 | C160402 TOUCH 2P | CONN-SMD_2P-P1.00_SM02B-SRSS-TB-LF-SN | J20 |
| 1 | BZT52C15 | SOD-123_L2.7-W1.6-LS3.7-RD | DZ1 |
| 1 | C14165 3A | Fuse_1206_3216Metric | F1 |
| 1 | C231329 BOOT | SW_SPST_B3U-1000P | SW1 |
| 1 | C231329 RESET | SW_SPST_B3U-1000P | SW2 |
| 1 | SMBJ22A | SMB_L4.6-W3.6-LS5.3-RD | D1 |
| 1 | C965807 BLUE | LED_0603_1608Metric | D2 |
| 1 | C965804 GREEN | LED_0603_1608Metric | D3 |
| 2 | 1N4148W | SOD-123F_L2.7-W1.6-LS3.8-RD | D4, D5 |
| 1 | C18305 600R@100MHz | L_0805_2012Metric | L1 |
| 2 | 10UH 10uH | L_APV_ANR4030 | L2, L5 |
| 30 | 100N 100n | C_0402_1005Metric | C1, C2, C3, C4, C5, C10, C12, C14 +22 |
| 2 | 4U7 4u7 | C_0805_2012Metric | C6, C7 |
| 3 | 2U2 2u2 | C_0402_1005Metric | C8, C9, C29 |
| 11 | 1u | C_0402_1005Metric | C11, C13, C26, C27, C28, C51, C67, C75 +3 |
| 2 | 30P 30p | C_0402_1005Metric | C15, C16 |
| 2 | 10U 10u | C_1206_3216Metric | C17, C18 |
| 4 | 22U 22u | C_1206_3216Metric | C22, C23, C69, C70 |
| 1 | 1u | C_0805_2012Metric | C42 |
| 1 | 10U 10u | C_0805_2012Metric | C45 |
| 4 | 100P 100p | C_0402_1005Metric | C52, C56, C76, C77 |
| 3 | 10N 10n | C_0402_1005Metric | C58, C73, C87 |
| 2 | 47N 47n | C_0402_1005Metric | C61, C63 |
| 3 | 1n | C_0402_1005Metric | C81, C84, C86 |
| 11 | 10K 10k | R_0402_1005Metric | R1, R14, R39, R45, R48, R49, R50, R51 +3 |
| 5 | 100K 100k | R_0402_1005Metric | R4, R6, R40, R42, R46 |
| 2 | 22K 22k | R_0402_1005Metric | R5, R41 |
| 2 | 24K9 24k9 | R_0402_1005Metric | R7, R43 |
| 9 | 4K7 4k7 | R_0402_1005Metric | R9, R10, R11, R12, R31, R36, R37, R47 +1 |
| 1 | 120R | R_0402_1005Metric | R15 |
| 2 | 5K1 5k1 | R_0402_1005Metric | R16, R17 |
| 1 | 10K 10k | R_0603_1608Metric | R18 |
| 5 | 1k | R_0402_1005Metric | R19, R20, R21, R35, R54 |
| 7 | 47K 47k | R_0402_1005Metric | R22, R23, R24, R25, R26, R27, R55 |
| 2 | C17168 0R | R_0402_1005Metric | R28, R29 |
| 1 | 330R | R_0402_1005Metric | R34 |
| 1 | 100R | R_0402_1005Metric | R38 |
| 1 | 470R | R_0402_1005Metric | R57 |
Iridium drone design files
The KiCad project lives in the kfilipekk/iridium_drone repository on GitHub; these links point at the commit this page was built from.
Iridium drone: common questions
What microcontroller does the Iridium drone use?
The Iridium drone is built around the STM32H743VIT6, from the STM32 family.
How big is the Iridium drone PCB?
The Iridium drone measures 45 × 47.2 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the Iridium drone?
168 components, from 72 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Iridium drone design files?
From the kfilipekk/iridium_drone repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Iridium drone design in my own project?
The repository has no license, so all rights stay with kfilipekk. Use it as a reference, and ask the author before reusing the design.
