DC line module+Meter probe layout, top view — open source board by kwiecinski

About the DC line module+Meter probe

DC line module+Meter probe is an open source PCB design by kwiecinski, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 98 components from 35 distinct parts.

Other key parts include the 74HC14, CA56-12SURKWA, ST485EBDR, AMS1117-5.0 and 74HC595. By type, the board carries 38 resistors, 21 transistors, 16 ICs, 11 capacitors, 8 connectors and 4 diodes.

It belongs with the iot & wireless, power & battery and sensors designs in this gallery.

From the project

Project contains BMS for lead-acid batteries and ESP-based board used to pull information from EASUN offgrid inverter, energy meters and sensors. It show informations od displays and use ESPhome to send it to Home Assistant..

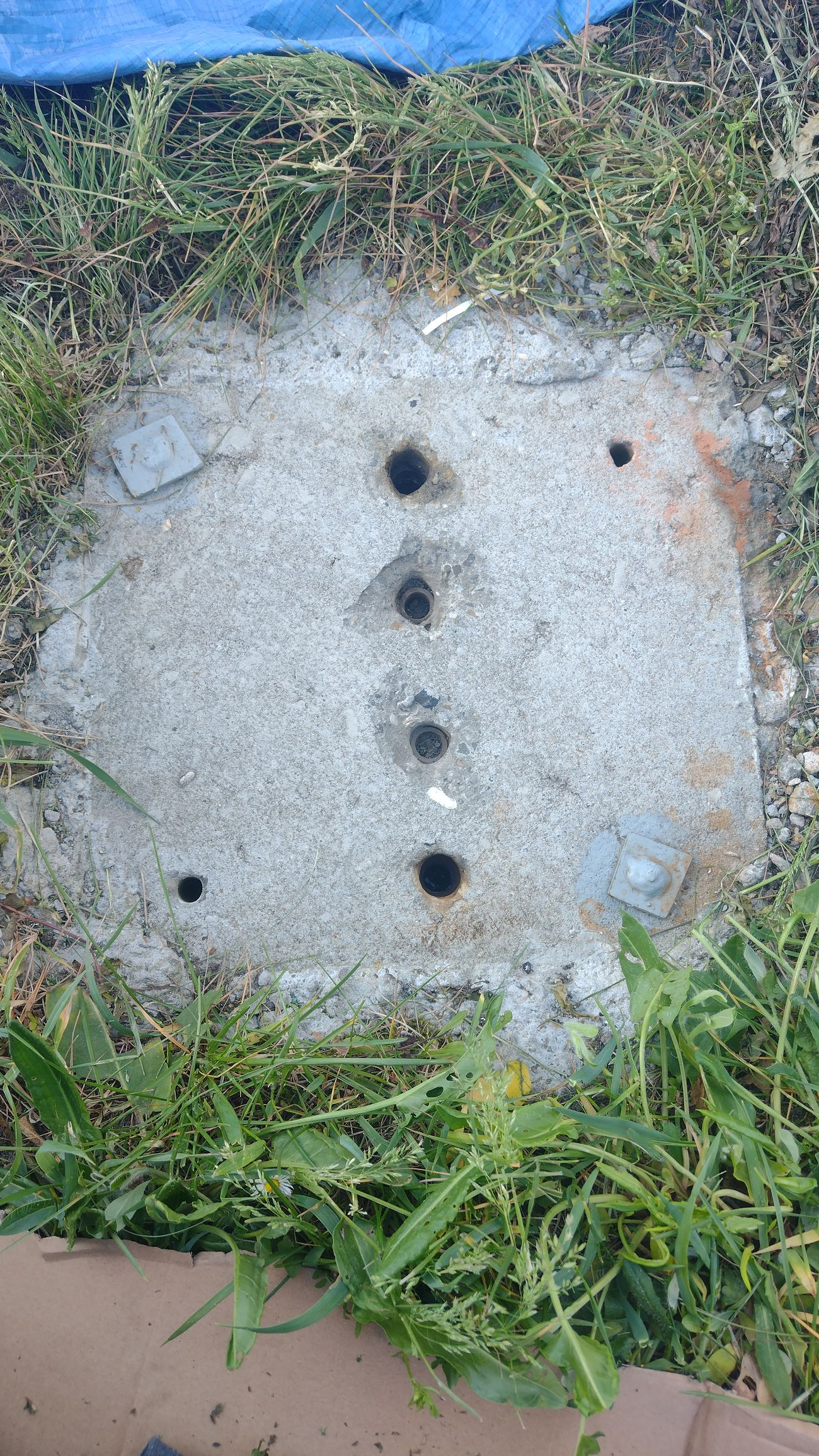

1. Photovoltaic modules 2. Concrete base mounting 3. Metalworking and welding mounting bases and angle bar 4. Painting mounting base, angle bars and perforated profiles 5. PV mountings to perforated profiles 6. Assembly of PV installation 7. Fully assembled PV installation 8. Underground Cable Installation and Connection to the Building

B. EASUN inverter - description, installation schematic and wiring #### C. Managemenet system part: - BMS for lead-acid batteries - equalize battery, protect from large charge/discharge currents, montors battery state (temp, voltage) - ESP32 Master module -…

DC line module+Meter probe, from the project README
From the project README

Main components on the DC line module+Meter probe

DC line module+Meter probe bill of materials (BOM)

98 components, 35 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74HC14
U1
4
CA56-12SURKWA
U2, U14, U15, U16
2
ST485EBDR
U3, U4
1
AMS1117-5.0
U5
3
74HC595
U6, U7, U8
3
~
U9, U11, U12
1
ULN2803A
U10
1
AP74700
U13
18
BC807
Q1, Q2, Q3, Q5, Q6, Q7, Q8, Q9 +10
2
BC817
Q4, Q15
1
IRF540N
Q20
1
DATA_INPUT
J1
1
DATA_BRIDGE
J2
1
POWER_RS485
J3
1
PROBE_CONN
J4
1
IN
J5
1
GND
J6
1
GND
J7
1
OUT
J8
1
LL4148
LED-AL-IR50
D1
Show 15 more
QtyPartRefs
2
BPV10
D2, D4
1
LED-AL-IR50
D3
1
100u
C1
4
100n
C2, C3, C5, C6
2
22u
C4, C7
3
100n
C8, C9, C10
1
470u/6,3V
C11
17
10k
R1, R2, R6, R9, R10, R13, R14, R15 +9
2
160R
R3, R19
1
10K
47k
R4
3
47k
R5, R20, R26
2
22k
R7, R28
3
1k
R8, R31, R36
2
120R
R11, R12
8
200R
R17, R18, R21, R22, R25, R27, R29, R30
