Noctra-Devboard PCB layout, top view — open source RP2040/RP2350 board by lekangji

About the Noctra-Devboard PCB

Noctra-Devboard is an open source RP2040/RP2350 PCB design by lekangji, published on GitHub. It is a 4-layer board measuring 21 × 51 mm, with 67 components from 36 distinct parts.

Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the TPS631000DRLR, W25Q128JVP, TPD2EUSB30ADRTR, TPS2116DRLR and ESP32-C6-MINI-1U-H4. By type, the board carries 24 capacitors, 24 resistors, 7 ICs, 3 connectors, 3 diodes and 2 switches.

It belongs with the iot & wireless, power & battery and dev boards & breakouts designs in this gallery.

From the project

A RP2350 based devboard with esp c6 mini integration for wifi + bluetooth.

- A main MCU (RP2350) for input / output pins - A coprocessor (ESP32-C6 Mini) for wireless connectivity - Power management (USB + battery support with battery charging)

- RP2350 microcontroller - ESP32-C6 Mini (Wi-Fi + Bluetooth via ESP-AT) - External 16MB flash memory (128Mbit) - Power System - TPS63100 buck-boost converter: 2A, 1.6V – 5.5V, 3V3EN pin - TPS2116 power mux: Auto-switch between USB and battery (~3V threshold) - HX4054A battery charger: 500mA + indicator LED - USB-C, with TPD2EUSB30 ESD protection for data lines - ADC filtering + ADCVREF pin

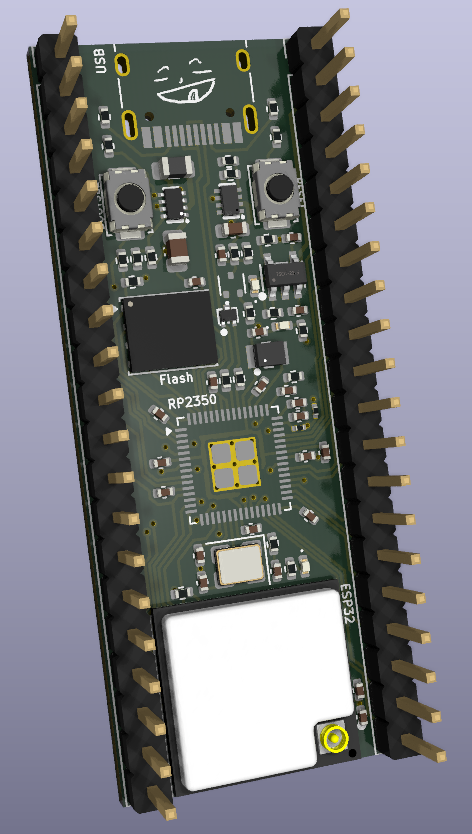

Noctra-Devboard, from the project README
From the project README

Main components on the Noctra-Devboard

RP2350_60QFNTPS631000DRLRW25Q128JVPTPD2EUSB30ADRTRTPS2116DRLRESP32-C6-MINI-1U-H4HX4054A.

Noctra-Devboard bill of materials (BOM)

67 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2350_60QFN
U1
1
TPS631000DRLR
U2
1
W25Q128JVP
U3
1
TPD2EUSB30ADRTR
U4
1
TPS2116DRLR
U5
1
ESP32-C6-MINI-1U-H4
U6
1
HX4054A.
U7
1
DMG1012T
Q1
1
12 MHz
Y1
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
2
CONN_01X20
Conn_01x20
J2, J3
2
SW_Push
SW1, SW2
3
LED
D1, D2, D3
1
LMSH2012081R0MTA-1UH
LMSH2012081R0MTA-1uH
L1
1
AOTA-B201610S3R3-3.3UH
AOTA-B201610S3R3-3.3uH
L2
1
22UF
22uF
C1
1
47UF
47uF
C2
5
4.7UF
4.7uF
C3, C13, C14, C15, C16
11
0.1UF
0.1uF
C4, C5, C6, C7, C8, C9, C10, C11 +3
2
33PF
33pF
C17, C18
Show 16 more
QtyPartRefs
1
1NF
1nF
C20
2
10UF
10uF
C22, C23
1
1UF
1uF
C24
2
5.1K
R1, R2
2
27
R3, R4
6
1K
R5, R6, R8, R9, R14, R22
2
10K
R7, R19
4
100K
R10, R11, R20, R21
1
91K
R12
1
511K
R13
1
33
R15
1
2M
R16
1
1M
R17
1
2.2K
R18
1
1
R23
1
200
R24

Noctra-Devboard design files

The KiCad project lives in the lekangji/Noctra-Devboard repository on GitHub; these links point at the commit this page was built from.

Noctra-Devboard: common questions

What microcontroller does the Noctra-Devboard use?

The Noctra-Devboard is built around the RP2350_60QFN, from the RP2040/RP2350 family.

How big is the Noctra-Devboard PCB?

The Noctra-Devboard measures 21 × 51 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Noctra-Devboard?

67 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Noctra-Devboard design files?

From the lekangji/Noctra-Devboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Noctra-Devboard design in my own project?

The repository has no license, so all rights stay with lekangji. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Noctra-Devboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
