RoyalBlue54L-Feather PCB layout, top view — open source Nordic nRF board by LordsBoards

About the RoyalBlue54L-Feather PCB

RoyalBlue54L-Feather is an open source Nordic nRF PCB design by LordsBoards, published on GitHub under the CERN-OHL-P-2.0 license. It is a 8-layer board measuring 58.4 × 22.9 mm, with 48 components from 29 distinct parts.

Its main chip is the BM15x, from the Nordic nRF family. Other key parts include the nPM1300-QEXX, TPD3E001DRLR, W25Q16JVUXIQ, nRF52833-QDXX and TXB0106RGY. By type, the board carries 25 capacitors, 6 ICs, 6 resistors, 4 connectors, 2 crystals and 2 switches.

It belongs with the iot & wireless, dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

RoyalBlue nRF54L15 Hardware

An ARM + RISC-V Feather board with the new nRF54L15, built-in debugger, and smart PMIC

The RoyalBlue54L--familiar Feather formfactor with distinctive features. Nordic's next-gen nRF54L15, an onboard CMSIS-DAP debugger + UART bridge, and smart power-management features from the nPM1300 enable rapid development for your next Bluetooth 6.0, Thread, Matter, Zigbee, Amazon Sidewalk, or proprietary wireless project.

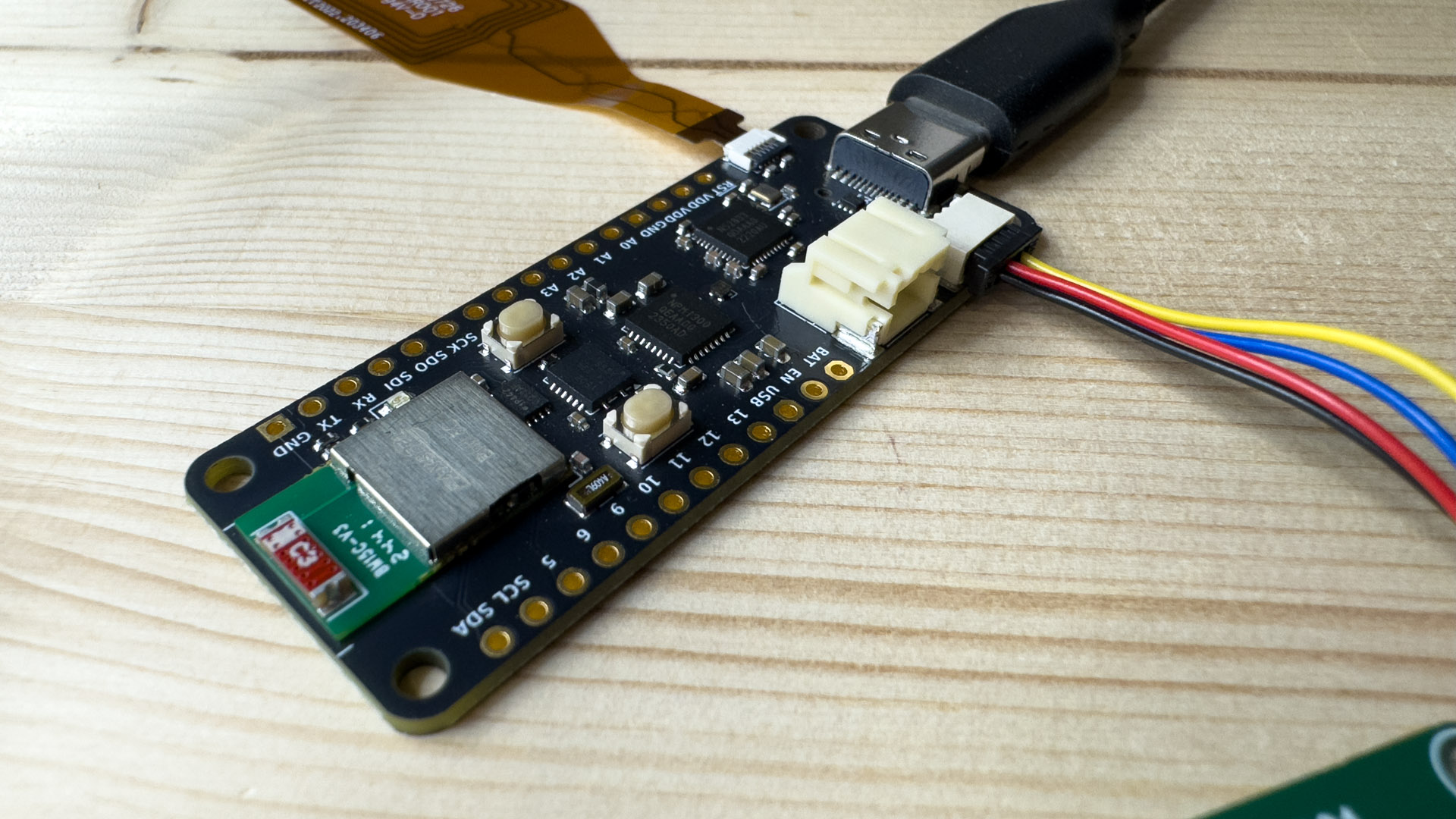

RoyalBlue54L-Feather, from the project README
From the project README

Main components on the RoyalBlue54L-Feather

BM15xnPM1300-QEXXTPD3E001DRLRW25Q16JVUXIQnRF52833-QDXXTXB0106RGY

RoyalBlue54L-Feather bill of materials (BOM)

48 components, 29 distinct parts.

QtyPartRefs
1
BM15x
U1
1
nPM1300-QEXX
U2
1
TPD3E001DRLR
U3
1
W25Q16JVUXIQ
U4
1
nRF52833-QDXX
U5
1
TXB0106RGY
U6
1
32.768KHz
Y1
1
32MHz
Y2
1
USB_C_Receptacle_USB2.0_16P
J3
1
Conn_01x02_MountingPin
J4
1
Conn_01x04_MountingPin
J5
1
Conn_01x05_MountingPin
J6
2
SW_Push
SW1, SW2
1
LED_Small
D1
1
LED_ARGB
D3
1
2.2uH
L1
7
100nF
C1, C12, C16, C17, C19, C24, C25
4
10uF
C2, C3, C4, C8
2
1uF
C5, C6
4
4.7uF
C7, C9, C10, C23
Show 9 more
QtyPartRefs
1
2.2uF
C11
2
300pF
C13, C14
2
1uF
C15, C22
2
12pF
C18, C20
1
100pF
C21
2
100kR
R1, R8
1
330kR
R4
2
10kR
R5, R7
1
470R
R6

RoyalBlue54L-Feather design files

The KiCad project lives in the LordsBoards/RoyalBlue54L-Feather-Hardware repository on GitHub; these links point at the commit this page was built from.

RoyalBlue54L-Feather: common questions

What microcontroller does the RoyalBlue54L-Feather use?

The RoyalBlue54L-Feather is built around the BM15x, from the Nordic nRF family.

How big is the RoyalBlue54L-Feather PCB?

The RoyalBlue54L-Feather measures 58.4 × 22.9 mm, has 8 copper layers and is 1.6 mm thick.

How many components are on the RoyalBlue54L-Feather?

48 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the RoyalBlue54L-Feather design files?

From the LordsBoards/RoyalBlue54L-Feather-Hardware repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RoyalBlue54L-Feather design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which LordsBoards chose for the repository.

Can I test firmware for the RoyalBlue54L-Feather without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
