Esp32-dongle v0-1-ceramic antenna PCB layout, top view — open source ESP32 board by manhoosbilli1
Simulate this board

About the Esp32-dongle v0-1-ceramic antenna PCB

Esp32-dongle v0-1-ceramic antenna is an open source ESP32 PCB design by manhoosbilli1, published on GitHub. It is a 4-layer board measuring 11 × 50.8 mm, with 47 components from 31 distinct parts.

Its main chip is the ESP32-C3FH4, from the ESP32 family. Other key parts include the MCP73831-2-MC, LIS3DH, HX TYPE-C 16PIN, SY8089AAAC and DRV2605LDGS. By type, the board carries 17 capacitors, 15 resistors, 6 ICs, 5 diodes, 1 transistor and 1 crystal.

It belongs with the rf & radio, iot & wireless and power & battery designs in this gallery.

From the project

Smallest possible ESP32 dongle v0.1 with ceramic antenna - untested (never manufactured)

Smallest possible ESP32-C3 dongle v0.1 with ceramic antenna - never manufactured, untested

- Status: Routed - Board size: 11 x 50.81 mm - Layers: 4 - Components: 61 - Key ICs: - U1: MCP73831-2-MC - U2: LIS3DH - U3: ESP32-C3FH4 - U5: HX TYPE-C 16PIN - U6: SY8089AAAC - U7: DRV2605LDGS

- ESP32-C3FH4 (U3) - main MCU (RISC-V, Wi-Fi/BLE 5.0); smaller package chosen for minimum footprint - 2450AT18A100E (AE1) - 2.45 GHz ceramic chip antenna; eliminates the PCB antenna trace requirement for tightest possible board - LIS3DH (U2) - 3-axis accelerometer - MCP73831-2-MC (U1) - single-cell LiPo charger…

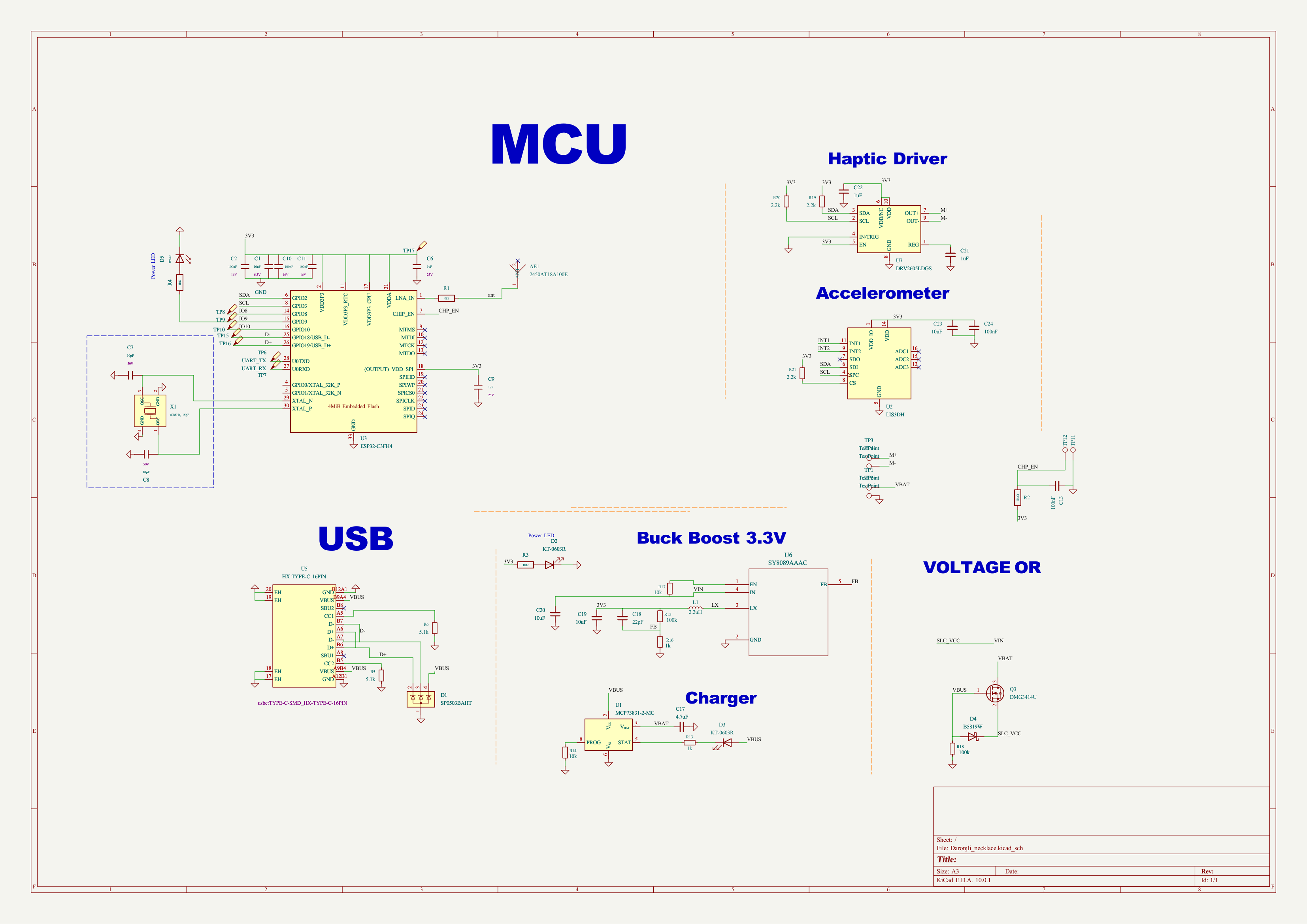

Esp32-dongle v0-1-ceramic antenna, from the project README
From the project README

Main components on the Esp32-dongle v0-1-ceramic antenna

MCP73831-2-MCLIS3DHESP32-C3FH4HX TYPE-C 16PINSY8089AAACDRV2605LDGS

Esp32-dongle v0-1-ceramic antenna bill of materials (BOM)

47 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP73831-2-MC
U1
1
LIS3DH
U2
1
ESP32-C3FH4
U3
1
HX TYPE-C 16PIN
U5
1
SY8089AAAC
U6
1
DRV2605LDGS
U7
1
DMG3414U
Q3
1
40MHz, 15pF
X1
1
2450AT18A100E
AE1
1
SP0503BAHT
D1
2
KT-0603R
D2, D3
1
B5819W
D4
1
White
Hubei KENTO Elec
D5
1
2.2uH
L1
1
10uF
Samsung Electro-Mechanics
C1
3
100nF
Samsung Electro-Mechanics
C2, C10, C11
2
1uF
Samsung Electro-Mechanics
C6, C9
2
10pF
Samsung Electro-Mechanics
C7, C8
2
100nF
C13, C24
1
4.7uF
C17
Show 11 more
QtyPartRefs
1
22pF
C18
3
10uF
C19, C20, C23
2
1uF
C21, C22
1
0Ω
UNI-ROYAL(Uniroyal Elec)
R1
1
10kΩ
UNI-ROYAL(Uniroyal Elec)
R2
2
1kΩ
UNI-ROYAL(Uniroyal Elec)
R3, R4
2
5.1k
R5, R6
2
1k
R13, R16
2
10k
R14, R17
2
100k
R15, R18
3
2.2k
R19, R20, R21

Esp32-dongle v0-1-ceramic antenna design files

The KiCad project lives in the manhoosbilli1/esp32-dongle-v0-1-ceramic-antenna repository on GitHub; these links point at the commit this page was built from.

Esp32-dongle v0-1-ceramic antenna: common questions

What microcontroller does the Esp32-dongle v0-1-ceramic antenna use?

The Esp32-dongle v0-1-ceramic antenna is built around the ESP32-C3FH4, from the ESP32 family.

How big is the Esp32-dongle v0-1-ceramic antenna PCB?

The Esp32-dongle v0-1-ceramic antenna measures 11 × 50.8 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Esp32-dongle v0-1-ceramic antenna?

47 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-dongle v0-1-ceramic antenna design files?

From the manhoosbilli1/esp32-dongle-v0-1-ceramic-antenna repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-dongle v0-1-ceramic antenna design in my own project?

The repository has no license, so all rights stay with manhoosbilli1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32-dongle v0-1-ceramic antenna without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
