PowerPlant-Module

Manuvr·Digitabulum-Hardware·PowerPlant-Module/PowerPlant-Module.kicad_pcb

PowerPlant-Module layout, top view — open source board by Manuvr

About the PowerPlant-Module

PowerPlant-Module is an open source PCB design by Manuvr, published on GitHub. It is a 4-layer board measuring 22.5 × 37.7 mm, with 35 components from 24 distinct parts.

Other key parts include the LSF0204x, LTC2942-1, BQ24155 and SC283. By type, the board carries 13 capacitors, 5 connectors, 5 resistors, 4 ICs, 3 inductors and 1 fuse.

It belongs with the power & battery designs in this gallery.

From the project

KiCAD source files for Manuvr's motion capture glove.

This is the power-management block of Manuvr's motion-capture glove. It has been broken out as a module for testing and re-use.

Feature | Manufacturer | Part :----|-----:|:---- Battery charger | TI | BQ24155 Fuel gauge | Linear | LTC2942-1 Regulator | SEMTECH | SC283 Level-shifter | TI | LSF0204

Charge and discharge rate on the battery must not exceed 1A, or the internal sense resistor in the fuel gauge will burn out. There is a resetable fuse to prevent damage, but this forms the limit on the module's practical output rating. However, the charger IC can handle up to a 20v input, and could…

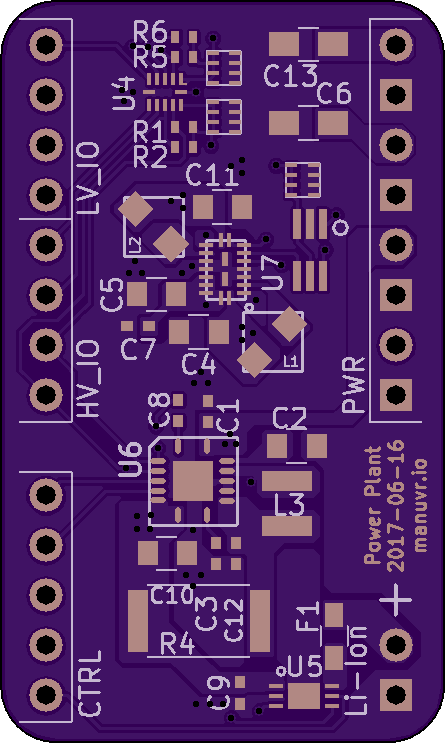

PowerPlant-Module, from the project README — From the project README

Main components on the PowerPlant-Module

LSF0204x LTC2942-1 BQ24155 SC283

PowerPlant-Module bill of materials (BOM)

35 components, 24 distinct parts.

Qty	Part	Footprint	Refs
1	LSF0204x	R-PUQFN-N12	U4
1	LTC2942-1	DFN-6-1EP_2x3mm_Pitch0.5mm	U5
1	BQ24155	BQ24155	U6
1	SC283	MLPQ-W18 (2mmx3mm)	U7
1	CONN_01X02	Pin_Header_Straight_1x02_Pitch2.54mm	P2
1	PWR	Pin_Header_Straight_1x08_Pitch2.54mm	P3
1	CTRL	Pin_Header_Straight_1x05_Pitch2.54mm	P4
1	LV_IO	Pin_Header_Straight_1x04_Pitch2.54mm	P5
1	HV_IO	Pin_Header_Straight_1x04_Pitch2.54mm	P6
3	100nF	CapArray_CKCL44	CARY1, CARY2, CARY3
1	F_Small	R_0603_HandSoldering	F1
1	QA_NPN	SOT-363_SC-70-6_Handsoldering	QA_NPN1
2	2.2uH	L-SMD	L1, L2
1	1uH	Neosid_Inductor_SM-NE29_SMD1008	L3
3	1uF	C_0402_NoSilk	C1, C3, C7
1	4.7uF	C_0805	C2
2	22uF	C_0805	C4, C11
2	10uF	C_0805	C5, C10
2	100uF	C_0805_HandSoldering	C6, C13
1	10nF	C_0402_NoSilk	C8

Show 4 more

Qty	Part	Footprint	Refs
1	10uF	C_0402_NoSilk	C9
1	0.1uF	C_0402_NoSilk	C12
4	1k	R_0402_NoSilk	R1, R2, R5, R6
1	68mOhm	R_2512	R4

PowerPlant-Module design files

The KiCad project lives in the Manuvr/Digitabulum-Hardware repository on GitHub; these links point at the commit this page was built from.

LayoutPowerPlant-Module/PowerPlant-Module.kicad_pcb

PowerPlant-Module: common questions

How big is the PowerPlant-Module?

The PowerPlant-Module measures 22.5 × 37.7 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the PowerPlant-Module?

35 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the PowerPlant-Module design files?

From the Manuvr/Digitabulum-Hardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PowerPlant-Module design in my own project?

The repository has no license, so all rights stay with Manuvr. Use it as a reference, and ask the author before reusing the design.
