R2-Backplane
About the R2-Backplane PCB

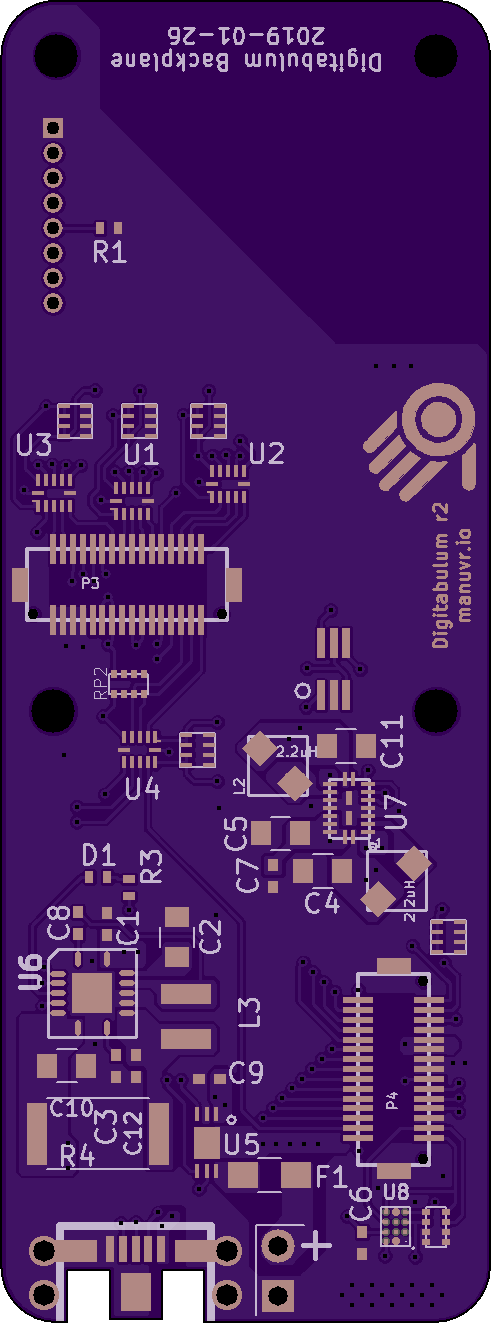

R2-Backplane is an open source PCB design by Manuvr, published on GitHub. It is a 4-layer board measuring 24.8 × 67.1 mm, with 41 components from 27 distinct parts.
Other key parts include the LSF0204x, LTC2942-1, BQ24155, SC283 and EMIF02-USB03F2. By type, the board carries 12 capacitors, 8 ICs, 5 connectors, 3 inductors, 3 resistors and 1 fuse.
It belongs with the power & battery and sensors designs in this gallery.
From the project
KiCAD source files for Manuvr's motion capture glove.
This is a backplane PCB for Digitabulum containing the power-management block and associated support circuits.
This PCB, combined with a Compute board, and a Digitabulum-r2 board (plus sensors) forms a complete electronics package for a single motion-capture glove.
The power-management block of this backplane is broken out in the PowerPlant-Module.
The CPLD GPIO pin has been routed to the 2v5/3v3 selection signal.
Main components on the R2-Backplane
R2-Backplane bill of materials (BOM)
41 components, 27 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | LSF0204x | R-PUQFN-N12 | U1, U2, U3, U4 |
| 1 | LTC2942-1 | DFN-6-1EP_2x3mm_Pitch0.5mm | U5 |
| 1 | BQ24155 | BQ24155 | U6 |
| 1 | SC283 | MLPQ-W18 (2mmx3mm) | U7 |
| 1 | EMIF02-USB03F2 | FCBGA12 | U8 |
| 1 | USB-MICRO-B | USB_ZX62WRD-B-5PC | CON1 |
| 1 | CONN_01X02 | Pin_Header_Straight_1x02_Pitch2.54mm | P2 |
| 1 | CONN_02X16 | DF12(3.0)-32DS-0.5V(86) | P3 |
| 1 | HiRose-02X15 | DF12(4.0)-30DS-0.5V(86) | P4 |
| 1 | DEBUG | Pin_Header_Straight_1x08_Pitch1.27mm | P6 |
| 5 | 100nF | CapArray_CKCL44 | CARY1, CARY2, CARY3, CARY4, CARY5 |
| 1 | 1A | R_0805_HandSoldering | F1 |
| 1 | QA_NPN | SOT-363_SC-70-6_Handsoldering | QA_NPN1 |
| 1 | 22 | RES_4_EXBN8V | RP1 |
| 1 | 10k | RES_4_EXBN8V | RP2 |
| 1 | Charge | R_0402_NoSilk | D1 |
| 2 | 2.2uH | L-SMD | L1, L2 |
| 1 | 1uH | Neosid_Inductor_SM-NE29_SMD1008 | L3 |
| 3 | 1uF | C_0402_NoSilk | C1, C3, C7 |
| 1 | 4.7uF | C_0805 | C2 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 22uF | C_0805 | C4, C11 |
| 2 | 10uF | C_0805 | C5, C10 |
| 2 | 10uF | C_0402_NoSilk | C6, C9 |
| 1 | 10nF | C_0402_NoSilk | C8 |
| 1 | 0.1uF | C_0402_NoSilk | C12 |
| 2 | 1k | R_0402_NoSilk | R1, R3 |
| 1 | 68mOhm | R_2512 | R4 |
R2-Backplane design files
The KiCad project lives in the Manuvr/Digitabulum-Hardware repository on GitHub; these links point at the commit this page was built from.
R2-Backplane: common questions
How big is the R2-Backplane PCB?
The R2-Backplane measures 24.8 × 67.1 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the R2-Backplane?
41 components, from 27 distinct parts. The full bill of materials is listed on this page.
Where can I download the R2-Backplane design files?
From the Manuvr/Digitabulum-Hardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the R2-Backplane design in my own project?
The repository has no license, so all rights stay with Manuvr. Use it as a reference, and ask the author before reusing the design.
