About the 68000 MPF BOARD

68000 MPF BOARD is an open source PCB design by MarkD833, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 101.6 × 53.3 mm, with 27 components from 15 distinct parts.

Other key parts include the 74LS138, 68901P and 74LS688. By type, the board carries 12 connectors, 5 capacitors, 4 ICs, 4 jumpers, 1 crystal and 1 resistor.

It belongs with the retro computing designs in this gallery.

From the project

My Motorola 68000 & 68302 processors (+ SIO, PIO & MFP boards) for the RCBus ecosystem.

The base address of each MFP is determined by the placement of a jumper between adjacent pins on J12 & J9 (MFP A) and J12 & J11 (MFP B).

Note that each MFP chip requires a clock signal in order to function correctly, even if the UART and timer are not being used.

Assuming that the crystal oscillator (or CLOCK2) frequency is 3.6864MHz, with the prescaled set to DIV 4 and the required baud rate of 9600 baud, then the following calculation will provide the timer D reload value:

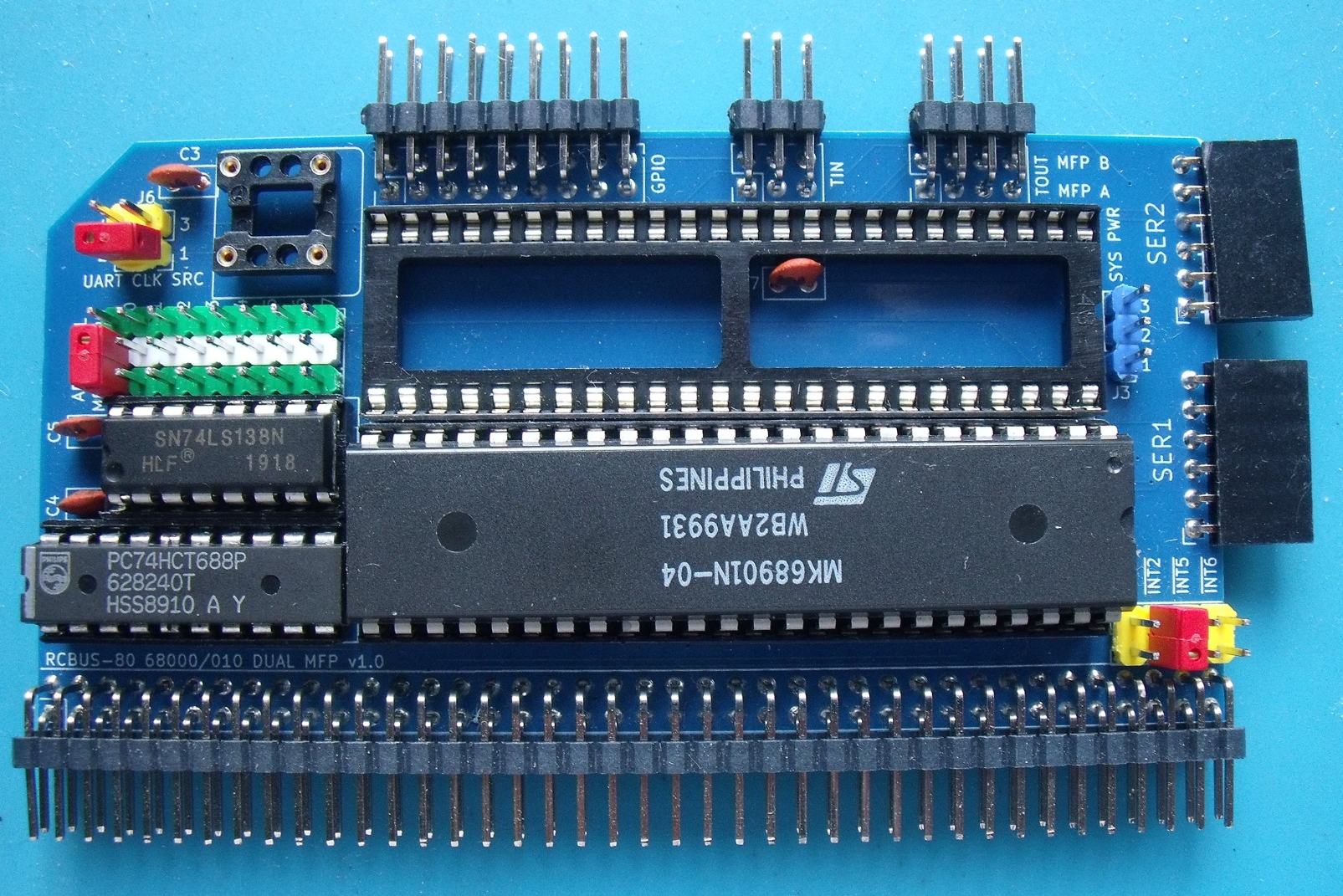

68000 MPF BOARD, from the project README
From the project README

Main components on the 68000 MPF BOARD

74LS13868901P74LS688

68000 MPF BOARD bill of materials (BOM)

27 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74LS138
U2
2
68901P
U4, U5
1
74LS688
U6
1
CXO_DIP8
X1
2
CONN_02X04_ODD_EVEN
Conn_02x04_Odd_Even
J2, J5
1
CONN_01X03
Conn_01x03
J3
1
CONN_02X09_ODD_EVEN
Conn_02x09_Odd_Even
J4
1
CONN_02X02_ODD_EVEN
Conn_02x02_Odd_Even
J6
2
CONN_01X06
Conn_01x06
J7, J8
3
CONN_01X08
Conn_01x08
J9, J11, J12
1
CONN_02X03_ODD_EVEN
Conn_02x03_Odd_Even
J14
1
RCBUS_80PIN_68000
RCBus_80PIN_68000
J15
4
SolderJumper
JP1, JP2, JP3, JP4
5
100N
100n
C2, C3, C4, C5, C7
1
10K
R1

68000 MPF BOARD design files

The KiCad project lives in the MarkD833/RCBUS-68xxx repository on GitHub; these links point at the commit this page was built from.

68000 MPF BOARD: common questions

How big is the 68000 MPF BOARD?

The 68000 MPF BOARD measures 101.6 × 53.3 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the 68000 MPF BOARD?

27 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 68000 MPF BOARD design files?

From the MarkD833/RCBUS-68xxx repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 68000 MPF BOARD design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
