RC200-Dev Backplane
About the RC200-Dev Backplane PCB
RC200-Dev Backplane is an open source PCB design by MarkD833, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 188 × 102.9 mm, with 90 components from 33 distinct parts.
Other key parts include the DS1233-10, 74LS04, 74LS148, 74LS20 and 74LS139. By type, the board carries 27 connectors, 18 capacitors, 16 resistors, 11 diodes, 10 switches and 8 ICs.
It belongs with the retro computing designs in this gallery.
From the project
My Motorola 68000 & 68302 processors (+ SIO, PIO & MFP boards) for the RCBus ecosystem.
I had a chat with Steve to get his approval for me to take his SC701 backplane design and alter it for my own needs.

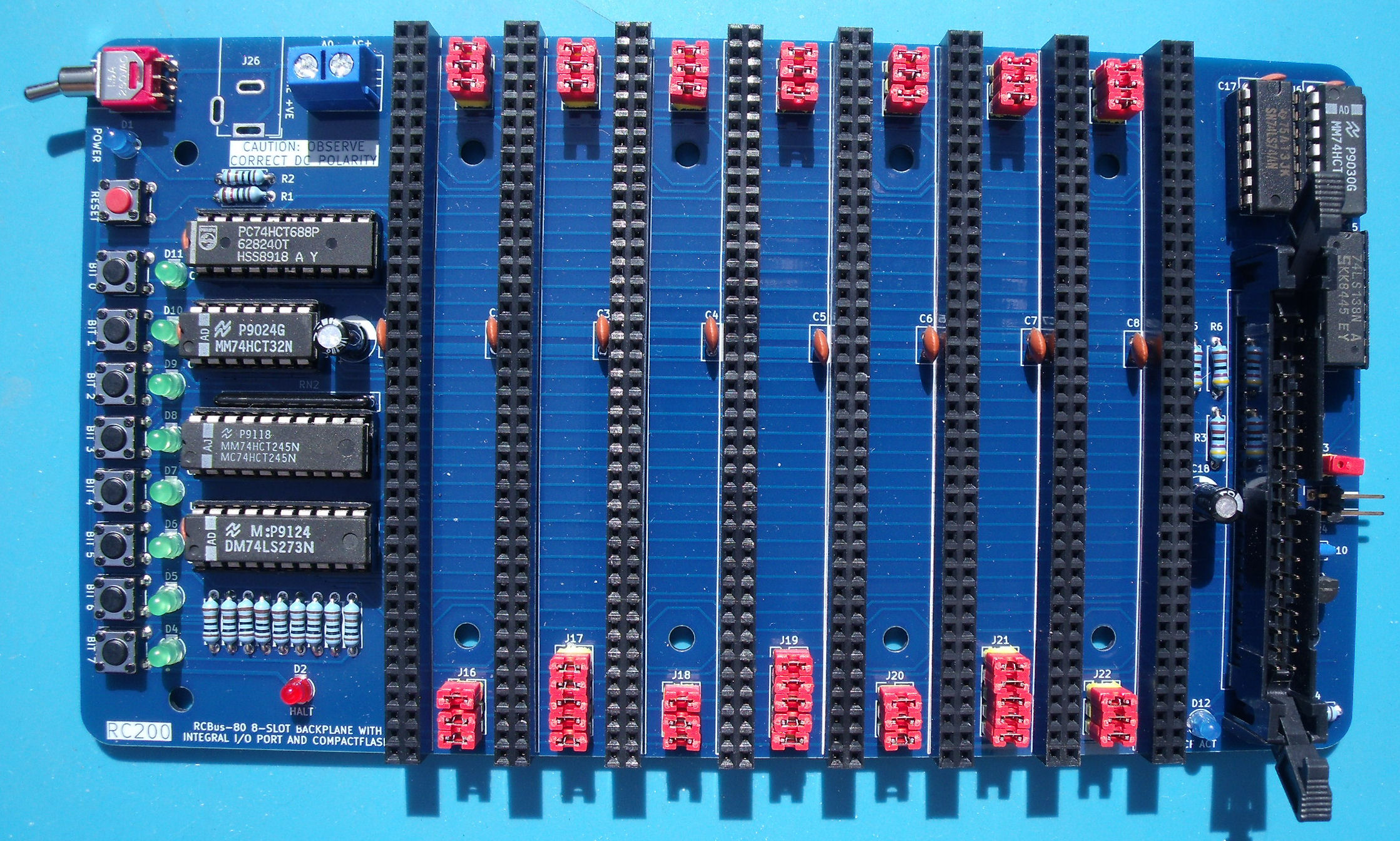

This backplane I've put together has 2 additional slots - making 8 in total. It also incorporates parts of Steve's SC719 digital I/O board to give 8 debug LEDs and 8 tactile pushbuttons. I also incorporated his SC729 CompactFlash module (with electronics by Tadeusz Pycio - www.vtsys.pl) as well.
Main components on the RC200-Dev Backplane
RC200-Dev Backplane bill of materials (BOM)
90 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DS1233-10 | TO-92L_Inline | U1 |
| 1 | 74LS04 74HCT688 | DIP-20_W7.62mm | U2 |
| 1 | 74LS148 74LS32 | DIP-14_W7.62mm | U3 |
| 1 | 74LS20 74HCT273 | DIP-20_W7.62mm | U4 |
| 1 | 74LS139 74LS245 | DIP-20_W7.62mm | U5 |
| 1 | 74LS175 74LS32 | DIP-14_W7.62mm | U6 |
| 1 | 74LS156 74LS74 | DIP-14_W7.62mm | U7 |
| 1 | 74LS175 74LS138 | DIP-16_W7.62mm | U8 |
| 1 | CONN_IDE_02x20 | IDC-Header_2x20_P2.54mm_Vertical | CON1 |
| 1 | CONN_02X04_ODD_EVEN Conn_02x40_Top_Bottom | PinSocket_2x40_P2.54mm_Vertical_Top_Bottom | J1 |
| 1 | RCBUS_80PIN_68000 Conn_02x40_Top_Bottom | PinSocket_2x40_P2.54mm_Vertical_Top_Bottom | J2 |
| 4 | CONN_01X03 Conn_02x40_Top_Bottom | PinSocket_2x40_P2.54mm_Vertical_Top_Bottom | J3, J5, J6, J7 |
| 1 | CONN_01X02 Conn_02x40_Top_Bottom | PinSocket_2x40_P2.54mm_Vertical_Top_Bottom | J4 |
| 1 | Conn_02x40_Top_Bottom | PinSocket_2x40_P2.54mm_Vertical_Top_Bottom | J8 |
| 11 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J9, J10, J11, J12, J13, J14, J15, J16 +3 |
| 3 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical | J17, J19, J21 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J23 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Horizontal | J24 |
| 1 | Conn_01x02 | TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm | J25 |
| 1 | Barrel_Jack_Switch | BarrelJack_GCT_DCJ200-10-A_Horizontal | J26 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 9 | SW_Push | SW_TH_Tactile | SW1, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +1 |
| 1 | SW_SPDT | 2MS1T2B2M6QES | SW2 |
| 3 | BAT43 LED | LED_D3.0mm | D1, D2, D5 |
| 8 | LED | LED_D3.0mm | D4, D6, D7, D8, D9, D10, D11, D12 |
| 9 | 100N 100n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1, C2, C3, C5, C6, C7, C8, C11 +1 |
| 6 | 100n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C4, C13, C14, C15, C16, C17 |
| 1 | 100N 100uF | CP_Radial_D6.3mm_P2.50mm | C9 |
| 1 | 100N 1n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C10 |
| 1 | 100uF | CP_Radial_D6.3mm_P2.50mm | C18 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 11 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R4, R7, R9, R10, R11, R12, R13 +3 |
| 3 | 4K7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R5, R6 |
| 1 | 10K 1K | R_Array_SIP9 | RN2 |
RC200-Dev Backplane design files
The KiCad project lives in the MarkD833/RCBUS-68xxx repository on GitHub; these links point at the commit this page was built from.
RC200-Dev Backplane: common questions
How big is the RC200-Dev Backplane PCB?
The RC200-Dev Backplane measures 188 × 102.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RC200-Dev Backplane?
90 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RC200-Dev Backplane design files?
From the MarkD833/RCBUS-68xxx repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RC200-Dev Backplane design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
