RC201-68000 CPU 2
MarkD833·RCBUS-68xxx·boards/RC201_68000_CPU_Board/RC201-68000_CPU_2.kicad_pcb
About the RC201-68000 CPU 2 PCB
RC201-68000 CPU 2 is an open source PCB design by MarkD833, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 101.6 × 53.3 mm, with 37 components from 19 distinct parts.
Other key parts include the 74LS04, 74LS148, 74LS20, 74LS139 and 74LS175. By type, the board carries 11 capacitors, 9 ICs, 7 connectors, 5 diodes, 4 resistors and 1 crystal.
It belongs with the retro computing designs in this gallery.
From the project
My Motorola 68000 & 68302 processors (+ SIO, PIO & MFP boards) for the RCBus ecosystem.

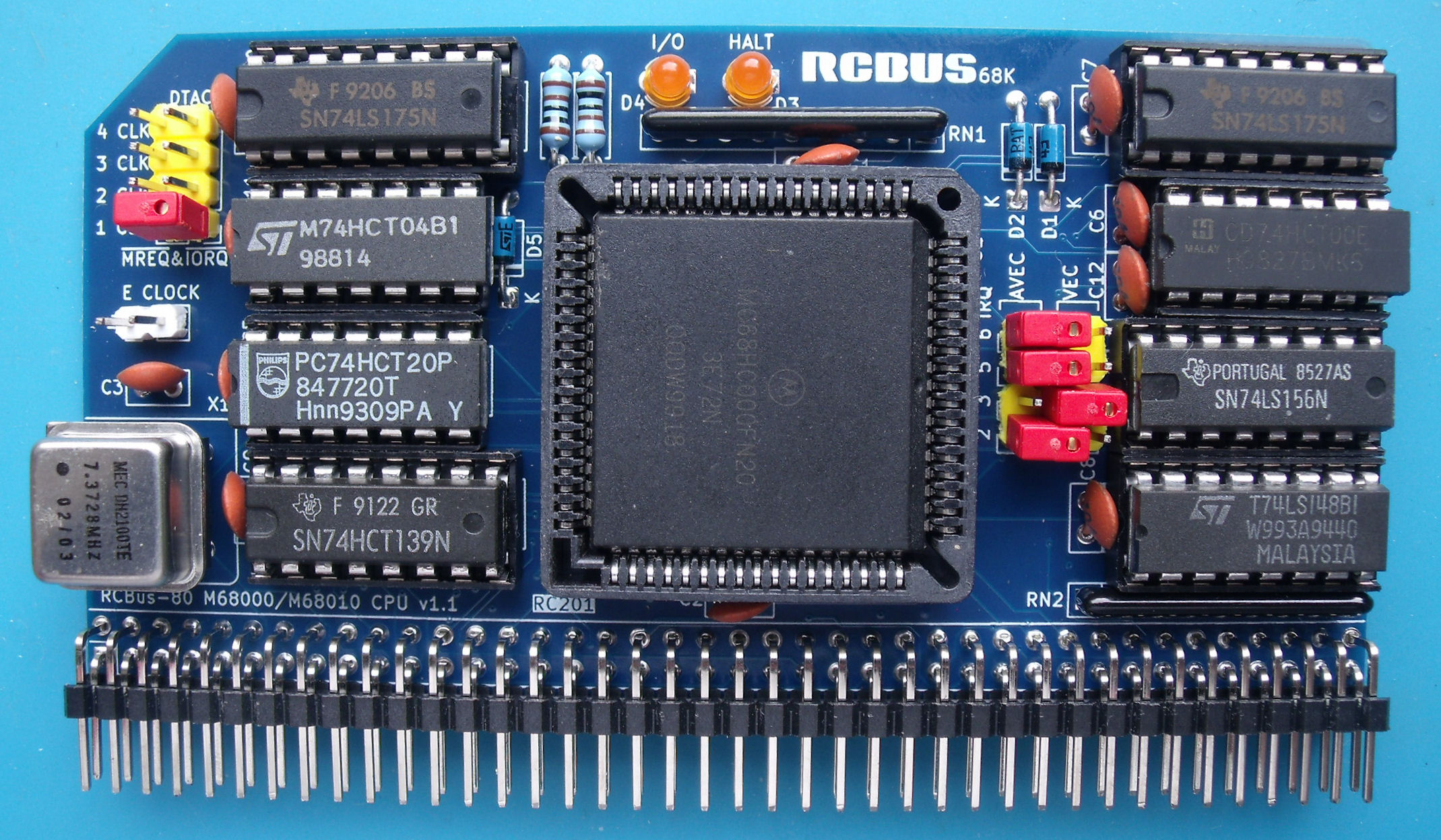

Actual image of the processor board under test with IRQ2, IRQ5 and IRQ6 configured for autovectored interrupts and IRQ3 for vectored interrupts.
The processor board is designed to plug into an RCBus-80 backplane and expects to find the stack pointer and initial program counter addresses at location 0x000000 onwards.
There's also a jumper (J4) to allow the processor E clock to be routed onto the RCBus CLOCK2 pin (61) if required. However, note that the CLOCK2 pin may also be used by other boards such as the RC202 serial board (to share its 3.6864MHz UART clock). If this feature is used, then…
Main components on the RC201-68000 CPU 2
RC201-68000 CPU 2 bill of materials (BOM)
37 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ~ | PLCC-68_THT-Socket | U1 |
| 1 | 74LS04 | DIP-14_W7.62mm | U2 |
| 1 | 74LS148 | DIP-16_W7.62mm | U3 |
| 1 | 74LS20 | DIP-14_W7.62mm | U4 |
| 1 | 74LS139 | DIP-16_W7.62mm | U5 |
| 2 | 74LS175 | DIP-16_W7.62mm | U6, U8 |
| 1 | 74LS156 | DIP-16_W7.62mm | U7 |
| 1 | 74LS00 | DIP-14_W7.62mm | U9 |
| 1 | 7.3728MHZ 7.3728MHz | Oscillator_DIP-8 | X1 |
| 1 | CONN_02X04_ODD_EVEN Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical | J1 |
| 1 | RCBUS_80PIN_68000 RCBus_80PIN_68000 | RCBus_80p_Medium | J2 |
| 4 | CONN_01X03 Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J3, J5, J6, J7 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 3 | BAT43 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D5 |
| 2 | LED | LED_D3.0mm | D3, D4 |
| 11 | 100N 100n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1, C2, C3, C5, C6, C7, C8, C9 +3 |
| 2 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 1 | 4K7 | R_Array_SIP9 | RN1 |
| 1 | 10K | R_Array_SIP9 | RN2 |
RC201-68000 CPU 2 design files
The KiCad project lives in the MarkD833/RCBUS-68xxx repository on GitHub; these links point at the commit this page was built from.
RC201-68000 CPU 2: common questions
How big is the RC201-68000 CPU 2 PCB?
The RC201-68000 CPU 2 measures 101.6 × 53.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the RC201-68000 CPU 2?
37 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RC201-68000 CPU 2 design files?
From the MarkD833/RCBUS-68xxx repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RC201-68000 CPU 2 design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
