Pico pmod

MiSTle-Dev·Boards·pipico_pmod/pico_pmod.kicad_pcb

Pico pmod PCB layout, top view — open source board by MiSTle-Dev
Simulate this board

About the Pico pmod PCB

Pico pmod is an open source PCB design by MiSTle-Dev, published on GitHub. It is a 2-layer board measuring 61.4 × 23 mm, with 22 components from 13 distinct parts.

Other key parts include the USBLC6-2SC6 and EA2208. By type, the board carries 8 resistors, 5 diodes, 4 connectors, 2 ICs, 2 capacitors and 1 inductor.

From the project

Custom board designs for MiSTle projects

Features: PMOD carrier for a Raspberry Pi Pico W USB-C to e.g. USB-C HUB or HID dongle Debug header for Pico UART PMOD spare signals on Testpoints Status LED's CERN-OHL-S license

PCBA production files for JLCPCB are availble here. (Fully assembled boards can orderd based on BOM partlist, excluding the RP2040)

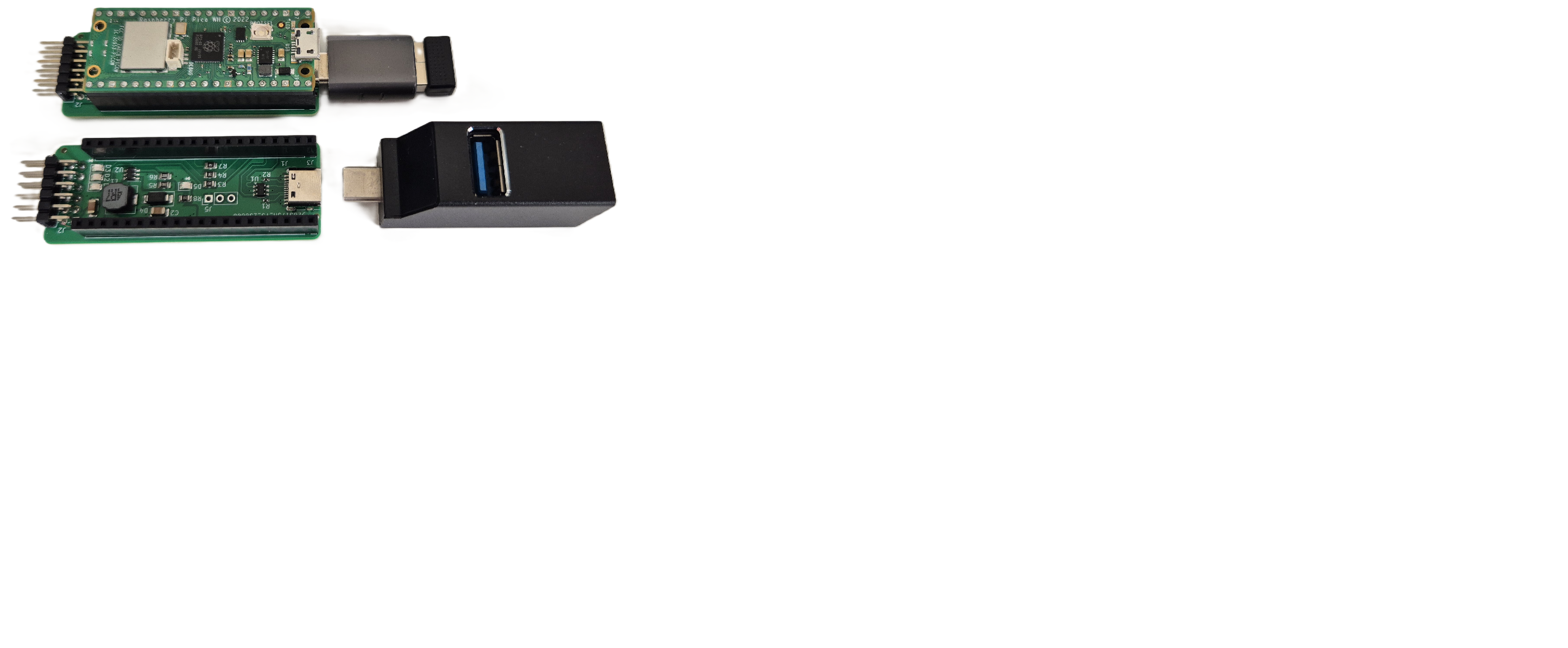

Pico pmod, from the project README
From the project README

Main components on the Pico pmod

USBLC6-2SC6EA2208

Pico pmod bill of materials (BOM)

22 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
EA2208
U2
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1
1
C60565
PMOD
J2
2
CONN_01X20_PIN
Conn_01x20_Pin
J3, J4
4
C2297
green
D1, D2, D3, D5
1
SS34
D4
1
4.7UH
4.7uH
L1
2
22UF
22uF
C1, C2
2
5K1
5k1
R1, R2
4
1K2
1k2
R3, R4, R7, R8
1
220K
220k
R5
1
30K
30k
R6

Pico pmod design files

The KiCad project lives in the MiSTle-Dev/Boards repository on GitHub; these links point at the commit this page was built from.

Pico pmod: common questions

How big is the Pico pmod PCB?

The Pico pmod measures 61.4 × 23 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pico pmod?

22 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pico pmod design files?

From the MiSTle-Dev/Boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pico pmod design in my own project?

The repository has no license, so all rights stay with MiSTle-Dev. Use it as a reference, and ask the author before reusing the design.
