MiSTle - GW3A LV20 LQ144 Development Board
About the MiSTle - GW3A LV20 LQ144 Development Board
MiSTle - GW3A LV20 LQ144 Development Board is an open source RP2040/RP2350 PCB design by MiSTle-Dev, published on GitHub. It is a 2-layer board measuring 110 × 67 mm, with 167 components from 52 distinct parts.
Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the SY8113BADC, W25Q64JVS, USBLC6-2SC6, CH334P and GW3A-LV20-Q144. By type, the board carries 65 capacitors, 60 resistors, 13 diodes, 11 ICs, 7 connectors and 3 crystals.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Custom board designs for MiSTle projects
This board is derived from the MiSTeryDev20k board which was the first full custom board designed for the MiSTle project.

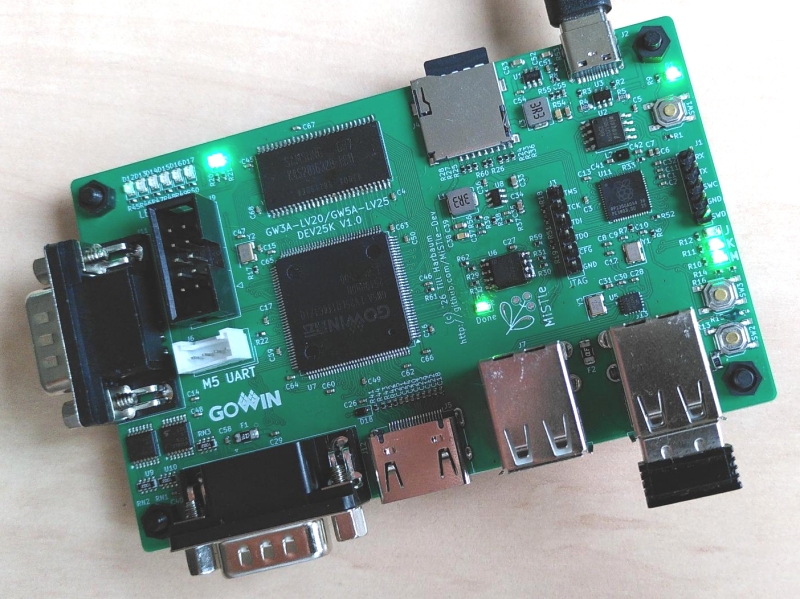

This board is a development board initially designed to test the upcoming GW3A-LV20 FPGA with the MiSTle retro computing cores. It can also be used with the existing GW5A-LV25 FPGA as seen in the image above.
The NanoMig and C64Nano had been prepared to run on the GW3A to ensure that the cores can be synthesized and especially to verify the pin mapping. Depiced above is the board with the GW5A-25K mounted and running the GW5A-LV25 variant of the NanoMig FPGA Core.
Main components on the MiSTle - GW3A LV20 LQ144 Development Board
MiSTle - GW3A LV20 LQ144 Development Board bill of materials (BOM)
167 components, 52 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SY8113BADC | TSOT-23-6 | U1, U8 |
| 2 | W25Q64JVS | SOIC-8_5.3x5.3mm_P1.27mm | U2, U6 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U3 |
| 1 | CH334P | QFN-16-1EP_3x3mm_P0.5mm_EP1.45x1.45mm_ThermalVias | U5 |
| 1 | GW3A-LV20-Q144 | LQFP-144_20x20mm_P0.5mm | U7 |
| 2 | 74LCX07 | TSSOP-14_4.4x5mm_P0.65mm | U9, U10 |
| 1 | RP2350_60QFN | RP2350-QFN-60-1EP_7x7_P0.4mm_EP3.4x3.4mm_ThermalVias | U11 |
| 1 | MT48LC16M16A2TG | TSOP-II-54_22.2x10.16mm_P0.8mm | U13 |
| 2 | 12MHZ 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1, Y3 |
| 1 | 50MHZ 50MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | C492404 SWD | PinHeader_1x05_P2.54mm_Vertical | J1 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J2 |
| 1 | MICRO_SD_CARD_DET1 Micro_SD_Card_Det1 | TF-015 | J4 |
| 1 | C720616 HDMI_A | HDMI_A_Molex_208658-1001_Horizontal | J5 |
| 2 | C456021 USB_A_Stacked | USB_A_Wuerth_61400826021_Horizontal_Stacked | J7, J13 |
| 1 | C271747 EXT | IDC-Header_2x05_P2.54mm_Vertical | J9 |
| 2 | 500MA 500mA | Fuse_1206_3216Metric | F1, F2 |
| 1 | C318884 Boot | SW_SPST_TL3342 | SW1 |
| 1 | KEY1 | SW_SPST_TL3342 | SW2 |
| 1 | KEY2 | SW_SPST_TL3342 | SW3 |
Show 32 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | C2297 green | LED_0805_2012Metric | D1, D6, D12, D13, D14, D15, D16, D17 |
| 1 | C2297 Mouse | LED_0805_2012Metric | D2 |
| 1 | C2297 Keyboard | LED_0805_2012Metric | D3 |
| 1 | C2297 Joystick | LED_0805_2012Metric | D4 |
| 1 | WS2812B-2020 | LED_WS2812B-2020_PLCC4_2.0x2.0mm | D5 |
| 1 | 1N5819WS | D_SOD-323 | D18 |
| 2 | 3.3UH 3.3uH | L_Sunlord_MWSA0402S | L1, L3 |
| 1 | 3.3U 3.3u | L_Changjiang_FTC201610D | L2 |
| 4 | 1UF 1uF | C_0402_1005Metric | C1, C6, C8, C29 |
| 44 | 100NF 100nF | C_0402_1005Metric | C2, C3, C4, C5, C11, C12, C13, C14 +36 |
| 2 | 10UF 10uF | C_0402_1005Metric | C7, C31 |
| 4 | 22PF 22pF | C_0402_1005Metric | C9, C10, C37, C55 |
| 3 | 4.7U 4.7u | C_0402_1005Metric | C32, C41, C42 |
| 2 | 10UF 10uF | C_0603_1608Metric | C33, C53 |
| 4 | 100NF 100nF | C_0603_1608Metric | C34, C39, C52, C57 |
| 2 | 22UF 22uF | C_0603_1608Metric | C38, C56 |
| 17 | 1k | R_0402_1005Metric | R1, R6, R7, R9, R10, R11, R12, R15 +9 |
| 2 | 5K1 5k1 | R_0402_1005Metric | R2, R3 |
| 2 | 27R | R_0603_1608Metric | R4, R5 |
| 2 | 30K 30k | R_0402_1005Metric | R8, R38 |
| 2 | 330 | R_0402_1005Metric | R13, R14 |
| 5 | 22 | R_0402_1005Metric | R17, R26, R51, R52, R60 |
| 8 | 4K7 4k7 | R_0402_1005Metric | R18, R19, R29, R31, R32, R59, R61, R62 |
| 1 | 100 | R_0402_1005Metric | R20 |
| 11 | 10K 10k | R_0402_1005Metric | R21, R23, R24, R25, R27, R28, R36, R41 +3 |
| 1 | 33 | R_0402_1005Metric | R33 |
| 2 | 47K 47k | R_0402_1005Metric | R37, R53 |
| 1 | C25752 12k 1% | R_0402_1005Metric | R39 |
| 1 | C25756 15k 1% | R_0402_1005Metric | R54 |
| 1 | C25890 3k3 1% | R_0402_1005Metric | R55 |
| 1 | C138044 18k 1% | R_0402_1005Metric | R56 |
| 3 | 10K 10k | R_Array_Concave_4x0603 | RN1, RN2, RN3 |
MiSTle - GW3A LV20 LQ144 Development Board design files
The KiCad project lives in the MiSTle-Dev/Boards repository on GitHub; these links point at the commit this page was built from.
MiSTle - GW3A LV20 LQ144 Development Board: common questions
What microcontroller does the MiSTle - GW3A LV20 LQ144 Development Board use?
The MiSTle - GW3A LV20 LQ144 Development Board is built around the RP2350_60QFN, from the RP2040/RP2350 family.
How big is the MiSTle - GW3A LV20 LQ144 Development Board?
The MiSTle - GW3A LV20 LQ144 Development Board measures 110 × 67 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MiSTle - GW3A LV20 LQ144 Development Board?
167 components, from 52 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MiSTle - GW3A LV20 LQ144 Development Board design files?
From the MiSTle-Dev/Boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MiSTle - GW3A LV20 LQ144 Development Board design in my own project?
The repository has no license, so all rights stay with MiSTle-Dev. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the MiSTle - GW3A LV20 LQ144 Development Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
