Misteryshield20k rpipico dual db9
MiSTle-Dev·Boards·misteryshield20k_rpipico_dual_db9/misteryshield20k_rpipico_dual_db9.kicad_pcb
About the Misteryshield20k rpipico dual db9 PCB
Misteryshield20k rpipico dual db9 is an open source PCB design by MiSTle-Dev, published on GitHub. It is a 2-layer board measuring 100 × 57 mm, with 73 components from 25 distinct parts.
Other key parts include the USB_C_RECEPTACLE_POWERONLY_6P and CH334U. By type, the board carries 32 resistors, 12 transistors, 9 connectors, 8 capacitors, 7 diodes and 2 ICs.
It belongs with the retro computing, audio and usb & debug tools designs in this gallery.
From the project
Custom board designs for MiSTle projects

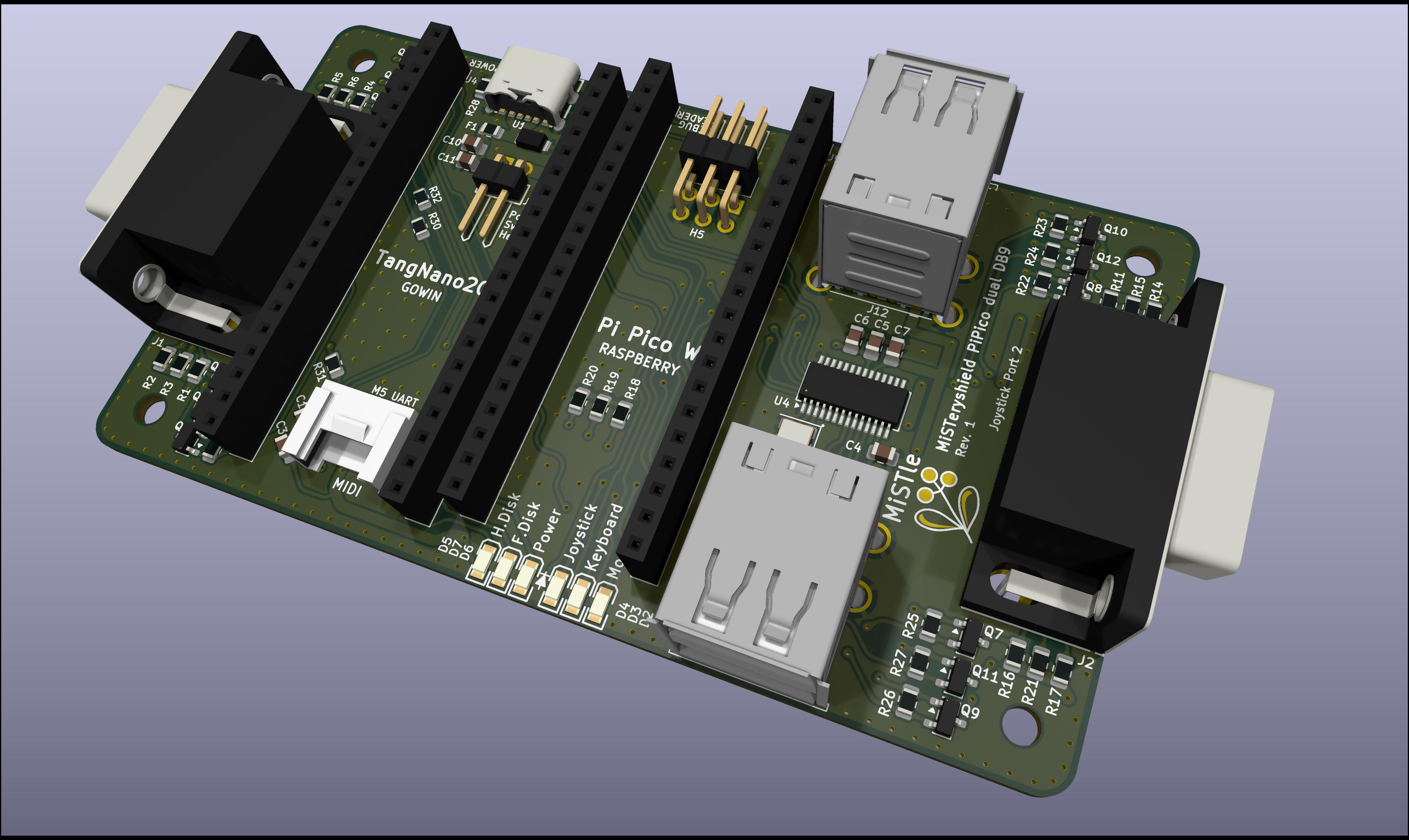

The shield is a modification of the original MiSTeryShield20k RPiPico USB board by Stefan Voss\ With kind permission & support! Manger
+ 2nd DB9 Joystick port on board + on board USB-C power receptacle (incl. fuse and ESD-protection) + pin header for case power switch (can be shorted if not needed) + Power + FDD + HDD activity LEDs (Red, Yellow, Green) + core loading from USB Thumbstick by Stefan Voss (some fine soldering is required!) + debug header (Tang & Pi) + MIDI optional on M5 Stack connector to be used with e.g. M5 SAM2695 MIDI, or M5 SAM2695 SYNTH

Main components on the Misteryshield20k rpipico dual db9
Misteryshield20k rpipico dual db9 bill of materials (BOM)
73 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_RECEPTACLE_POWERONLY_6P USB_C_Receptacle_PowerOnly_6P XUNPU(讯普) | TYPE-C-SMD_XUNPU_TYPEC-250C-BRP6 | U1 |
| 1 | CH334U | SSOP-28_3.9x9.9mm_P0.635mm | U4 |
| 12 | 2N7002 | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +4 |
| 1 | CRYSTAL_GND24 Crystal_GND24 | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 2 | D-DMR009PM-D002 | DSUB-TH_DMR-9P | J1, J2 |
| 4 | CONN_01X20_PIN Conn_01x20_Pin | PinSocket_1x20_P2.54mm_Vertical | J4, J7, J8, J9 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | HDR-TH_2P-P2.54-H-M-W10.4 | J5 |
| 2 | C456021 USB_A_Stacked | USB_A_Wuerth_61400826021_Horizontal_Stacked | J11, J12 |
| 1 | C70158 Reset Fuse 6V 2A | Fuse_0805_2012Metric | F1 |
| 1 | C2894983 2x3 Pinheader horizontal HCTL(华灿天禄) | HDR-TH_6P-P2.54-H-M-R2-C3-S2.54-W12.3-N | H5 |
| 1 | C151296 SMF5.0A (TVS DIODE 5V) | SOD-123_L2.7-W1.6-LS3.7-RD | D1 |
| 3 | C110371 orange | LED0805-RD | D2, D3, D4 |
| 1 | C2295 red | LED0805-RD | D5 |
| 1 | C2297 green | LED0805-RD | D6 |
| 1 | C2296 yellow | LED0805-RD | D7 |
| 4 | 100NF 100nF | C_0805_2012Metric | C1, C3, C6, C11 |
| 2 | 1UF 1uF | C_0805_2012Metric | C4, C7 |
| 1 | 10UF 10uF | C_0805_2012Metric | C5 |
| 1 | C45783 22µF | C_0805_2012Metric | C10 |
| 24 | 10K 10k | R_0805_2012Metric | R1, R2, R3, R4, R5, R6, R7, R8 +16 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 510 | R_0805_2012Metric | R18, R19, R20 |
| 2 | 5.1K | R_0805_2012Metric | R28, R29 |
| 1 | 470 | R_0805_2012Metric | R30 |
| 1 | 560 | R_0805_2012Metric | R31 |
| 1 | 430 | R_0805_2012Metric | R32 |
Misteryshield20k rpipico dual db9 design files
The KiCad project lives in the MiSTle-Dev/Boards repository on GitHub; these links point at the commit this page was built from.
Misteryshield20k rpipico dual db9: common questions
How big is the Misteryshield20k rpipico dual db9 PCB?
The Misteryshield20k rpipico dual db9 measures 100 × 57 mm, has 2 copper layers and is 1.59 mm thick.
How many components are on the Misteryshield20k rpipico dual db9?
73 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Misteryshield20k rpipico dual db9 design files?
From the MiSTle-Dev/Boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Misteryshield20k rpipico dual db9 design in my own project?
The repository has no license, so all rights stay with MiSTle-Dev. Use it as a reference, and ask the author before reusing the design.
