T20 pmod

MiSTle-Dev·Boards·t20_pmod/t20_pmod.kicad_pcb

T20 pmod PCB layout, top view — open source RP2040/RP2350 board by MiSTle-Dev
Simulate this board

About the T20 pmod PCB

T20 pmod is an open source RP2040/RP2350 PCB design by MiSTle-Dev, published on GitHub. It is a 2-layer board measuring 53.6 × 71.4 mm, with 15 components from 12 distinct parts.

Its main chip is the SY8113BADC, from the RP2040/RP2350 family. By type, the board carries 6 connectors, 6 resistors, 2 capacitors and 1 IC.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Custom board designs for MiSTle projects

This is an add-on for the Efinix T20BGA256 development board. It adds all components needed for a complete MiSTeryNano setup.

SD card slot PMOD connector for use with HDMI PMOD Raspberry Pi PICO USB-A host connector

The following additional items are required:

[](https://wiki.sipeed.com/hardware/en/tang/tang-PMOD/FPGAPMOD.html), or similar USB-A SD-card breakout 5x 22ohms 0805 resistors 1x 100nF and 1x 10uF 0805 capacitor 90 degree 2x06 pin 2.54mm socket (PMOD connector) 1x02 and 2x18 pin 2.54 pin socket (to plug into the bank header) * some 2.54mm pin headers or wires

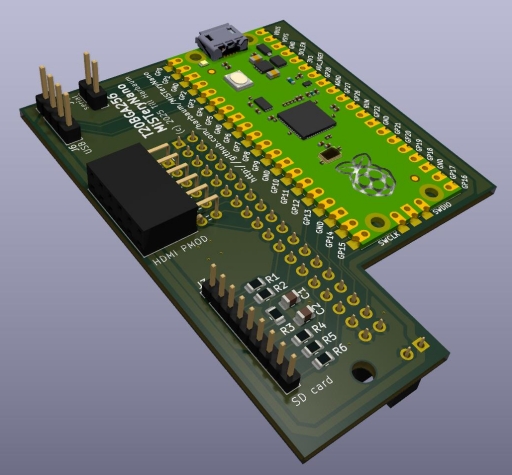

T20 pmod, from the project README
From the project README

Main components on the T20 pmod

SY8113BADC

T20 pmod bill of materials (BOM)

15 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SY8113BADC
Pico
U1
1
C492404
BANK 1B_1C
J1
1
USB_C_RECEPTACLE_USB2.0
PMOD HDMI
J2
1
SD card
J3
1
MICRO_SD_CARD_DET1
serial
J4
1
C720616
PWR
J5
1
USB Breakout
J6
1
1UF
100nF
C1
1
100NF
10µF
C2
2
22
R1, R6
2
5K1
22
R2, R3
2
27R
22
R4, R5

T20 pmod design files

The KiCad project lives in the MiSTle-Dev/Boards repository on GitHub; these links point at the commit this page was built from.

T20 pmod: common questions

What microcontroller does the T20 pmod use?

The T20 pmod is built around the SY8113BADC, from the RP2040/RP2350 family.

How big is the T20 pmod PCB?

The T20 pmod measures 53.6 × 71.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the T20 pmod?

15 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the T20 pmod design files?

From the MiSTle-Dev/Boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the T20 pmod design in my own project?

The repository has no license, so all rights stay with MiSTle-Dev. Use it as a reference, and ask the author before reusing the design.
