About the Misterydev20k PCB

Misterydev20k is an open source RP2040/RP2350 PCB design by MiSTle-Dev, published on GitHub. It is a 2-layer board measuring 90 × 67 mm, with 162 components from 51 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the SY8113BADC, W25Q64VS, USBLC6-2SC6, GW2AR-LV18-QN88 and W25Q64JVS. By type, the board carries 63 capacitors, 58 resistors, 12 diodes, 10 ICs, 7 connectors and 4 inductors.

It belongs with the usb & debug tools, audio and displays & leds designs in this gallery.

From the project

Custom board designs for MiSTle projects

This is the first complete custom board which does not need daughter boards like the Tang Nano 20k or the Raspberry Pi Pico.

The board features the Gowin GW2AR-LV18QN88C8/I7 FPGA present on the Tang Nano 20k and runs the same cores as that device including the NanoMig and MisteryNano.

This board can be manfactured through JLCPCBs assembly service using the production data.

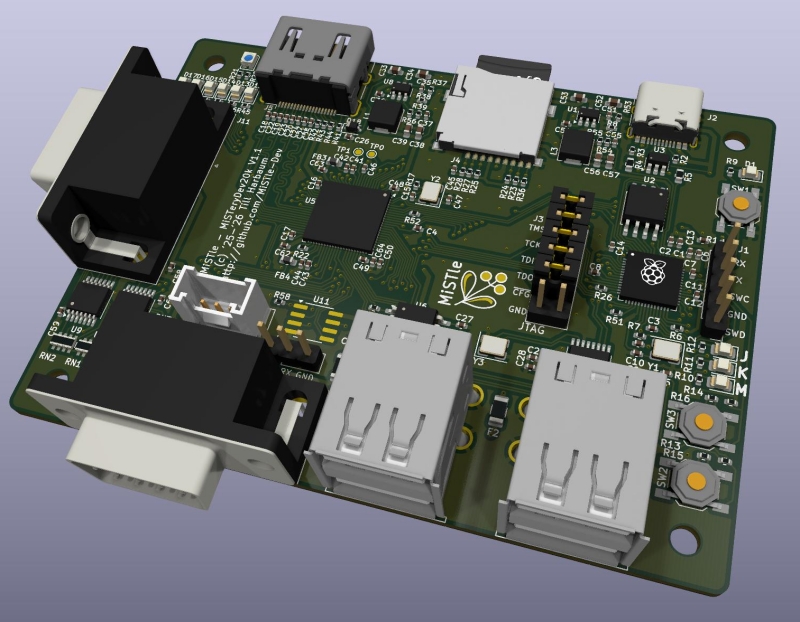

Misterydev20k, from the project README
From the project README

Main components on the Misterydev20k

SY8113BADCW25Q64VSUSBLC6-2SC6RP2040GW2AR-LV18-QN88W25Q64JVS74LCX07CH334R

Misterydev20k bill of materials (BOM)

162 components, 51 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
SY8113BADC
U1, U8
1
W25Q64VS
U2
1
USBLC6-2SC6
U3
1
RP2040
U4
1
GW2AR-LV18-QN88
U5
1
W25Q64JVS
U6
2
74LCX07
U9, U10
1
CH334R
U12
2
12MHZ
12MHz
Y1, Y3
1
27MHZ
27MHz
Y2
1
C492404
SWD
J1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J2
1
C32713279
Jumper block
J3
1
MICRO_SD_CARD_DET1
Micro_SD_Card_Det1
J4
1
C720616
HDMI_A
J5
2
C456021
USB_A_Stacked
J7, J13
2
500MA
500mA
F1, F2
1
C318884
Boot
SW1
1
KEY1
SW2
1
KEY2
SW3
Show 31 more
QtyPartRefs
7
C2297
green
D1, D12, D13, D14, D15, D16, D17
1
C2297
Mouse
D2
1
C2297
Keyboard
D3
1
C2297
Joystick
D4
1
WS2812B-2020
D5
1
1N5819WS
D18
2
MPZ1608S101
FB3, FB4
2
3.3UH
3.3uH
L1, L3
4
1UF
1uF
C1, C6, C8, C29
43
100NF
100nF
C2, C3, C4, C5, C11, C12, C13, C14 +35
4
10UF
10uF
C7, C31, C41, C43
4
22PF
22pF
C9, C10, C37, C55
2
10UF
10uF
C33, C53
4
100NF
100nF
C34, C39, C52, C57
2
22UF
22uF
C38, C56
6
1k
R1, R6, R7, R15, R16, R30
2
5K1
5k1
R2, R3
2
27R
R4, R5
2
30K
30k
R8, R38
11
560
R9, R10, R11, R12, R45, R46, R47, R48 +3
2
330
R13, R14
4
22
R17, R26, R51, R52
7
4K7
4k7
R18, R19, R29, R31, R32, R40, R58
1
100
R20
12
10K
10k
R21, R22, R23, R24, R25, R27, R28, R36 +4
2
47K
47k
R37, R53
1
C25752
12k 1%
R39
1
C25756
15k 1%
R54
1
C25890
3k3 1%
R55
1
C138044
18k 1%
R56
3
10K
10k
RN1, RN2, RN3

Misterydev20k design files

The KiCad project lives in the MiSTle-Dev/Boards repository on GitHub; these links point at the commit this page was built from.

Misterydev20k: common questions

What microcontroller does the Misterydev20k use?

The Misterydev20k is built around the RP2040, from the RP2040/RP2350 family.

How big is the Misterydev20k PCB?

The Misterydev20k measures 90 × 67 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Misterydev20k?

162 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Misterydev20k design files?

From the MiSTle-Dev/Boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Misterydev20k design in my own project?

The repository has no license, so all rights stay with MiSTle-Dev. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Misterydev20k without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
