MiSTle - Icepi-Zero Carrier

MiSTle-Dev·Boards·icepi_carrier/icepi_carrier.kicad_pcb

MiSTle - Icepi-Zero Carrier PCB layout, top view — open source RP2040/RP2350 board by MiSTle-Dev
Simulate this board

About the MiSTle - Icepi-Zero Carrier PCB

MiSTle - Icepi-Zero Carrier is an open source RP2040/RP2350 PCB design by MiSTle-Dev, published on GitHub. It is a 2-layer board measuring 42.8 × 81.8 mm, with 73 components from 31 distinct parts.

Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the W25Q64JVS, USBLC6-2SC6, CH334P and 74LCX07. By type, the board carries 24 capacitors, 23 resistors, 10 diodes, 6 ICs, 4 connectors and 2 crystals.

From the project

Custom board designs for MiSTle projects

This is a carrier/base board for the Icepi-Zero. It adds the FPGA Companion with its USB ports and two classic Dsub9 joystick ports.

The IcePi mounts face down onto the carrier which will then provide the IcePi with an RP2350 as FPGA Companion, two DB9 joystick/mouse ports and a few LEDs.

This carrier board is supported by the Lattice/IcePi port of NanoMig.

The RP2350 on the IcePi Carrier runs the PICO2 variant of the FPGA Companion firmware which is configured like so:

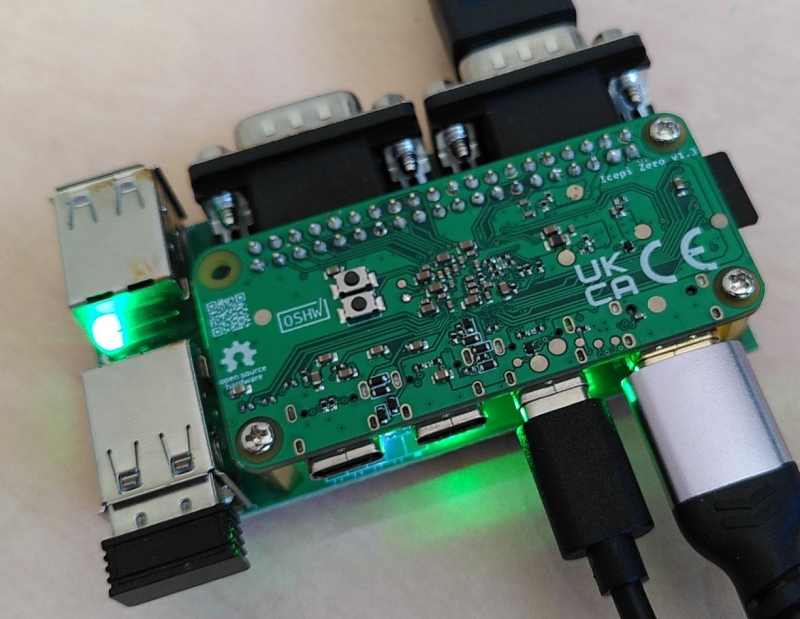

MiSTle - Icepi-Zero Carrier, from the project README
From the project README

Main components on the MiSTle - Icepi-Zero Carrier

W25Q64JVSUSBLC6-2SC6CH334P74LCX07RP2350_60QFN

MiSTle - Icepi-Zero Carrier bill of materials (BOM)

73 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q64JVS
U2
1
USBLC6-2SC6
U3
1
CH334P
U5
2
74LCX07
U9, U10
1
RP2350_60QFN
U11
2
12MHZ
12MHz
Y1, Y3
1
C492404
SWD
J1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J2
2
C456021
USB_A_Stacked
J7, J13
2
500MA
500mA
F1, F2
1
C318884
Boot
SW1
5
C2297
green
D1, D2, D3, D4, D12
1
WS2812B
D5
1
MBRA340
D6
2
C2296
yellow
D7, D13
1
C2295
red
D14
1
3.3U
3.3u
L2
4
1UF
1uF
C1, C6, C8, C29
13
100NF
100nF
C2, C3, C5, C11, C12, C13, C14, C28 +5
2
10UF
10uF
C7, C31
Show 11 more
QtyPartRefs
2
22PF
22pF
C9, C10
3
4.7U
4.7u
C32, C41, C42
11
1k
R1, R6, R7, R9, R10, R11, R12, R14 +3
2
5K1
5k1
R2, R3
2
27R
R4, R5
1
220
R13
1
100
R20
1
10K
10k
R21
1
33
R33
1
22
R51
3
10K
10k
RN1, RN2, RN3

MiSTle - Icepi-Zero Carrier design files

The KiCad project lives in the MiSTle-Dev/Boards repository on GitHub; these links point at the commit this page was built from.

MiSTle - Icepi-Zero Carrier: common questions

What microcontroller does the MiSTle - Icepi-Zero Carrier use?

The MiSTle - Icepi-Zero Carrier is built around the RP2350_60QFN, from the RP2040/RP2350 family.

How big is the MiSTle - Icepi-Zero Carrier PCB?

The MiSTle - Icepi-Zero Carrier measures 42.8 × 81.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MiSTle - Icepi-Zero Carrier?

73 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MiSTle - Icepi-Zero Carrier design files?

From the MiSTle-Dev/Boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MiSTle - Icepi-Zero Carrier design in my own project?

The repository has no license, so all rights stay with MiSTle-Dev. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MiSTle - Icepi-Zero Carrier without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
