Esp32 mine

mohamed-bekheet·PassPress·passpress-hardware/libs_ripos/Ducky-Board-ESP32-S3-main/Ducky-Board-ESP32-S3-main/esp32_mine.kicad_pcb

Esp32 mine PCB layout, top view — open source ESP32 board by mohamed-bekheet

About the Esp32 mine PCB

Esp32 mine is an open source ESP32 PCB design by mohamed-bekheet, published on GitHub. It is a 2-layer board measuring 36.1 × 68.9 mm, with 73 components from 37 distinct parts.

Its main chip is the ESP32-S3, from the ESP32 family. Other key parts include the W25Q128JVS, MCP73831-2-OT and AMS1117-3.3. By type, the board carries 28 capacitors, 22 resistors, 4 ICs, 4 connectors, 4 diodes and 3 inductors.

It belongs with the power & battery designs in this gallery.

From the project

This project is a custom-designed breakout board for the ESP32-S3 chip, created using KiCad 9. The board features native USB-C programming support, and includes an integrated Li-Ion battery charger,

This project is a custom-designed breakout board for the ESP32-S3 chip, created using KiCad 9. The board features native USB-C programming support, and includes an integrated Li-Ion battery charger,

Used for both power input and firmware flashing

Integrated charger IC with status indicators

Supports single-cell Li-Ion/LiPo batteries

-Includes schematics, PCB layout files, and Gerber files

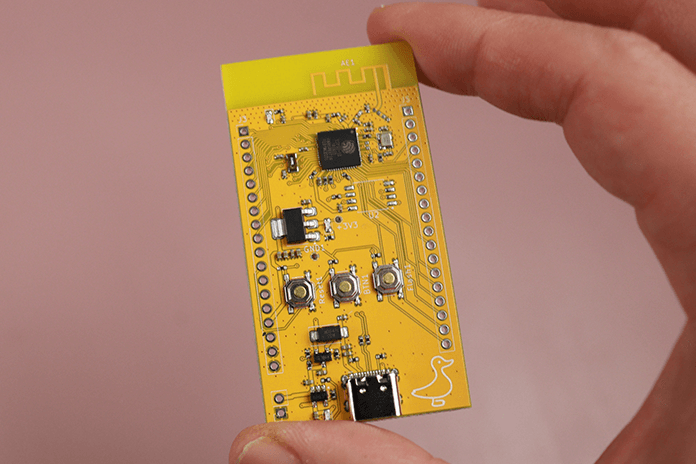

Esp32 mine, from the project README
From the project README

Main components on the Esp32 mine

ESP32-S3W25Q128JVSMCP73831-2-OTAMS1117-3.3

Esp32 mine bill of materials (BOM)

73 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3
U1
1
W25Q128JVS
U2
1
MCP73831-2-OT
U3
1
AMS1117-3.3
U4
1
AO3401A
Q1
1
32.768 kHz
Y1
1
40MHz(10ppm)
Y2
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
1
CONN_01X02_PIN
Conn_01x02_Pin
J2
2
CONN_01X18_PIN
Conn_01x18_Pin
J3, J5
1
Antenna
AE1
1
BTN
BTN1
1
15PF
15pF
DNP1
1
Flash
Flash1
1
Reset
Reset1
3
LED
D1, D2, D3
1
SS14
D4
1
2NH
2nH
L3
1
DNP
L5
1
4.7NH
4.7nH
L6
Show 17 more
QtyPartRefs
10
10UF
10uF
C2, C3, C6, C7, C8, C16, C17, C20 +2
4
12PF
12pF
C4, C33, C37, C38
8
0.1UF
0.1uF
C10, C11, C15, C18, C19, C22, C32, C35
3
1UF
1uF
C13, C26, C39
1
DNP
C14
1
15PF
15pF
C31
1
10NF
10nF
C40
1
2K
R1
2
33R
R2, R18
3
10K
R4, R21, R22
2
200K
R12, R19
2
5.1K
R14, R17
1
1K
R15
3
470R
R16, R24, R25
1
100K
R20
6
0R
R23, R26, R27, R28, R29, R30
1
DNP
R31

Esp32 mine design files

The KiCad project lives in the mohamed-bekheet/PassPress repository on GitHub; these links point at the commit this page was built from.

Esp32 mine: common questions

What microcontroller does the Esp32 mine use?

The Esp32 mine is built around the ESP32-S3, from the ESP32 family.

How big is the Esp32 mine PCB?

The Esp32 mine measures 36.1 × 68.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32 mine?

73 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32 mine design files?

From the mohamed-bekheet/PassPress repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32 mine design in my own project?

The repository has no license, so all rights stay with mohamed-bekheet. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32 mine without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
