Xc17 prom prog PCB layout, top view — open source FPGA board by msinger

About the Xc17 prom prog PCB

Xc17 prom prog is an open source FPGA PCB design by msinger, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 123 × 95 mm, with 281 components from 72 distinct parts.

Its main chip is the ICE40HX4K-TQ144, from the FPGA family. Other key parts include the W25Q32JVSSIM, LT3030, 93LC56B, FT2232HL and LM317. By type, the board carries 96 capacitors, 89 resistors, 22 transistors, 20 test points, 20 diodes and 18 ICs.

It belongs with the usb & debug tools designs in this gallery.

From the project

Programmer for Xilinx XC17xxx PROM chips.

XC17xxx PROM Programmer =======================

Tool for programming Xilinx XC17xxx families of PROM chips that are used for storing the configuration bitstream of the Spartan FPGA.

I developed this programmer to be able to program the PROM chips used in the Wide-Boy64. The Wide-Boy64 CGB uses the XC1701L, and the Wide-Boy64 AGB uses the XC17S20XL.

I originally thought that the Wide-Boy64 CGB uses the XC1701 chip (without the L at the end), because that's how those chips are labeled on their package. After buying some of those XC1701 chips and reading out their device ID, I realized that…

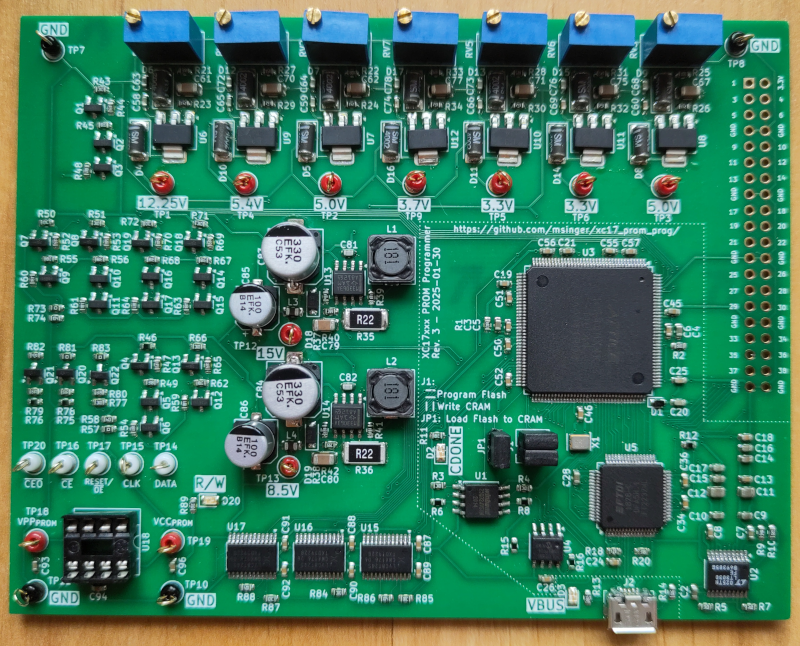

Xc17 prom prog, from the project README
From the project README
