LimeRFE
About the LimeRFE PCB
LimeRFE is an open source AVR/Arduino PCB design by myriadrf, published on GitHub. It is a board measuring 141.1 × 178.5 mm, with 1325 components from 413 distinct parts.
Its main chip is the ATMEGA328P-AU, from the AVR/Arduino family. Other key parts include the ADL5513, F1956NBGI8, HMC544AE, SKY13416-485LF and SKY13414-485LF. By type, the board carries 524 capacitors, 301 resistors, 169 ICs, 139 inductors, 95 connectors and 54 diodes.

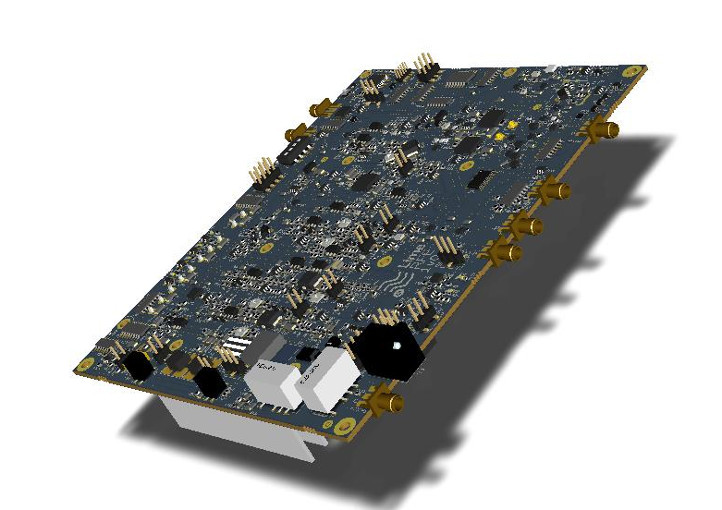

From the project
LimeRFE hardware design
The LimeRFE is an open hardware power amplifier (PA) module with appropriate filtering and support circuitry to augment the LimeSDR, LimeSDR Mini, and LimeNET Micro platforms, providing a complete solution that addresses real life applications ranging from HAM radio to standards-compliant cellular network implementations.
/archived// - Archived versions firmware/ - Corresponding firmware - Remaining structure as below
Main components on the LimeRFE
LimeRFE bill of materials (BOM)
1325 components, 413 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ADL5513 | ADL5513 | IC1, IC2 |
| 1 | F1956NBGI8 | F1956NBGI8 | U1 |
| 12 | HMC544AE | HMC544AE | U2, U3, U8, U29, U30, U38, U61, U63 +4 |
| 5 | SKY13416-485LF | 14QFN_SKY13416-485LF | U4, U35, U44, U86, U126 |
| 4 | SKY13414-485LF | 14QFN_SKY13414-485LF | U5, U9, U36, U99 |
| 1 | RD16HHF1 | RD16HHF1 | U6 |
| 2 | DRDC3105F-7 | DRDC3105F-7_SOT23 | U7, U138 |
| 3 | SKYA21003 | SKYA21003_12QFN | U10, U33, U37 |
| 2 | EE2-5NU-L | EE2-5NU-L | U11, U121 |
| 1 | ATMEGA328P-AU | ATMEGA328P-AU | U12 |
| 1 | FT232RL | FT232RL | U13 |
| 8 | SN74LV1T04 | SN74LV1T04 | U14, U114, U125, U127, U129, U141, U142, U167 |
| 5 | SN74LV1T34 | SN74LV1T34 | U15, U16, U104, U108, U133 |
| 1 | NCP702_3V0 | NCP702_TSOP5 | U17 |
| 1 | LD39200 | LD39200 | U18 |
| 3 | TPS62136RGXT | TPS62136RGXT | U19, U21, U90 |
| 1 | NCP349 | 6-DFN | U20 |
| 1 | NUP2202W1T2G | SC-88-6_NUP2202W1T2G | U22 |
| 4 | 74LVC1T45 | 74LVC1T45 | U23, U24, U25, U26 |
| 2 | ULN2003D1013TR | ULN2003D1013TR | U27, U28 |
Show 380 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | NCP331SNT1G | TSOP-6 | U31, U65, U73, U85, U88, U105, U120, U122 |
| 1 | LMC660CMX/NOPB | M14A | U32 |
| 1 | B39202B9477P810 | B39202B9477P810 | U34 |
| 1 | QPQ1297 | QPQ1297 | U39 |
| 1 | TQM963014 | TQM963014 | U40 |
| 1 | QPQ1282 | QPQ1282 | U41 |
| 1 | TQQ6107 | TQQ6107 | U42 |
| 1 | 885026 | 885026 | U43 |
| 1 | TQP3M9037 | TQP3M9037 | U45 |
| 2 | QPA9426 | QPA9426 | U46, U113 |
| 1 | HHM22137A2 | HHM22137A2 | U47 |
| 1 | QPA9419 | QPA9419 | U48 |
| 1 | HHM22139A2 | HHM22139A2 | U49 |
| 17 | TPS22810DBVR | SOT23_TPS22810DBVR | U50, U51, U53, U54, U55, U56, U80, U83 +9 |
| 3 | NCP702_2V8 | NCP702_TSOP5 | U52, U87, U106 |
| 1 | RFGA2054 | SOT89_RFGA2054 | U57 |
| 3 | MASW-008566-TR3000 | MASW-008566-TR3000 | U58, U59, U91 |
| 11 | 74LV164D,118 | 74LV164D,118 | U60, U62, U68, U75, U76, U89, U92, U116 +3 |
| 2 | 74LVC1G08GW | 74LVC1G08GW_TSSOP-5 | U64, U69 |
| 1 | GALI-74+ | SOT89 | U66 |
| 2 | SKY13415-485LF | 14QFN_SKY13415-485LF | U67, U140 |
| 1 | BP0805A1308ASTR | BP0805A1308ASTR | U70 |
| 2 | DEA252400BT-2030A1 | DEA252400BT-2030A1 | U71, U148 |
| 1 | 3600BP14M0600T | 3600BP14M0600T | U72 |
| 1 | ADL5611ARKZ-R7 | SOT89_ADL5611ARKZ-R7 | U74 |
| 2 | SN74LVCH8T245PWR | SN74LVCH8T245PWR | U77, U78 |
| 2 | QPA6489A | SOT89_QPA6489A | U79, U81 |
| 1 | MMZ38333BT1 | MMZ38333BT1 | U82 |
| 1 | LFCN-1450+ | LFCN-1450+ | U84 |
| 1 | SKY13418-485LF | 14QFN_SKY13418-485LF | U94 |
| 1 | 2450LP14B100T | 2450LP14B100T | U95 |
| 1 | DEA163800LT-5017C1 | DEA163800LT-5017C1 | U96 |
| 3 | AFT09MS007NT1 | SMD_AFT09MS007NT1 | U97, U103, U144 |
| 8 | RD01MUS2B | RD01MUS2B | U101, U107, U109, U111, U124, U152, U154, U156 |
| 1 | NCP163ASN250T1G_NF | SOT23_NCP163ASN250T1G | U112 |
| 2 | TC74HC04AF | TC74HC04AF | U115, U137 |
| 1 | MAAM-009286 | SOT89_MAAM-009286 | U123 |
| 1 | SKY13370-374LF | SKY13370-374LF_6QFN | U128 |
| 1 | FSA5157P6X | FSA5157P6X | U130 |
| 1 | F6QA1G842M2AN-J | F6QA1G842M2AN-J | U131 |
| 1 | B39212B9451P810 | B39212B9451P810 | U132 |
| 1 | F6QA2G655M2QH-J | F6QA2G655M2QH-J | U136 |
| 1 | B39921B3728U410 | B39921B3728U410 | U139 |
| 1 | RFM04U6P | RFM04U6P_SOT89 | U145 |
| 1 | 0915LP15B026E | 0915LP15B026E | U146 |
| 1 | SN74LVC2G02DCUR | SN74LVC2G02DCUR_VSSOP-8 | U147 |
| 1 | NF_PAT1220-C-3DB-T5 | PAT1220-C-3DB-T5 | U149 |
| 1 | MADL-011008-14120T | MADL-011008-14120T | U150 |
| 2 | PAT1220-C-3DB-T5 | PAT1220-C-3DB-T5 | U151, U163 |
| 1 | F6QA1G950M2AA-J | F6QA1G950M2AA-J | U160 |
| 1 | NF_PAT1220-C-5DB-T5 | PAT1220-C-5DB-T5 | U161 |
| 1 | MADL-011021-14150T | MADL-011021-14150T | U162 |
| 1 | F6QA1G880M2AQ-J | F6QA1G880M2AQ-J | U164 |
| 1 | F6QA1G747M2QS-J | F6QA1G747M2QS-J | U165 |
| 1 | F6KA2G535L4AM-Z | F6KA2G535L4AM-Z | U166 |
| 4 | BSN20 | BSN20 | Q1, Q2, Q7, Q8 |
| 4 | BC847 | BC817_SOT-23 | Q3, Q4, Q5, Q6 |
| 1 | CSTNE16M0V530000R0 | CSTNE16M0V530000R0 | X1 |
| 1 | 47346-0001 | USB-MINI-B | CON1 |
| 7 | SMA_H_v3 | SMA_v2 | J1, J2, J3, J4, J5, J17, J18 |
| 4 | TSM-103-04-L-SV | TSM-103-04-L-SV | J6, J7, J19, J22 |
| 2 | TSM-103-04-F-DV | TSM-103-04-F-DV | J8, J11 |
| 3 | M20-8770342 | M20-8770342 | J9, J10, J33 |
| 1 | M50-3600542 | PIN_HEADER_2X5 | J12 |
| 1 | TSM-104-04-T-DV | TSM-104-04-T-DV | J13 |
| 9 | TSM-102-04-T-SV | TSM-102-04-T-SV | J14, J20, J24, J25, J26, J27, J29, J31 +1 |
| 1 | Screw_Terminal_1x02 | CONN_1757242 | J15 |
| 1 | Screw_Terminal_1x08 | CONN_1757307 | J16 |
| 2 | UMC_SMD | UMC_SMD | J21, J28 |
| 1 | RAPC712X | RAPC712X | J23 |
| 2 | PIN_HEADER_2X2_SSM-102-L-DV-K-TR | PIN_HEADER_2X2_SSM-102-L-DV-K-TR | J30, J32 |
| 13 | Jumper_SNM-100-BK-T | SNM-100-BK-T | J34, J35, J37, J38, J39, J40, J41, J42 +5 |
| 1 | FAN_CONN_3 | FAN_CONN_3 | P1 |
| 46 | probe_v1 | probe_v1 | P2, P5, P6, P7, P8, P9, P14, P15 +38 |
| 1 | Fuse_3405.0174.11 | 3405.0174.11 | F1 |
| 1 | HEAT_SINK_558-75AB | HEAT_SINK_558-75AB | H1 |
| 1 | RF_SHIELD_3600213120S | RF_SHIELD_3600213120S | S1 |
| 3 | CLIP_STRAIGHT_S1001-46R | CLIP_STRAIGHT_S1001-46R | S2, S5, S6 |
| 2 | CLIP_ANGLE_S0981-46R | CLIP_ANGLE_S0981-46R | S3, S7 |
| 1 | RF_SHIELD_36003160S | RF_SHIELD_36003160S | S4 |
| 1 | SW_PUSH | B3U-1000P | SW1 |
| 1 | ADE04S04 | ADE04S04 | SW2 |
| 2 | 744889020100 | 744889020100 | T1, T2 |
| 1 | LED0603_RED | LED_0603 | D1 |
| 10 | LED0603_GREEN | LED_0603 | D2, D3, D7, D8, D9, D10, D11, D13 +2 |
| 2 | NSR20F30NXT5G | NSR20F30NXT5G | D4, D5 |
| 1 | NSR20F30NXT5G_NF | NSR20F30NXT5G | D6 |
| 1 | GSOT03-E3-08 | GSOT03-E3-08 | D12 |
| 11 | ZENER_Diode_5.09V_CDZFHT2RA5.1B | VMN2 | D15, D16, D20, D21, D22, D28, D37, D40 +3 |
| 22 | Diode_BAS16HT1G | BAS16HT1G | D17, D19, D23, D26, D27, D29, D30, D31 +14 |
| 1 | NF_ZENER_Diode_5.09V_CDZFHT2RA5.1B | VMN2 | D18 |
| 2 | NF_Diode_BAS16HT1G | BAS16HT1G | D24, D25 |
| 2 | Schottky_Diode_PMEG045V100EPDZ | PMEG045V100EPDZ | D52, D54 |
| 1 | ZENER_Diode_5.3V_P6SMB18CA | P6SMB18CA | D53 |
| 1 | FB_60R_0805_MMZ2012Y600BT000 | SMD0805 | FB1 |
| 1 | 10uH_0603_TDK | SMD0603 | FB2 |
| 10 | FB_600R_0805_MPZ2012S601AT000 | SMD0805 | FB3, FB4, FB5, FB6, FB7, FB8, FB9, FB10 +2 |
| 1 | 100uF_Ferrite_1812FS-104JLC | SMD_1812FS-104JLC | FB16 |
| 3 | SPM6530T-2R2M | SPM6530T-2R2M | L1, L2, L119 |
| 2 | 10nH_0402_LQW15AN10NG0ZD | SMD0402 | L3, L121 |
| 2 | 18nH_0603_LQW18AN18NG00D | SMD0603 | L4, L71 |
| 1 | 82nH_0805_LQW2BAS82NJ00L | SMD0805 | L5 |
| 2 | 10u_0805 | SMD0805 | L6, L7 |
| 2 | 180nH_0805 | SMD0805 | L8, L15 |
| 3 | 12nH_0805 | SMD0805 | L9, L16, L34 |
| 2 | 47nH_0805 | SMD0805 | L10, L14 |
| 2 | 100nH_0805 | SMD0805 | L11, L13 |
| 1 | 56nH_0805 | SMD0805 | L12 |
| 1 | 6.8nH_0603_Murata_LQW | SMD0603_gap05 | L17 |
| 3 | 1.8uH_1008 | SMD1008_inductor | L18, L21, L24 |
| 2 | 2.2uH_1008 | SMD1008_inductor | L19, L22 |
| 1 | 210nH_0603_0603CS-R21XGLU | SMD0603 | L20 |
| 1 | 200nH_0603_0603HP-R20XGLU | SMD0603 | L23 |
| 1 | 1.2uH_1008 | SMD1008_inductor | L25 |
| 1 | 51nH_0603_0603HP-51NXJLU | SMD0603 | L26 |
| 1 | 390nH_0603_0603HP-R39XGLU | SMD0603 | L27 |
| 1 | 120nH_0603_0603HP-R12XJLW | SMD0603 | L28 |
| 1 | 18nH_0603_0603HP-18NXGLU | SMD0603 | L29 |
| 1 | 250nH_0603_0603HP-R25XGLU | SMD0603 | L30 |
| 1 | 27nH_0603_0603HP-27NXJLW | SMD0603 | L31 |
| 2 | 330nH_0805 | SMD0805 | L32, L36 |
| 1 | 39nH_0805 | SMD0805 | L33 |
| 2 | 27nH_0805 | SMD0805 | L35, L44 |
| 1 | 4.7nH_0805_0805HT-4N7TJLC | SMD0805 | L37 |
| 2 | 15nH_0805_0805HT-15NTJLB | SMD0805 | L38, L48 |
| 1 | 47nH_0805_0805HT-47NTJLB | SMD0805 | L39 |
| 1 | 9.1nH_0805_0805HT-9N1TJLB | SMD0805 | L40 |
| 1 | 1.8nH_0805_0805HT-1N8TJLC | SMD0805 | L41 |
| 1 | 56nH_0402_LQG15HS56NJ02D | SMD0402 | L42 |
| 1 | 270nH_0402_LQG15HSR27J02D | SMD0402 | L43 |
| 1 | 22nH_0805 | SMD0805 | L45 |
| 1 | 18nH_0805 | SMD0805 | L46 |
| 1 | 10nH_0805_0805HT-10NTJLC | SMD0805 | L47 |
| 1 | 68nH_0805_LQW2BAS68NG00L | SMD0805 | L49 |
| 8 | 27nH_0603_LQG18HN27NJ00D | SMD0603 | L50, L59, L64, L66, L92, L94, L96, L99 |
| 8 | 78nH_0805_0805LS-78NXJLB | SMD0805 | L51, L56, L58, L65, L67, L93, L95, L97 |
| 1 | 12nH_1008_1008HQ-12NXJLB | SMD1008 | L52 |
| 1 | 1.15nH_0604_0604HQ-1N1XJLB | SMD0604 | L53 |
| 1 | 68nH_0603_0603CS-68NXGLU | SMD0603 | L54 |
| 1 | 25nH_0402_LQW15AN25NJ80D | SMD0603 | L55 |
| 1 | 33uH_1210_CBC3225T330KR | SMD1210 | L57 |
| 1 | 4.5nH_0604_0604HQ-4N5XJLB | SMD0604 | L60 |
| 1 | 500nH_0402_LQW15CAR50K00D | SMD0402 | L61 |
| 1 | 5.6nH_0805_0805HQ-5N6XJLC | SMD0805 | L62 |
| 1 | 3.9nH_0805_0805HT-3N9TJLB | SMD0805 | L63 |
| 1 | 780pH_0402_0402PA-0N8XJLW | SMD0402 | L69 |
| 1 | 18uF_1008_1008LS-183XJLB | SMD1008 | L70 |
| 3 | 10nH_0603_0603HP-10NXGLW | SMD0603 | L72, L82, L126 |
| 2 | 220nH_0805_0805HP-221XGRB | SMD0805 | L73, L104 |
| 2 | 180nH_0805_0805HP-181XGRB | SMD0805 | L74, L105 |
| 2 | 56nH_0805_0805HP-56NXGRB | SMD0805 | L75, L106 |
| 2 | 150nH_0805_0805HP-151XGRB | SMD0805 | L76, L107 |
| 2 | 82nH_0805_0805HP-82NXJRB | SMD0805 | L77, L108 |
| 1 | 2.4nH_0402_0402CS-2N4XGLU | SMD0402 | L78 |
| 1 | 3.9nH_0603_LQW | SMD0603 | L79 |
| 1 | 2.2nH_0603_LQW_NF | SMD0603 | L80 |
| 1 | 12nH_0603_Murata_LQW | SMD0603 | L81 |
| 1 | 33nH_0402_LQG15HS33NJ02D | SMD0402 | L83 |
| 2 | 5.1nH_0402_LQG15HS5N1S02D | SMD0402 | L84, L86 |
| 1 | 12nH_0402_LQG15HS12NH02D | SMD0402 | L85 |
| 1 | 24nH_0603_0603HP-24NXGLU | SMD0603 | L87 |
| 1 | 39nH_0603_0603HP-39NXGLU | SMD0603 | L88 |
| 2 | 72nH_0603_0603HP-72NXGLU | SMD0603 | L89, L90 |
| 1 | 100nH_0603_0603HP-R10XJLU | SMD0603 | L91 |
| 1 | 24nH_0603_Murata_LQW18 | SMD0603_gap05 | L98 |
| 1 | 10nH_0805_Murata | SMD0805 | L100 |
| 1 | 11nH_0603_Coilcraft_0603HP | SMD0603_gap05 | L101 |
| 1 | 30nH_0603_Coilcraft_0603HP | SMD0603_gap05 | L102 |
| 1 | 75nH_0603_Coilcraft_0603HP | SMD0603_gap05 | L103 |
| 1 | 2.2nH_0603_Murata_LQW | SMD0603_gap05 | L109 |
| 1 | 12nH_0603_Murata_LQW | SMD0603_gap05 | L110 |
| 1 | 12nH_0805_Murata_LQW | SMD0603_gap05 | L111 |
| 1 | 360nH_0603_Coilcraft_0603HP_NF | SMD0603 | L112 |
| 1 | 3.6nH_0603_Coilcraft_0603HP | SMD0603_gap05 | L113 |
| 1 | 470nH_0805_0805LS-471XGLB | SMD0805 | L114 |
| 1 | 68nH_0603_0603CS-68NXJLW | SMD0603 | L115 |
| 1 | 18nH_0603_0603CS-18NXJLW | SMD0603 | L116 |
| 1 | 6.8nH_0603_0603CS-6N8XJLW | SMD0603 | L117 |
| 1 | 56nH_0603_0603CS-56NXJLW | SMD0603 | L118 |
| 1 | 5.1nH_0402_LQW15AN25NJ80D | SMD0603 | L120 |
| 1 | 6.8nH_0402_LQW15AN6N8G0ZD | SMD0402 | L122 |
| 1 | 7.5nH_0402_LQW15AN7N5G0ZD | SMD0402 | L123 |
| 1 | 4.7nH_0402_LQG15HS4N7S02D | SMD0402 | L124 |
| 1 | 4.3nH_0402_LQG15HS4N3S02D | SMD0402 | L125 |
| 1 | 3.3nH_0603_0603HP-3N3XJLW | SMD0603 | L127 |
| 14 | 47nF_0402_GCM155R71H473KE02D | SMD0402 | C1, C2, C3, C4, C5, C6, C59, C61 +6 |
| 33 | 1uF_0603_TMK107BJ105KA-T | SMD0603 | C7, C10, C11, C13, C33, C34, C36, C38 +25 |
| 1 | 4.7uF_0402_GRM155R60J475ME87D | SMD0402 | C8 |
| 32 | 100nF_0402_GRM155R71C104KA88J | SMD0402 | C9, C12, C14, C27, C28, C107, C111, C121 +24 |
| 3 | 1uF_0402_CC0402ZRY5V5BB105 | SMD0402 | C15, C18, C30 |
| 11 | 10uF_0603_GRM188R61E106KA73J | SMD0603 | C16, C20, C21, C23, C25, C26, C29, C69 +3 |
| 3 | 2.2nF_0402_GRM155R71E222KA01D | SMD0402 | C17, C24, C393 |
| 20 | 0.1uF_0402_Murata | SMD0402 | C19, C22, C70, C73, C75, C76, C100, C103 +12 |
| 1 | 3.9nF_0402_04025C392JAT2A | SMD0402 | C31 |
| 1 | 100uF_25V_EEE-1EA101UP | EEE-HC1E101P | C32 |
| 9 | C1206C104K5RAC7800 | SMD1206 | C35, C37, C39, C41, C43, C45, C47, C48 +1 |
| 8 | NF_0603 | SMD0603 | C52, C53, C54, C55, C56, C57, C71, C72 |
| 17 | 1uF_0402_GCM155C71A105KE38D | SMD0402 | C58, C60, C74, C118, C119, C122, C124, C126 +9 |
| 2 | 1nF_0603_Murata | SMD0603 | C67, C68 |
| 9 | 10uF_1206_Tantalum_Kemet | SMD1206_TANTAL | C77, C84, C85, C92, C330, C339, C515, C521 +1 |
| 6 | 0.1uF_0603_Murata | SMD0603 | C78, C83, C86, C91, C331, C338 |
| 6 | 1nF_0603_Murata_GCJ | SMD0603 | C79, C82, C87, C90, C332, C337 |
| 2 | 0.01uF_0603_Murata | SMD0402 | C80, C88 |
| 3 | 100pF_0603_Murata_GCM | SMD0603 | C81, C89, C334 |
| 33 | 1nF_0603_06035C102KAT2A | SMD0603 | C93, C94, C96, C97, C98, C99, C101, C102 +25 |
| 4 | 10uF_0805_25V_Taiyo | SMD0805 | C95, C198, C278, C281 |
| 47 | 100nF_0603_C0603C104M5RACTU | SMD0603 | C108, C109, C177, C180, C184, C194, C195, C199 +39 |
| 6 | 1000pF_0402_Murata | SMD0402 | C112, C114, C116, C282, C285, C360 |
| 19 | 100pF_0402_GCM1555C1H101JA16D | SMD0402 | C113, C233, C245, C256, C274, C277, C300, C318 +11 |
| 2 | 100pF_0402_Murata | SMD0402 | C115, C346 |
| 1 | 1uF_0603_Yageo | SMD0603 | C120 |
| 2 | 15pF_0402_GJM1555C1H150FB01D | SMD0402 | C127, C133 |
| 2 | 56pF_0402_GRM1555C1H560GA01D | SMD0402 | C128, C132 |
| 2 | 27pF_0402_04025U270GAT2A | SMD0402 | C129, C131 |
| 1 | 51pF_0402_GRM1555C1H510JA01D | SMD0402 | C130 |
| 1 | 2200pF_0603_GRM1885C1H222GA01D | SMD0603 | C134 |
| 1 | 4700pF_0603_GRM1887U1H472JA01D | SMD0603 | C135 |
| 11 | 1000pF_0402_GRM1555C1H102GA01D | SMD0402 | C136, C138, C156, C157, C159, C501, C502, C503 +3 |
| 1 | 3300pF_0402_GRM155R71H332JA01D | SMD0402 | C137 |
| 1 | 15000pF_0603_06035C153KAT2A | SMD0603 | C139 |
| 8 | 1500pF_0603_GRM1885C1H152JA01D | SMD0603 | C140, C192, C306, C376, C377, C378, C451, C456 |
| 1 | 6.4pF_0402_GRM1555C1H6R4BA01D | SMD0402 | C145 |
| 2 | 33pF_0402_GCM1555C1H330FA16J | SMD0402 | C146, C254 |
| 1 | 120pF_0402_GCM1555C1H121FA16D | SMD0402 | C147 |
| 3 | 3.6pF_0402_GJM1555C1H3R6WB01D | SMD0402 | C148, C151, C167 |
| 1 | 43pF_0402_GRM1555C1H430GA01D | SMD0402 | C149 |
| 1 | 22pF_0402_GCM1555C1H220GA16D | SMD0402 | C150 |
| 1 | 18pF_0402_GRM1555C1H180JA01D | SMD0402 | C152 |
| 1 | 6.7pF_0402_GRM1555C1H6R7DA01D | SMD0402 | C153 |
| 1 | 6.6pF_0402_GRM1555C1H6R6BA01D | SMD0402 | C154 |
| 1 | 33pF_0402_GRM1555C1H330GA01J | SMD0402 | C155 |
| 1 | 30pF_0402_GJM1555C1H300FB01D | SMD0402 | C162 |
| 1 | 7pF_0402_GJM1555C1H7R0WB01D | SMD0402 | C164 |
| 2 | 12pF_0402_GCQ1555C1H120GB01D | SMD0402 | C165, C168 |
| 1 | 20pF_0402_GJM1555C1H200FB01D | SMD0402 | C166 |
| 1 | 3pF_0402_GJM1555C1H3R0BB01D | SMD0402 | C169 |
| 2 | 4.7pF_0402_GJM1555C1H4R7CB01D | SMD0402 | C170, C173 |
| 1 | 8pF_0402_GCM1555C1H8R0BA16D | SMD0402 | C171 |
| 1 | 1.5pF_0402_GJM1555C1H1R5CB01D | SMD0402 | C172 |
| 5 | 100pF_0603_GRM1885C1H101JA01J | SMD0603 | C174, C205, C227, C229, C230 |
| 3 | 82pF_0603_GRM1885C1H820JA01D | SMD0603 | C175, C326, C471 |
| 1 | 15pF_0603_C0603C150J5GACTU | SMD0603 | C176 |
| 1 | 10pF_0603_GRM1885C1H100JA01J | SMD0603 | C178 |
| 15 | 27pF_0603_C0603C270J5GAC | SMD0603 | C179, C197, C201, C212, C238, C248, C252, C259 +7 |
| 17 | 100pF_0603_GRM1885C2A101JA01D | SMD0603 | C181, C185, C196, C200, C211, C218, C222, C247 +9 |
| 4 | 470nF_0805 | SMD0805 | C182, C186, C235, C237 |
| 6 | 47pF_0603_GRM1885C2A470JA01J | SMD0603 | C183, C249, C260, C422, C433, C444 |
| 2 | 68pF_0603_GRM1885C1H680JA01D | SMD0603 | C188, C191 |
| 1 | 39pF_0603_GRM1885C1H390JA01D | SMD0603 | C190 |
| 4 | 15pF_0603_KEMET | SMD0603 | C206, C207, C239, C240 |
| 1 | 100uF_25V_Tantalum_AVX | TAJE107M025SNJV | C208 |
| 4 | 1uF_0805 | SMD0805 | C209, C244, C298, C341 |
| 1 | NF_100nF_0603_C0603C104M5RACTU | SMD0603 | C217 |
| 2 | 91pF_0805 | SMD0805 | C219, C220 |
| 3 | 5.6pF_0402_04023J5R6BBWTR | SMD0402 | C231, C512, C520 |
| 1 | 100pF_0603_Murata2 | SMD0603 | C234 |
| 1 | 47pF_0603_KEMET | SMD0603 | C236 |
| 1 | 100nF_0805_08055C104KAT2A | SMD0805 | C243 |
| 4 | 56pF_0402_GCM1555C1H560JA16D | SMD0402 | C268, C269, C310, C412 |
| 3 | 22pF_0402_CC0402JRNPO9BN220 | SMD0402 | C270, C371, C411 |
| 1 | 500f_0402_GRM1555C2AR50BA01D | SMD0402 | C271 |
| 1 | 10uF_0805_TMK212BBJ106MG-T | SMD0805 | C288 |
| 3 | 10uF_1206_Taiyo | SMD1206 | C289, C307, C329 |
| 4 | 1nF_0402 | SMD0402 | C290, C296, C513, C517 |
| 1 | 10nF_0603_C0603C103J5RAC | SMD0603 | C291 |
| 2 | 1pF_0402_GCQ1555C1H1R0BB01D | SMD0402 | C292, C408 |
| 2 | 1uF_0603 | SMD0603 | C293, C374 |
| 1 | 18pF_0402_GCQ1555C1H180FB01D | SMD0402 | C295 |
| 1 | 330pF_0402_GCM1555C1H331FA16D | SMD0402 | C314 |
| 2 | 68pF_0402_GCM1555C1H680JA16J | SMD0402 | C320, C465 |
| 2 | 15pF_0402_GJM1555C1H150JB01D | SMD0402 | C321, C466 |
| 4 | 120pF_0603_GRM1885C2A121JA01D | SMD0603 | C322, C324, C467, C469 |
| 2 | 20pF_0402_GJM1555C1H200GB01D | SMD0402 | C323, C468 |
| 2 | 4.3pF_0402_GCM1555C1H4R3CA16D | SMD0402 | C325, C470 |
| 1 | 0.01uF_0603_Murata | SMD0603 | C333 |
| 3 | 15pF_0402_Murata | SMD0402 | C344, C347, C348 |
| 1 | 2.7pF_0603_KEMET | SMD0603 | C349 |
| 2 | 3.9pF_0603_KEMET | SMD0603 | C350, C352 |
| 1 | 120pF_0603_KEMET | SMD0603 | C351 |
| 1 | 22pF_0603 | SMD0402 | C353 |
| 1 | 1.5pF_0603_KEMET | SMD0603 | C354 |
| 1 | 330pF_0603_GCM1885C2A331FA16D | SMD0603 | C355 |
| 1 | 5.6pF_0603_CBR06C569D5GAC | SMD0603 | C356 |
| 1 | 1pF_0603_Kemet | SMD0603 | C357 |
| 1 | 56pF_0402_GCM1555C1H560FA16D | SMD0402 | C366 |
| 3 | 27pF_0402_GCM1555C1H270FA16D | SMD0402 | C367, C410, C413 |
| 1 | 7.3pF_0402_GJM1555C1H7R3BB01D | SMD0402 | C372 |
| 2 | 1000pF_0402_GRM1555C1H102FA01D | SMD0402 | C373, C375 |
| 2 | 47nF_0603_Kemet | SMD0603 | C379, C380 |
| 1 | 120pF_0603_KEMET | SMD0603_gap05 | C381 |
| 1 | 18pF_0603_Kemet | SMD0603_gap05 | C382 |
| 1 | 15pF_0603_Kemet | SMD0603_gap05 | C384 |
| 1 | 8.2pF_0603_Kemet | SMD0603_gap05 | C385 |
| 1 | 4pF_0603_Kemet | SMD0603_gap05 | C387 |
| 1 | 3.1pF_0603_Kemet_CBR | SMD0603_gap05 | C389 |
| 1 | 7pF_0603_CBR06C709C5GAC | SMD0603_gap05 | C400 |
| 1 | 15pF_0603_C0603C150J5GACTU | SMD0603_gap05 | C401 |
| 1 | 9.2pF_0402_GJM1555C1H9R2BB01D | SMD0402 | C403 |
| 1 | 5.7pF_0402_GRM1555C1H5R7BA01D | SMD0402 | C404 |
| 1 | 12pF_0402_GCQ1555C1H120FB01D | SMD0402 | C405 |
| 1 | 7.8pF_0402_GRM0225C1E7R8DA03L | SMD0402 | C406 |
| 1 | 15pF_0402_GCQ1555C1H150FB01D | SMD0402 | C407 |
| 1 | 9.6pF_0402_GCQ1555C1H9R6BB01D | SMD0402 | C409 |
| 1 | 68pF_0402_GCM1555C1H680FA16J | SMD0402 | C414 |
| 1 | 8.1pF_0402_GJM1555C1H8R1BB01D | SMD0402 | C415 |
| 1 | 47pF_0402_GCQ1555C1H470JB01D | SMD0402 | C416 |
| 4 | 100pF_0603_Kemet | SMD0603_gap05 | C452, C457, C474, C480 |
| 4 | 47pF_0603_Kemet | SMD0603_gap05 | C453, C459, C462, C463 |
| 1 | 1pF_0603_Kemet | SMD0603_gap05 | C460 |
| 2 | 10uF_0603_Murata_GRM | SMD0603_gap05 | C472, C478 |
| 2 | 47nF_0603_Kemet | SMD0603_gap05 | C473, C479 |
| 3 | 27pF_0603_Kemet | SMD0603_gap05 | C475, C481, C487 |
| 2 | 22pF_0603_Kemet | SMD0603_gap05 | C476, C484 |
| 1 | 12pF_0603_C0603C120J3GACTU | SMD0603 | C483 |
| 1 | 5pF_0603_Kemet | SMD0603 | C485 |
| 4 | 150pF_0805 | SMD0805 | C492, C493, C494, C495 |
| 1 | 47pF_0805_KEMET | SMD0805 | C496 |
| 1 | 470pF_0402_GRM1555C1H471JA01D | SMD0402 | C514 |
| 2 | 4.7uF_0603 | SMD0603 | C516, C523 |
| 1 | 2pF_0402_GRM1555C2A2R0CA01D | SMD0402 | C518 |
| 1 | 0.6pF_0402_GRM1555C2AR60BA01D | SMD0402 | C519 |
| 1 | 2.7pF_0402_CL05C2R7CB5NNNC | SMD0402 | C524 |
| 20 | 330R_0603_CRGCQ0603J330R | SMD0603 | R1, R102, R103, R104, R105, R106, R107, R108 +12 |
| 8 | 2k2_0402_ERJ-2RKF2201X | SMD0402 | R2, R19, R20, R21, R22, R186, R187, R188 |
| 8 | 0R_0402_RCS04020000Z0ED | SMD0402 | R3, R4, R24, R27, R136, R137, R138, R192 |
| 54 | 0R_0603_RCS06030000Z0EA | SMD0603 | R5, R6, R7, R8, R9, R10, R11, R31 +46 |
| 2 | 619K_0805_ERJ-6ENF6193V | SMD0805 | R12, R25 |
| 6 | 1K_0402_CRGP0402F1K0 | SMD0402 | R13, R14, R15, R16, R17, R38 |
| 18 | 10K_0402_Yageo | SMD0402 | R18, R95, R113, R116, R124, R140, R168, R170 +10 |
| 5 | NF_0R_0402_RCS04020000Z0ED | SMD0402 | R23, R135, R148, R149, R191 |
| 6 | 100k_0805 | SMD0805 | R26, R29, R33, R36, R133, R134 |
| 1 | 39K_0402_Yageo | SMD0402 | R28 |
| 1 | 330R_0402_RC0402JR-07330RL | SMD0402 | R30 |
| 1 | 976K_0805_ERJ-6ENF9763V | SMD0805 | R32 |
| 2 | 680R_0402_RC0402FR-07680RL | SMD0402 | R34, R35 |
| 2 | 22R_0402_RC0402JR-0722RL | SMD0402 | R39, R40 |
| 1 | 1M_0402_RC0402FR-071ML | SMD0402 | R41 |
| 9 | NF_SMD_0402 | SMD0402 | R42, R43, R44, R45, R216, R248, R249, R254 +1 |
| 4 | 47K_0603 | SMD0603 | R46, R47, R50, R51 |
| 4 | 220R_0603 | SMD0603 | R48, R49, R52, R53 |
| 4 | 10K_0603 | SMD0603 | R58, R59, R60, R61 |
| 4 | 120R_0805_Panasonic | SMD0805 | R62, R63, R64, R66 |
| 2 | 294R_0603_Yageo | SMD0603 | R65, R71 |
| 2 | 249R_0603_CRCW0603249RFKEAHP | SMD0603 | R67, R69 |
| 1 | 17R8_0603_Vishay | SMD0603 | R68 |
| 2 | 60R4_0603_Yageo | SMD0603 | R70, R72 |
| 2 | 52R3_0603_Yageo | SMD0603 | R76, R77 |
| 1 | 11k5_0603_Yageo | SMD0603 | R78 |
| 1 | 2k32_0603_Yageo | SMD0603 | R79 |
| 4 | 20K_0603_ESR03EZPJ203 | SMD0603 | R80, R83, R84, R85 |
| 2 | 10K_0603_ESR03EZPJ103 | SMD0603 | R81, R82 |
| 1 | 11K_0402_Panasonic | SMD0402 | R88 |
| 1 | 33K_0402_Yageo | SMD0402 | R89 |
| 2 | 0RNF_0402_Yageo | SMD0402 | R90, R93 |
| 9 | 0R_0402_Yageo | SMD0402 | R91, R92, R96, R97, R130, R222, R235, R255 +1 |
| 2 | 50R_0402_Yageo | SMD0402 | R94, R99 |
| 6 | 30K_0402_Yageo | SMD0402 | R98, R114, R117, R220, R291, R351 |
| 1 | 0RNF_0402_RC0402JR-070RL | SMD0402 | R100 |
| 13 | 1K_0603_ESR03EZPJ102 | SMD0603 | R101, R162, R177, R183, R227, R236, R252, R258 +5 |
| 1 | 3.3K_0402_CRCW01003K30FREL | SMD0402 | R112 |
| 6 | 100R_0402_ESR01MZPF1000 | SMD0402 | R115, R118, R215, R296, R329, R352 |
| 29 | NF_SMD_0603 | SMD0603 | R120, R122, R123, R141, R144, R145, R146, R163 +21 |
| 12 | 5K1_0402 | SMD0402 | R129, R159, R160, R164, R169, R174, R195, R196 +4 |
| 3 | 0R_0805 | SMD0805 | R131, R132, R208 |
| 1 | 27R_0402_ERJ2RKD27R0X | SMD0603 | R139 |
| 1 | 1k_0402 | SMD0603 | R143 |
| 1 | 1.2K_0402_AC0402JR-071K2L | SMD0402 | R150 |
| 6 | 10K_TRIMMER_TC33X-2-103E | SMD_TC33X | R161, R176, R218, R226, R253, R343 |
| 8 | 50R_0805_RCS080551R0FKEA | SMD0805 | R165, R232, R287, R301, R312, R335, R357, R367 |
| 4 | 200R_0603 | SMD0603 | R166, R233, R261, R368 |
| 1 | 150R_0402 | SMD0402 | R172 |
| 4 | 20K_0603_RC0603FR-0720KL | SMD0603 | R179, R237, R264, R266 |
| 1 | 390R_0402_RC0402JR-07390RL | SMD0402 | R184 |
| 1 | 33.2R_0402_RC0402FR-0733R2L | SMD0402 | R189 |
| 1 | 0RNF_0402 | SMD0402 | R190 |
| 3 | 7.5K_0603 | SMD0603 | R193, R263, R265 |
| 1 | 36R_0402_RC0402FR-0736RL | SMD0402 | R200 |
| 2 | 32.4R_0805_Vishay | SMD0805 | R204, R205 |
| 2 | NF_150R_0805_ERJ-6ENF1500V | SMD0805 | R207, R209 |
| 1 | 3R_0603_ESR03EZPJ3R0 | SMD0603 | R210 |
LimeRFE design files
The KiCad project lives in the myriadrf/LimeRFE repository on GitHub; these links point at the commit this page was built from.
LimeRFE: common questions
What microcontroller does the LimeRFE use?
The LimeRFE is built around the ATMEGA328P-AU, from the AVR/Arduino family.
How big is the LimeRFE PCB?
The LimeRFE measures 141.1 × 178.5 mm and is 1.6 mm thick.
How many components are on the LimeRFE?
1325 components, from 413 distinct parts. The full bill of materials is listed on this page.
Where can I download the LimeRFE design files?
From the myriadrf/LimeRFE repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the LimeRFE design in my own project?
The repository has no license, so all rights stay with myriadrf. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the LimeRFE without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
Similar boards
AVR/ArduinoRedox keyboard
mattdibi
162.2 × 126.5 mm77 parts2LMIT2.0k
AVR/ArduinoModuleV450
stuartpittaway
30 × 61.4 mm39 parts2LCC-BY-NC-4.01.1k
AVR/ArduinoV4
30 × 50 mm38 parts2LCC-BY-NC-4.01.1k
AVR/ArduinoDiscipline
coseyfannitutti
304.9 × 122.8 mm170 parts2LCC-BY-NC-4.01.0k
AVR/ArduinoMegadesk
gcormier
41.7 × 32.2 mm23 parts2LGPL-3.0818
AVR/ArduinoEasyduino Atmega Nano
Hanqaqa
43.4 × 18 mm30 parts4LCERN-OHL-P-2.0746
