About the RTShield PCB

RTShield is an open source RP2040/RP2350 PCB design by o7-machinehum, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 89 × 61 mm, with 87 components from 41 distinct parts.

Its main chip is the RP2350B, from the RP2040/RP2350 family. Other key parts include the W25Q32JVSSIQ, NUP2202W1T2G, LM4040C33FTA, LM66100DCKR and AOZ1280CI. By type, the board carries 30 capacitors, 22 resistors, 10 connectors, 9 ICs, 6 diodes and 3 switches.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Breakout board for a RPi.

Basically... If you make boards for yourself: great, make boards for your friends: great, but please do not sell hundreds on them on Aliexpress.

Files in docs/ 3rd party reference material are not covered by this licence.

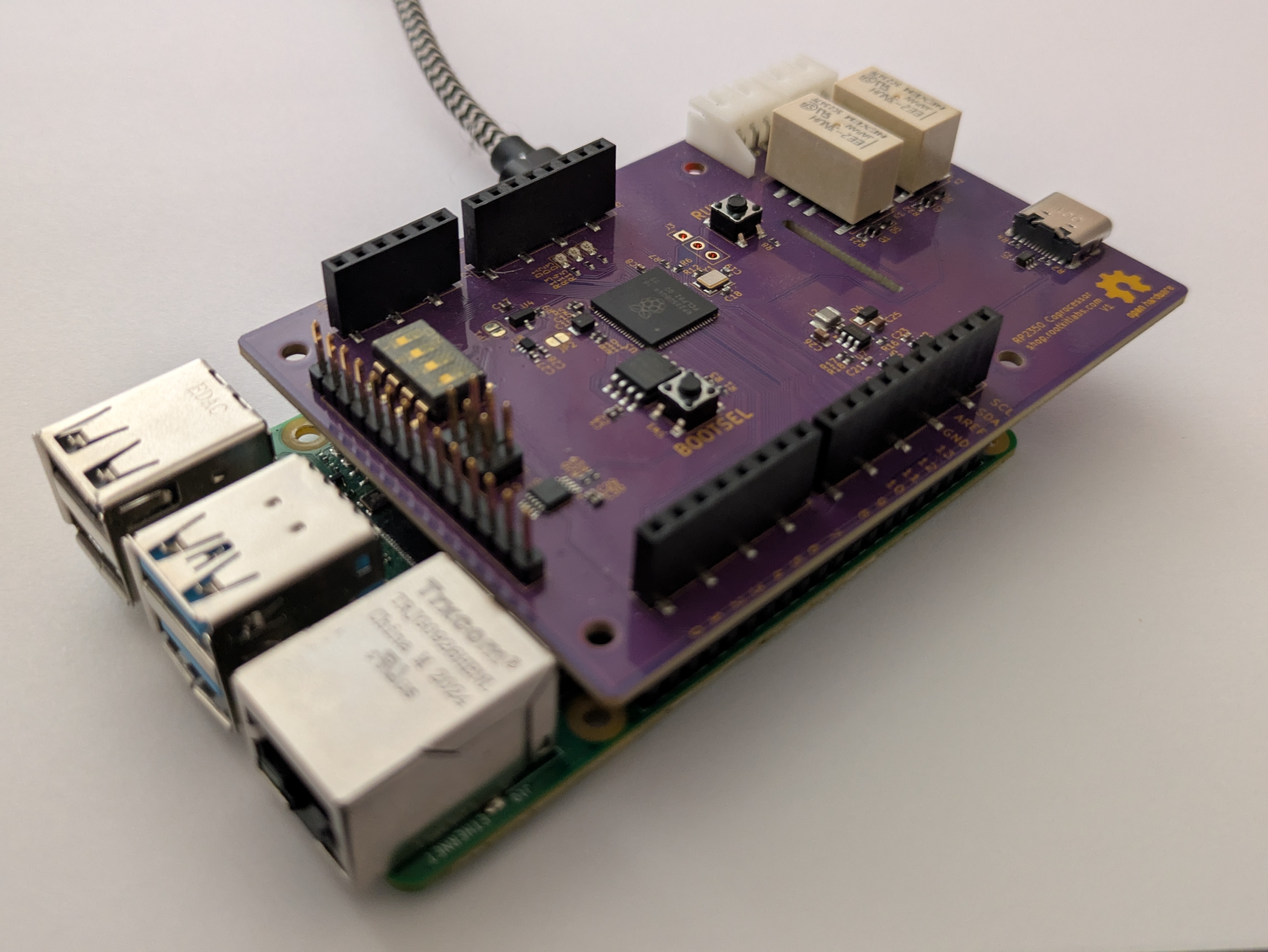

RTShield, from the project README
From the project README

Main components on the RTShield

W25Q32JVSSIQNUP2202W1T2GRP2350BLM4040C33FTALM66100DCKRAOZ1280CITCR2EE11,LM(CTMCP4728T-E/UN

RTShield bill of materials (BOM)

87 components, 41 distinct parts.

QtyPartRefs
1
W25Q32JVSSIQ
W25Q32JVSS
U1
1
NUP2202W1T2G
NUP2202
U2
1
RP2350B
RP2350
U3
1
LM4040C33FTA
U4
2
LM66100DCKR
LM66100DCK
U5, U6
1
AOZ1280CI
U7
1
TCR2EE11,LM(CT
TCR2EE11
U8
1
MCP4728T-E/UN
MCP4728
U9
2
DMG1012TQ-7
Q1, Q2
1
ABM8-272-T3
12Mhz
Y1
1
USB4105-GF-A-120
USB_C_Receptacle_USB2.0_16P
J1
1
77311-101-14LF
Conn_01x14_Pin
J2
1
NPTC202KFMS-RC
Raspberry_Pi_4
J4
2
NPTC081KFXC-RC
Conn_01x08_Pin
J5, J8
1
NPTC101KFXC-RC
Conn_01x10_Pin
J6
1
NPTC061KFXC-RC
Conn_01x06_Pin
J7
1
67997-206HLF
Conn_02x03_Odd_Even
J9
2
S3B-XH-A-1
Conn_01x03_Pin
J10, J11
2
EE2-3TNUH
K1, K2
2
PTS647SK38SMTR2 LFS
SW_Push
SW1, SW2
Show 21 more
QtyPartRefs
1
A6S-4102-PH
SW_DIP_x04
SW3
1
LTST-C190KRKT
Red
D1
1
LTST-C190GKT
Green
D2
1
LTST-C190KSKT
Yellow
D3
1
MSS2P3-M3/89A
MSS2P3
D4
2
BAT54XV2T1G
D5, D6
1
AOTA-B201610S3R3-101-T
3u3
L1
1
DFE252012P-2R2M=P2
2.2uH
L2
4
JMK105BJ105KV-F
1uF
C1, C24, C27, C28
16
CL05B104KP5NNNC
100nF
C2, C3, C4, C5, C7, C8, C9, C10 +8
6
JMK105BBJ475MV-F
4.7uF
C6, C14, C15, C16, C17, C30
2
GJM1555C1H150GB01D
15pF
C18, C19
2
GRM188R61E106KA73J
10uF
C25, C26
1
RC0402FR-1310KL
10k
R1
2
RC0402FR-135K6L
5.6k
R2, R4
12
RC0402FR-131KL
1k
R3, R6, R8, R9, R12, R13, R14, R15 +4
3
RC0402FR-1327RL
27R
R5, R10, R11
1
RC0402FR-070RL
0R
R7
1
RC0402FR-13100KL
100k
R16
1
RC0402FR-1349K9L
49.9k
R17
1
RC0402FR-1315K8L
15.8k
R18

RTShield design files

The KiCad project lives in the o7-machinehum/RTShield repository on GitHub; these links point at the commit this page was built from.

RTShield: common questions

What microcontroller does the RTShield use?

The RTShield is built around the RP2350B, from the RP2040/RP2350 family.

How big is the RTShield PCB?

The RTShield measures 89 × 61 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the RTShield?

87 components, from 41 distinct parts. The full bill of materials is listed on this page.

Where can I download the RTShield design files?

From the o7-machinehum/RTShield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RTShield design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the RTShield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
