Readout 30pin bottom

opentac·opentac.github.io·hardware/readout_30pin/bottom/readout_30pin_bottom.kicad_pcb

Readout 30pin bottom PCB layout, top view — open source board by opentac

About the Readout 30pin bottom PCB

Readout 30pin bottom is an open source PCB design by opentac, published on GitHub under the MIT license. It is a 2-layer board measuring 16 × 22.7 mm, with 19 components from 10 distinct parts.

Other key parts include the TLV9362IDDFR, ADG706BRUZ, 74HC595BQ and LM2776DBVR. By type, the board carries 8 capacitors, 5 ICs, 3 connectors and 3 resistors.

It belongs with the sensors and robotics & motion designs in this gallery.

From the project

OpenTac: open tools to design, fabricate, read and simulate flex-PCB tactile skins that sense normal and shear force, for any robot surface.

Reads one OpenTac sensor of up to 15 rows x 15 columns. It is two small boards stacked on 1.27 mm 7-pin header/socket pairs: the top board has the microcontroller, the bottom board has the analog front end and the sensor connector.

- the KiCad 10 project (readout30pintop. or readout30pinbottom.). Footprints, symbols and 3D models it uses are in hardware/libs. - production/: the JLCPCB fabrication files exported from this design on 2026-10-15: Gerber zip, JLCPCB BOM (bom.csv), pick-and-place positions (positions.csv), and the optional designator list and netlist.ipc. - bom.csv: the same BOM…

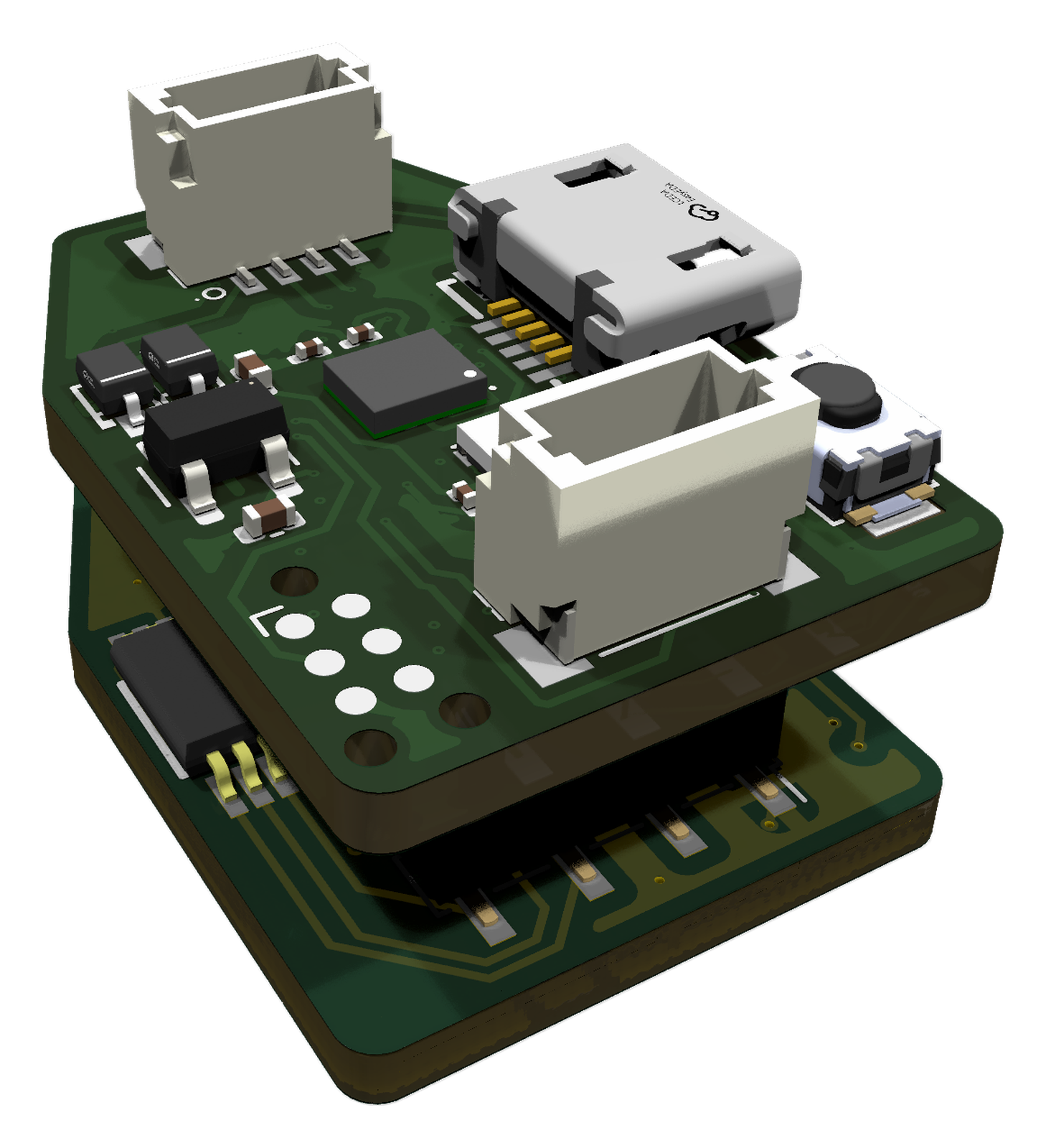

Readout 30pin bottom, from the project README — From the project README

Main components on the Readout 30pin bottom

TLV9362IDDFRADG706BRUZ74HC595BQ LM2776DBVR

Readout 30pin bottom bill of materials (BOM)

19 components, 10 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	TLV9362IDDFR	SOT65P280X110-8N	IC1
1	ADG706BRUZ	SOP65P638X110-28N	IC2
2	74HC595BQ	NVT2006BQ115	IC8, IC9
1	LM2776DBVR LM2776	SOT-23-6	U7
2	PM1.27-1X7PLT-H4.3-R Conn_01x07_Pin	PinSocket_1x07_P1.27mm_Vertical_SMD_Pin1Right	J2, J3
1	5051103091 Conn_01x30_Pin	CON_5051103091_MOL	J4
5	CL05B104KO5NNNC 0.1u	C_0402_1005Metric	C9, C10, C12, C14, C15
2	CL05A105KA5NQNC 1u	C_0402_1005Metric	C34, C35
1	CL05A106MQ5NUNC 10u	C_0402_1005Metric	C36
3	0402WGF1001TCE 1k	R_0402_1005Metric	R5, R6, R7

Readout 30pin bottom design files

The KiCad project lives in the opentac/opentac.github.io repository on GitHub; these links point at the commit this page was built from.

Readout 30pin bottom: common questions

How big is the Readout 30pin bottom PCB?

The Readout 30pin bottom measures 16 × 22.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Readout 30pin bottom?

19 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Readout 30pin bottom design files?

From the opentac/opentac.github.io repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Readout 30pin bottom design in my own project?

Yes, under the terms of its MIT license, which opentac chose for the repository.
