Msxnano dock

Papipapito·MSXnano-Boards·dock20k/msxnano_dock.kicad_pcb

Msxnano dock PCB layout, top view — open source ESP32 board by Papipapito
Simulate this board

About the Msxnano dock PCB

Msxnano dock is an open source ESP32 PCB design by Papipapito, published on GitHub. It is a 2-layer board measuring 120 × 70 mm, with 85 components from 47 distinct parts.

Its main chip is the ESP32-C6-WROOM-1-N8, from the ESP32 family. Other key parts include the AMS1117-3.3, Sipeed_M0S_BL616, FE1.1s and USBLC6-2SC6. By type, the board carries 24 capacitors, 21 resistors, 12 connectors, 9 ICs, 9 diodes and 5 fuses.

It belongs with the iot & wireless, keyboards and dev boards & breakouts designs in this gallery.

From the project

Proof-of-concept M0S (BL616) carrier boards for the Tang Nano 20K / MSXnano — integrated USB companion + hub + WiFi so the USB keyboard works on locked '3921' boards, no external dock. Placas de prueba de concepto con M0S.

Carrier / dock board for the Tang Nano 20K running the MSXnano core. Placa portadora ("dock") para el Tang Nano 20K con el core MSXnano.

📖 See CONNECTORS.md for the full connector/jumper reference · ../README.html for the illustrated bilingual overview.

Full-res: rendertop.png · renderisoports.png · renderdock.png · layouttop.png · layoutbottom.png · PDFs: schematic · PCB top / bottom

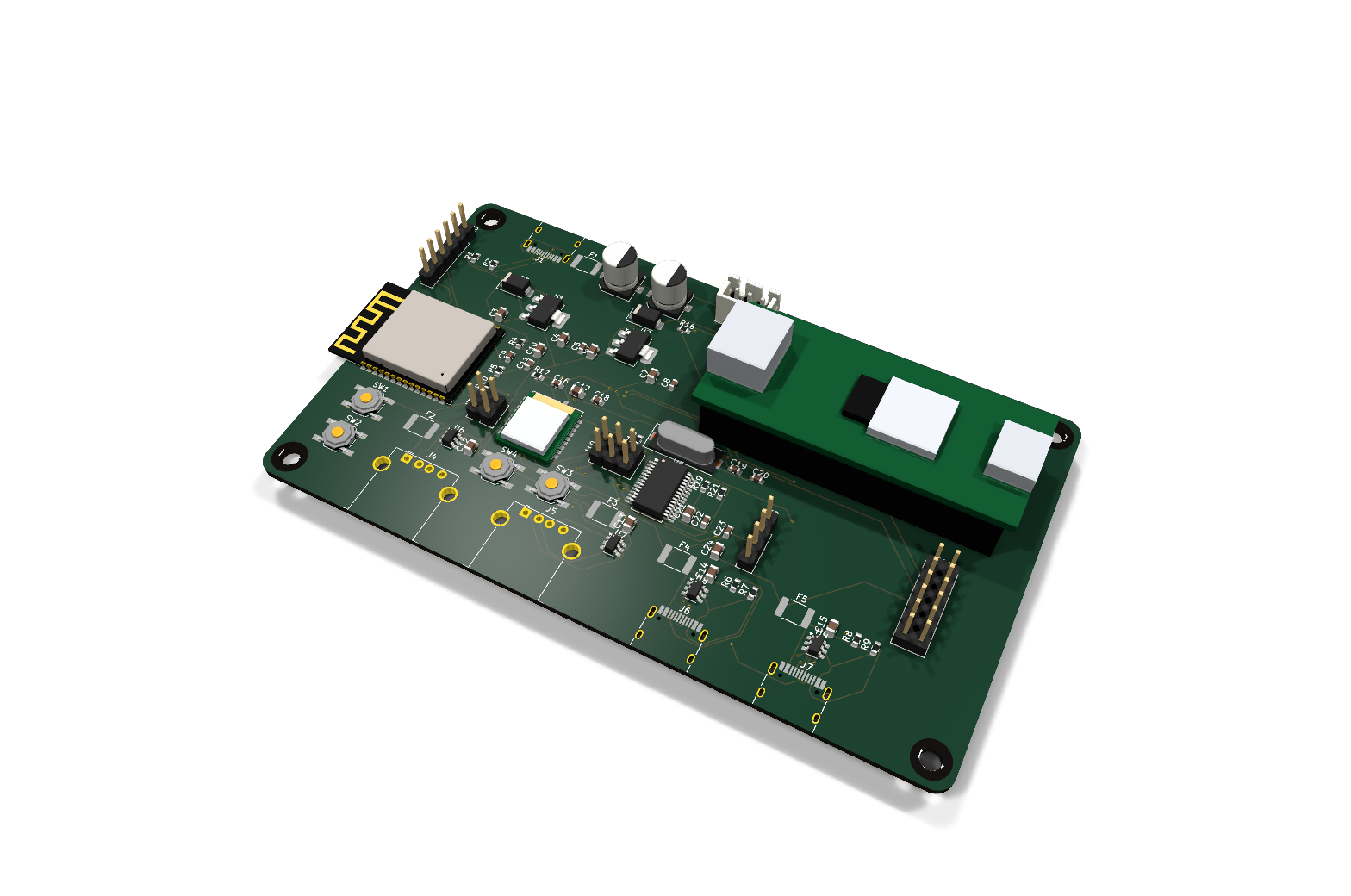

Msxnano dock, from the project README
From the project README

Main components on the Msxnano dock

AMS1117-3.3ESP32-C6-WROOM-1-N8Sipeed_M0S_BL616FE1.1sUSBLC6-2SC6

Msxnano dock bill of materials (BOM)

85 components, 47 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
AMS1117-3.3
U1, U2
1
ESP32-C6-WROOM-1-N8
U3
1
Sipeed_M0S_BL616
U4
1
FE1.1s
U5
4
USBLC6-2SC6
U6, U7, U8, U9
1
12MHz
Y1
1
USB-C_POWER
J1
1
ESP_FLASH
J2
1
ESP_UART_LINK
J3
1
USB-A_1
J4
1
USB-A_2
J5
1
USB-C_1
J6
1
USB-C_2
J7
1
WS2812_STRIP
J8
1
BL616_FLASH
J9
1
BL_USB_SEL
J10
1
EXPANSION
J11
1
TangNano20K
J12
1
2A
F1
4
500mA
F2, F3, F4, F5
Show 27 more
QtyPartRefs
1
ESP_RST
SW1
1
ESP_BOOT
SW2
1
BL_BOOT
SW3
1
BL_RST
SW4
1
SS34
D1
1
SMAJ5.0A
D2
1
PWR
D3
1
LED0
D4
1
LED1
D5
1
LED2
D6
1
LED3
D7
1
LED4
D8
1
LED5
D9
2
220uF/10V
C1, C2
9
10uF
C3, C6, C12, C13, C14, C15, C17, C21 +1
3
22uF
C4, C7, C10
7
100nF
C5, C8, C11, C16, C18, C22, C23
1
1uF
C9
2
18pF (DNP)
C19, C20
2
5k1
R1, R2
1
2k2
R3
4
10k
R4, R5, R19, R21
4
56k
R6, R7, R8, R9
7
1k
R10, R11, R12, R13, R14, R15, R17
1
330R
R16
1
2k7 1%
R18
1
0R
R20

Msxnano dock design files

The KiCad project lives in the Papipapito/MSXnano-Boards repository on GitHub; these links point at the commit this page was built from.

Msxnano dock: common questions

What microcontroller does the Msxnano dock use?

The Msxnano dock is built around the ESP32-C6-WROOM-1-N8, from the ESP32 family.

How big is the Msxnano dock PCB?

The Msxnano dock measures 120 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Msxnano dock?

85 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Msxnano dock design files?

From the Papipapito/MSXnano-Boards repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Msxnano dock design in my own project?

The repository has no license, so all rights stay with Papipapito. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Msxnano dock without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
