Ad low noise float 2023 git PCB layout, top view — open source RP2040/RP2350 board by petermaerki

About the Ad low noise float 2023 git PCB

Ad low noise float 2023 git is an open source RP2040/RP2350 PCB design by petermaerki, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 237 components from 71 distinct parts.

Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the REF7050, ADA4523-1, OPA4990, ADUM3160 and LM393. By type, the board carries 83 capacitors, 67 resistors, 19 ICs, 18 connectors, 16 diodes and 4 test points.

From the project

Ad converter hardware connecting to USB. Used to measure low frequency noise.

Ad converter hardware connecting to USB. Used to measure low frequency noise.

Instructions (PDF) Labber Driver (git repo)

PCB: The hardware (PCB) https://github.com/petermaerki/adlownoisefloat2023git Directory hardware KiCad Directory software/pico` C++

Decoder: python package: The protocol decoder written in C++/pybind11 https://github.com/petermaerki/adlownoisefloat2023git Directory software/decoder

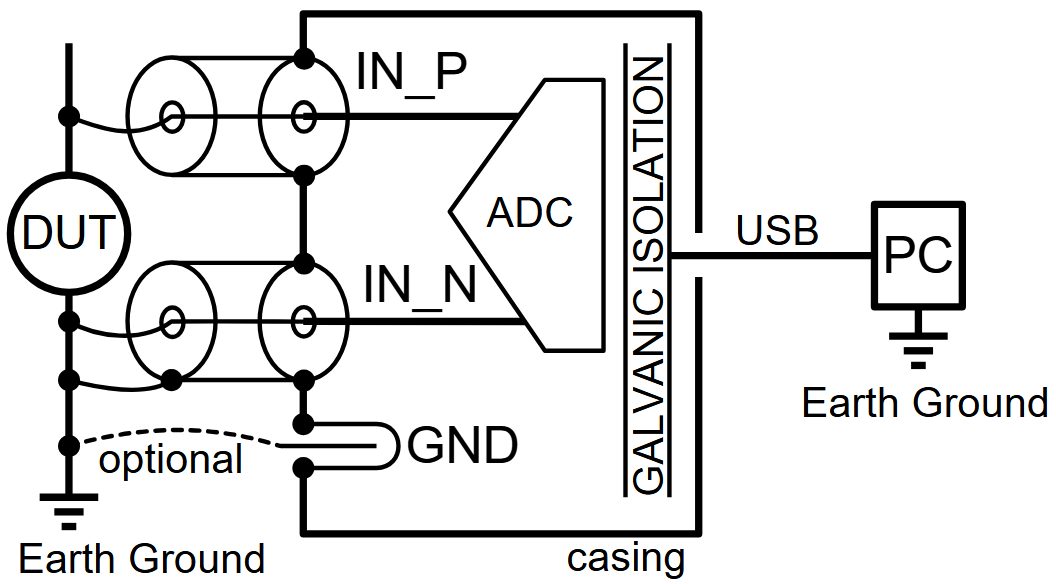

Ad low noise float 2023 git, from the project README
From the project README

Main components on the Ad low noise float 2023 git

REF7050RP2350_60QFNADA4523-1OPA4990ADUM3160LM393ADS127L21IRUKRAMS1117SN74AVC4T245PWRW25Q32JVSSN74LVC1G79TLP2361

Ad low noise float 2023 git bill of materials (BOM)

237 components, 71 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
REF7050
U1
1
RP2350_60QFN
U4
3
ADA4523-1
U201, U202, U208
1
OPA4990
U203
1
ADUM3160
U205
3
LM393
onsemi
U206, U209, U210
1
ADS127L21IRUKR
U207
2
AMS1117
U211, U215
2
SN74AVC4T245PWR
U212, U214
1
W25Q32JVS
U213
1
SN74LVC1G79
U216
2
TLP2361
U217, U218
2
CPH3910
Q201, Q202
1
ABM8-272-T3
Y1
14
CONN_01X02_SOCKET
Conn_01x02_Socket
J2, J5, J10, J11, J20, J21, J31, J42 +6
1
SM03B-SRSS-TB
J4
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J301
1
IN_t
J401
1
IN_disable
J402
1
1210L110/16WR
F201
Show 51 more
QtyPartRefs
2
IN_N
IN_N201, IN_N202
1
IN_2_5
IN_N203
1
IN_5
IN_N204
1
IN_7_5
IN_N205
1
IN_10
IN_N206
2
IN_P
IN_P201, IN_P213
2
5V
IN_P202, IN_P214
2
7V
IN_P203, IN_P215
1
9V
IN_P204
1
3V3
IN_P205
1
~{OVLD}
IN_P206
1
5V_USB
IN_P207
2
5VREF
IN_P208, IN_P212
2
REFP
IN_P209, IN_P216
1
GND_USB
IN_P210
1
1V8
IN_P211
1
IM41
K201
2
SW_MEC_5E
SW1, SW2
1
BOLZEN1
Bolzen1
TP201
1
BOLZEN2
Bolzen2
TP202
1
BOLZEN3
Bolzen3
TP203
1
BOLZEN4
Bolzen4
TP204
8
BAS70-06
D201, D202, D210, D211, D212, D213, D214, D215
6
MMBD1503A
D203, D204, D205, D206, D208, D209
1
SMBJ5.0CA
hongjiacheng
D207
1
PRTR5V0U2X
D302
1
3.3U
3.3u
L1
17
100NF
100nF
Samsung Electro-Mechanics
C2, C8, C44, C45, C46, C47, C48, C49 +9
5
15P
15p
C3, C4, C234, C235, C236
7
10UF
10uF
Samsung Electro-Mechanics
C6, C7, C9, C13, C216, C221, C223
12
22N
22n
C10, C11, C12, C15, C23, C24, C27, C30 +4
13
10UF
10uF
Murata Electronics
C14, C17, C22, C25, C26, C29, C31, C32 +5
5
10U
10u
C16, C18, C20, C21, C28
1
22NF
22nF
C53
1
22nF
C54
8
1UF
1uF
Samsung Electro-Mechanics
C202, C203, C204, C205, C206, C209, C210, C211
2
12PF
12pF
FH(Guangdong Fenghua Advanced Tech)
C207, C208
4
22UF
22uF
C212, C213, C214, C215
4
68P
68p
C217, C218, C219, C220
4
1n
C228, C230, C231, C232
19
1kΩ
R1, R7, R8, R16, R33, R201, R211, R212 +11
5
200
R2, R3, R41, R42, R43
7
10kΩ
UNI-ROYAL(Uniroyal Elec)
R4, R6, R9, R228, R235, R236, R239
1
4k
R5
4
27
R11, R12, R203, R205
5
1k
R13, R202, R206, R207, R209
4
27Ω
UNI-ROYAL(Uniroyal Elec)
R14, R204, R208, R210
15
22Ω
UNI-ROYAL(Uniroyal Elec)
R15, R217, R218, R219, R220, R221, R222, R223 +7
1
200
R34
4
47kΩ
UNI-ROYAL(Uniroyal Elec)
R214, R216, R230, R231
2
5.1K
R302, R303

Ad low noise float 2023 git design files

The KiCad project lives in the petermaerki/ad_low_noise_float_2023_git repository on GitHub; these links point at the commit this page was built from.

Ad low noise float 2023 git: common questions

What microcontroller does the Ad low noise float 2023 git use?

The Ad low noise float 2023 git is built around the RP2350_60QFN, from the RP2040/RP2350 family.

How big is the Ad low noise float 2023 git PCB?

The Ad low noise float 2023 git measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ad low noise float 2023 git?

237 components, from 71 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ad low noise float 2023 git design files?

From the petermaerki/ad_low_noise_float_2023_git repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ad low noise float 2023 git design in my own project?

The repository has no license, so all rights stay with petermaerki. Use it as a reference, and ask the author before reusing the design.
