Esp32c3-smart board

petrovgp·esp32c3-smart-board·kicad/esp32c3-smart-board.kicad_pcb

Esp32c3-smart board layout, top view — open source ESP32 board by petrovgp

About the Esp32c3-smart board

Esp32c3-smart board is an open source ESP32 PCB design by petrovgp, published on GitHub. It is a 4-layer board measuring 42.6 × 45.7 mm, with 64 components from 32 distinct parts.

Its main chip is the ESP32-C3, from the ESP32 family. Other key parts include the ME6211C33M5G, TP4056, MPU-6050 and DW01A. By type, the board carries 24 capacitors, 21 resistors, 5 ICs, 3 transistors, 3 diodes and 2 connectors.

It belongs with the sensors, iot & wireless and power & battery designs in this gallery.

From the project

ESP32-C3 smart board with Li-Ion/LiPo support, MPU6050 accelerometer, GC9A01 round display and USB Type C designed in KiCad 9

A compact, battery-powered ESP32-C3 development board designed in KiCad 9, integrating power management, motion sensing, and display support in a small form factor. Ideal for low-power IoT or wearable applications.

A huge thank you to PCBWay for sponsoring this project!

PCBWay provided high-quality PCB fabrication and assembly support, helping bring the hardware from prototype to reality. Their fast turnaround times, excellent communication, and reliable manufacturing made a big difference in the development process.

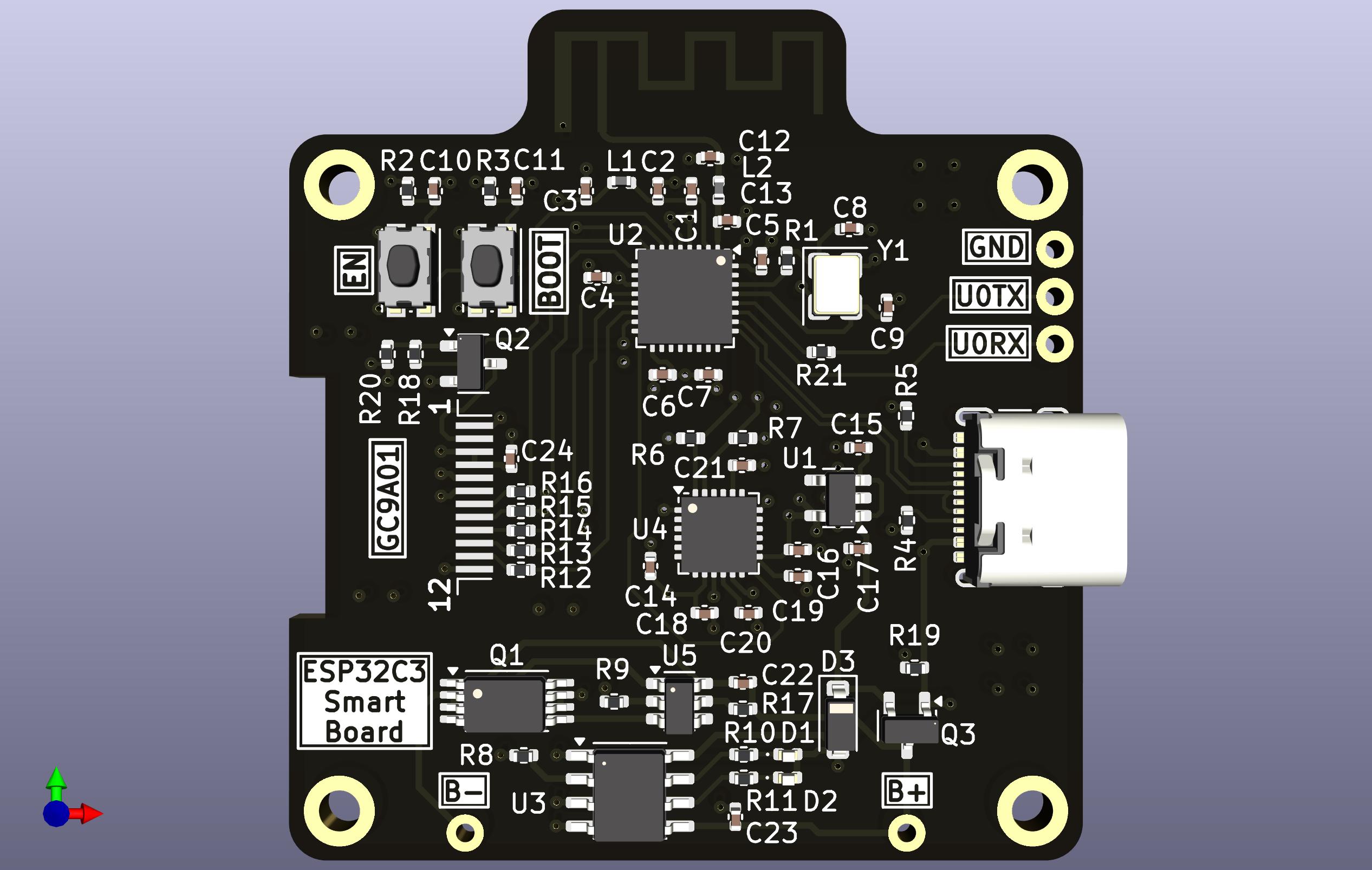

Esp32c3-smart board, from the project README
From the project README

Main components on the Esp32c3-smart board

ME6211C33M5GESP32-C3TP4056MPU-6050DW01A

Esp32c3-smart board bill of materials (BOM)

64 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ME6211C33M5G
U1
1
ESP32-C3
U2
1
TP4056
U3
1
MPU-6050
U4
1
DW01A
U5
1
FS8205A
Q1
1
BSS138
Q2
1
IRLML6401
Q3
1
SJK-7U-40.000
Y1
1
USB_C_Receptacle_USB2.0_16P
J1
1
Conn_01x12_Pin
J3
1
Antenna_Shield
AE1
2
SW_Push
SW1, SW2
1
RED
D1
1
GREEN
D2
1
STPS0560Z
D3
1
2n
L1
1
2.2n
L2
7
10u
C1, C7, C14, C16, C17, C23, C24
11
100n
C2, C3, C4, C5, C6, C10, C11, C15 +3
Show 12 more
QtyPartRefs
2
14p
C8, C9
2
3.3p
C12, C13
1
10n
C19
1
2.2n
C21
1
22R
R1
4
10k
R2, R3, R19, R20
2
5.1k
R4, R5
2
4.7k
R6, R7
1
5k
R8
8
1k
R9, R10, R11, R12, R13, R14, R15, R16
2
100R
R17, R21
1
10R
R18

Esp32c3-smart board design files

The KiCad project lives in the petrovgp/esp32c3-smart-board repository on GitHub; these links point at the commit this page was built from.

Esp32c3-smart board: common questions

What microcontroller does the Esp32c3-smart board use?

The Esp32c3-smart board is built around the ESP32-C3, from the ESP32 family.

How big is the Esp32c3-smart board?

The Esp32c3-smart board measures 42.6 × 45.7 mm, has 4 copper layers and is 1.547 mm thick.

How many components are on the Esp32c3-smart board?

64 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32c3-smart board design files?

From the petrovgp/esp32c3-smart-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32c3-smart board design in my own project?

The repository has no license, so all rights stay with petrovgp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32c3-smart board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
