RadioThermal Soldering OSHW
About the RadioThermal Soldering OSHW PCB
RadioThermal Soldering OSHW is an open source PCB design by RadioThermal, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 100 × 75 mm, with 54 components from 40 distinct parts.
Other key parts include the L7812, L7805, 74LVC1GU04, 74LVC1G14 and 74HC161. By type, the board carries 23 capacitors, 7 test points, 6 ICs, 5 connectors, 5 inductors and 5 resistors.
It belongs with the power & battery designs in this gallery.
From the project

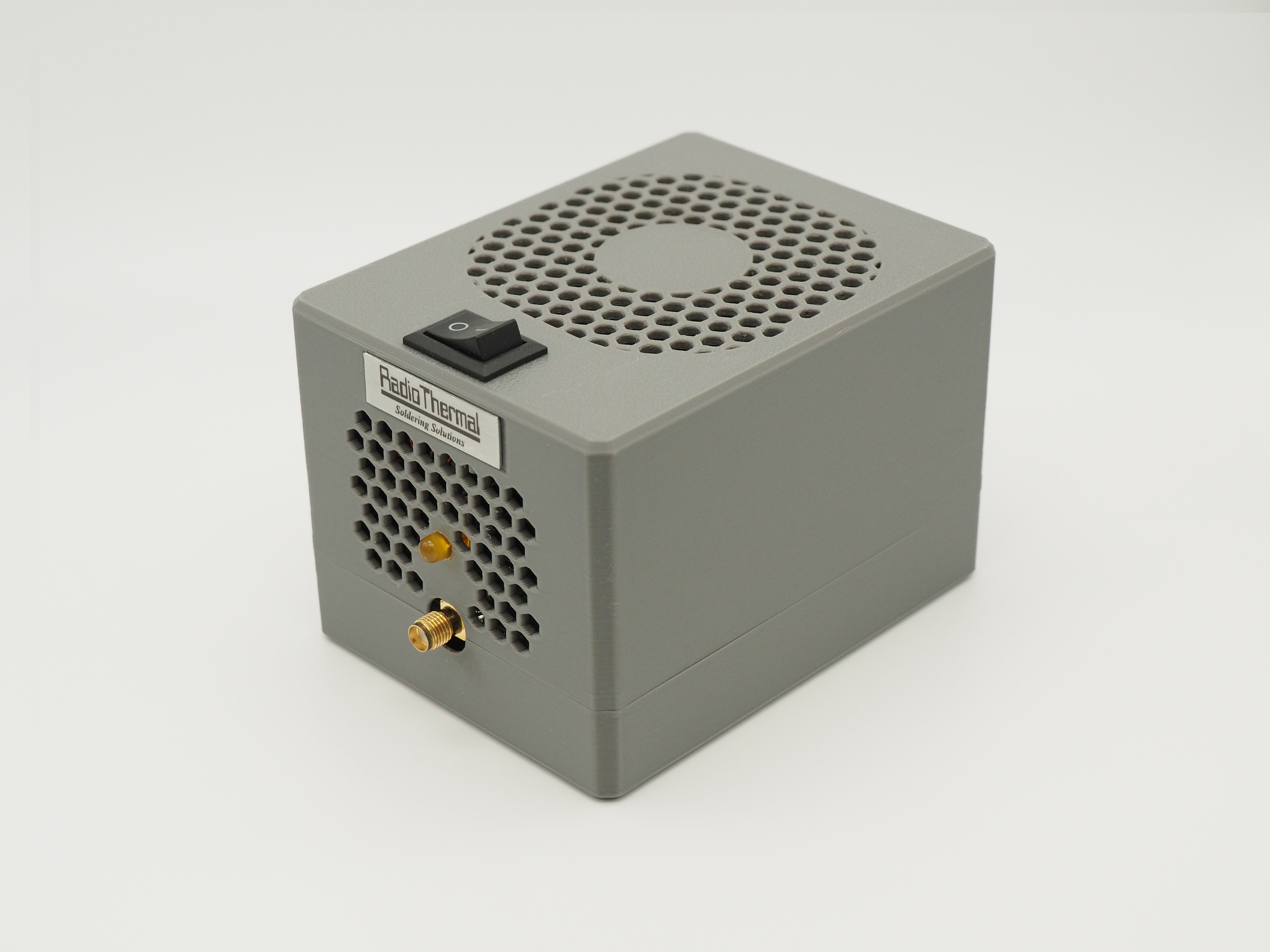

Open Source Hardware 470KHz Induction Soldering Iron
The power supply is the core of the 470KHz system. It is based upon a class-E amplifier and contains impedance matching circuitry to properly provide power to the soldering iron tip.
The provided PCB design includes all basic functionality needed to operate a 470KHz soldering iron tip.
The design includes provisions for inrush current limiting, reverse polarity protection, a cooling fan, and two different types of oscillators. The inductors, apart from the fixed 33uH inductor, are all based around the Kool Mu 0077932A7 core, which is currently only available from Digikey, though we are…
Main components on the RadioThermal Soldering OSHW
RadioThermal Soldering OSHW bill of materials (BOM)
54 components, 40 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L7812 | TO-252-3_TabPin2 | U1 |
| 1 | L7805 | TO-252-3_TabPin2 | U2 |
| 1 | 74LVC1GU04 | SOT-553 | U3 |
| 1 | 74LVC1G14 | SOT-553 | U4 |
| 1 | 74HC161 | SOP-16_4.4x10.4mm_P1.27mm | U5 |
| 1 | 1EDN8511B | SOT-23-6_Handsoldering | U6 |
| 1 | IRF640N | 3D_TO-220-3_Vertical | Q1 |
| 1 | 7.6MHZ 7.6MHz | Crystal_SMD_HC49-SD | Y1 |
| 1 | Barrel_Jack | 3D-JWT_A3963_1x02_P3.96mm_Vertical | J1 |
| 1 | Ext LED | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | SMA_connector | SMA_EdgeMount_Horizontal | J5 |
| 1 | 5V fan | FanPinHeader_1x03_P2.54mm_Vertical | J6 |
| 1 | 12V fan | FanPinHeader_1x03_P2.54mm_Vertical | J7 |
| 1 | SW_SPST | 3D-JWT_A3963_1x02_P3.96mm_Vertical | SW1 |
| 1 | 24V | TestPoint_Plated_Hole_D2.0mm | TP1 |
| 2 | GND | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP5, TP9 |
| 1 | Gate | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP6 |
| 1 | Drain | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP7 |
| 1 | Vout | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP8 |
| 1 | Iout | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP10 |
Show 20 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 33UH 33uH | L_Pulse_PA4343 | L1 |
| 1 | 6.2UH 6.2uH | L_Koolmu_1x_small_THTonly_0077932A7 | L2 |
| 2 | 16.9UH 16.9uH | L_Koolmu_1x_small_THTonly_0077932A7 | L3, L4 |
| 1 | 11.5UH 11.5uH | L_Koolmu_1x_small_THTonly_0077932A7 | L5 |
| 5 | 10U 10u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C3, C4, C6, C7 |
| 1 | 470U 470u | CP_Radial_D10.0mm_P5.00mm_P7.50mm | C2 |
| 1 | 220U 220u | CP_Radial_D6.3mm_P2.50mm | C5 |
| 2 | 33P 33p | C_0603_1608Metric | C8, C9 |
| 1 | 10µ | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C10 |
| 2 | 15N 15n | C_1210_3225Metric_Pad1.33x2.70mm_HandSolder | C11, C15 |
| 3 | 22N 22n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C12, C13, C14 |
| 3 | 10N 10n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C16, C17, C18 |
| 2 | 6.8N 6.8n | C_1210_3225Metric_Pad1.33x2.70mm_HandSolder | C19, C21 |
| 1 | 1n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C20 |
| 2 | 100N 100n | C_0603_1608Metric | C22, C24 |
| 1 | 220 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | R1 |
| 1 | 100 | R_0805_2012Metric | R2 |
| 1 | 5 | Bridge_R_0805_2012Metric | R3 |
| 1 | 330 | R_0805_2012Metric | R8 |
| 1 | 2M | R_0805_2012Metric | R9 |
RadioThermal Soldering OSHW design files
The KiCad project lives in the RadioThermal/RadioThermal_Soldering_OSHW repository on GitHub; these links point at the commit this page was built from.
RadioThermal Soldering OSHW: common questions
How big is the RadioThermal Soldering OSHW PCB?
The RadioThermal Soldering OSHW measures 100 × 75 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RadioThermal Soldering OSHW?
54 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RadioThermal Soldering OSHW design files?
From the RadioThermal/RadioThermal_Soldering_OSHW repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RadioThermal Soldering OSHW design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which RadioThermal chose for the repository.
