DonCon2040 PCB layout, top view — open source board by ravinrabbid

About the DonCon2040 PCB

DonCon2040 is an open source PCB design by ravinrabbid, published on GitHub under the MIT license. It is a 2-layer board measuring 130.8 × 58.4 mm, with 99 components from 34 distinct parts.

Other key parts include the TL072, MCP3204, MCP1541-TT and TXB0104D. By type, the board carries 33 resistors, 26 capacitors, 24 diodes, 8 connectors and 7 ICs.

It belongs with the audio designs in this gallery.

From the project

RP2040 based firmware and hardware for DIY Taiko no Tatsujin Drum Controllers

While this board will still work fine, I recommend using the DonConIOmini. It hosts the same circuit using mainly SMD parts, resulting in a smaller footprint and better noise characteristics.

This board hosts a Seeed Studio XIAO RP2040 microcontroller unit and provides signal conditioning for the piezo drum triggers. The conditioning circuit is reverse engineered from the V260 SIF PCB found in the original arcades. This is also the main reason why this board uses mainly through hole parts ... for authenticity.

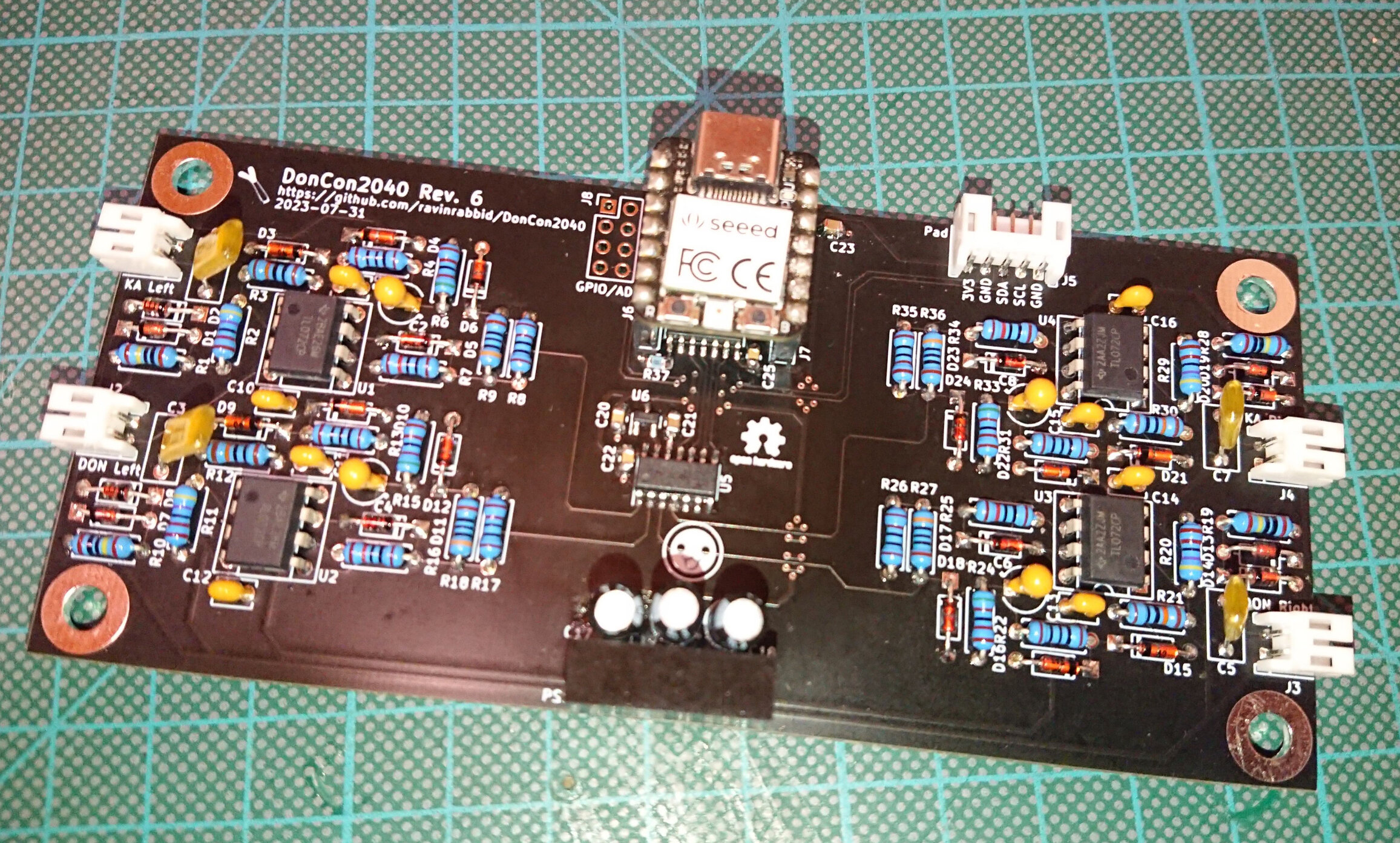

DonCon2040, from the project README
From the project README

Main components on the DonCon2040

TL072MCP3204MCP1541-TTTXB0104D

DonCon2040 bill of materials (BOM)

99 components, 34 distinct parts.

QtyPartRefs
4
TL072
U1, U2, U3, U4
1
MCP3204
U5
1
MCP1541-TT
U6
1
TXB0104D
U7
1
Ka Left
J1
1
Don Left
J2
1
Don Right
J3
1
Ka Right
J4
1
Pad
J5
1
MCU1
J6
1
MCU2
J7
1
GPIO/ADC
J8
1
A0512S-1WR3
PS1
8
1SS133
D1, D2, D7, D8, D13, D14, D19, D20
8
BAT43
D3, D4, D9, D10, D15, D16, D21, D22
4
1N4148
D5, D11, D17, D23
1
4.1V
D6
3
4.3V
D12, D18, D24
4
1nF
C1, C3, C5, C7
4
0.47uF
C2, C4, C6, C8
Show 14 more
QtyPartRefs
8
100nF
C9, C10, C11, C12, C13, C14, C15, C16
1
4.7uF
C17
2
1uF
C18, C19
4
0.1uF
C20, C22, C24, C25
3
10uF
C21, C23, C26
4
1M
R1, R10, R19, R28
4
4.7k
R2, R11, R20, R29
4
100k
R3, R12, R21, R30
4
100
R4, R13, R22, R31
4
5.1k
R6, R15, R24, R33
4
10k
R7, R16, R25, R34
4
1k
R8, R17, R26, R35
4
300
R9, R18, R27, R36
1
10k
R37

DonCon2040 design files

The KiCad project lives in the ravinrabbid/DonCon2040 repository on GitHub; these links point at the commit this page was built from.

DonCon2040: common questions

How big is the DonCon2040 PCB?

The DonCon2040 measures 130.8 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DonCon2040?

99 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the DonCon2040 design files?

From the ravinrabbid/DonCon2040 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DonCon2040 design in my own project?

Yes, under the terms of its MIT license, which ravinrabbid chose for the repository.
