Base
About the Base PCB
Base is an open source ESP32 PCB design by rmingon, published on GitHub. It is a 2-layer board measuring 84.3 × 50.8 mm, with 32 components from 17 distinct parts.
Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the MCP73831-3-OT, BMP280 and TPS63001. By type, the board carries 9 resistors, 7 capacitors, 5 diodes, 4 ICs, 2 connectors and 2 switches.
It belongs with the robotics & motion designs in this gallery.

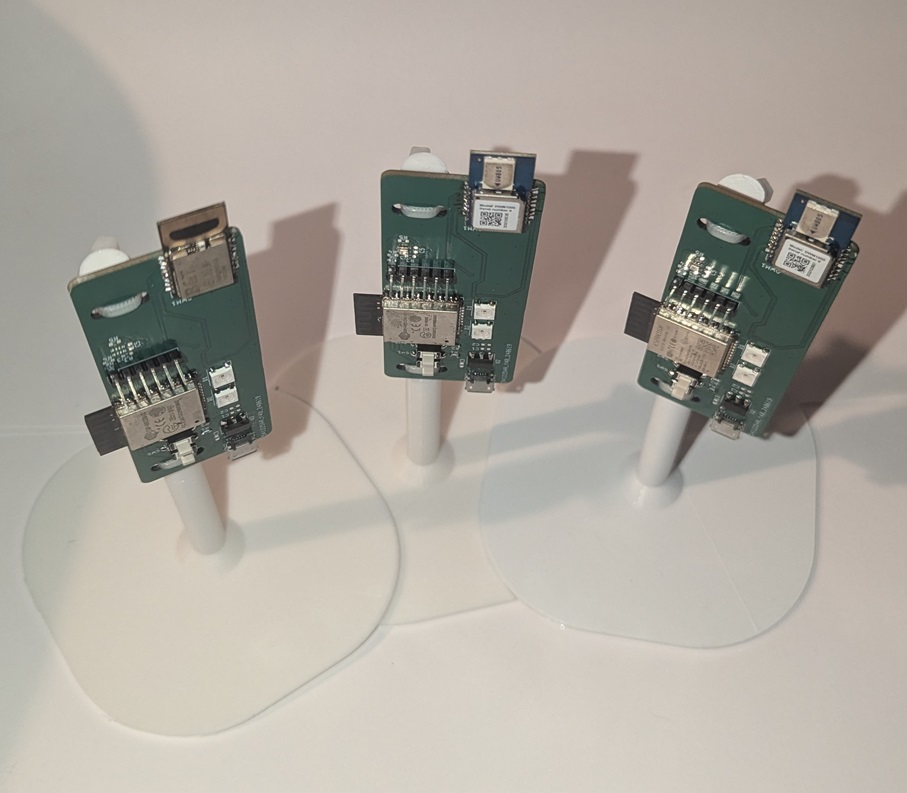

From the project
Drone design for automatic position in space with UWB
Main components on the Base
Base bill of materials (BOM)
32 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-WROOM-32 | ESP32-WROOM-32 | U1 |
| 1 | MCP73831-3-OT | SOT-23-5 | U2 |
| 1 | BMP280 | Bosch_LGA-8_2x2.5mm_P0.65mm_ClockwisePinNumbering | U3 |
| 1 | TPS63001 | Texas_DRC0010J_ThermalVias | U4 |
| 1 | USB_B_Micro | USB_Micro-B_Molex-105017-0001 | J1 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | 1043 | BAT_1043 | BT1 |
| 1 | DWM1000 | DWM1000 | DWM1 |
| 2 | SW_Push_Open | SW_SPST_CK_RS282G05A3 | SW1, SW2 |
| 2 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | D1, D2 |
| 1 | LED | LED_0603_1608Metric | D3 |
| 2 | 1N4007 | Nexperia_CFP3_SOD-123W | D4, D5 |
| 1 | LPS4012-103MRB | IND_LPS4012-103MRB | L1 |
| 5 | 0.1uF | C_0603_1608Metric | C1, C2, C6, C7, C8 |
| 2 | C | C_0603_1608Metric | C4, C5 |
| 6 | 10K | R_0603_1608Metric | R1, R2, R3, R4, R5, R6 |
| 3 | 100 | R_0603_1608Metric | R7, R8, R9 |
Base design files
The KiCad project lives in the rmingon/drone-uwb repository on GitHub; these links point at the commit this page was built from.
Base: common questions
What microcontroller does the Base use?
The Base is built around the ESP32-WROOM-32, from the ESP32 family.
How big is the Base PCB?
The Base measures 84.3 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Base?
32 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the Base design files?
From the rmingon/drone-uwb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Base design in my own project?
The repository has no license, so all rights stay with rmingon. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Base without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
