Drone PCB layout, top view — open source ESP32 board by rmingon
Simulate this board

About the Drone PCB

Drone is an open source ESP32 PCB design by rmingon, published on GitHub. It is a 2-layer board measuring 117.4 × 117.4 mm, with 49 components from 18 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the MPU-6050, DWM1000, BMP280, LM1117MP-3.3 and CH340C. By type, the board carries 16 resistors, 9 capacitors, 6 ICs, 6 transistors, 6 connectors and 6 diodes.

It belongs with the robotics & motion designs in this gallery.

From the project

Drone design for automatic position in space with UWB

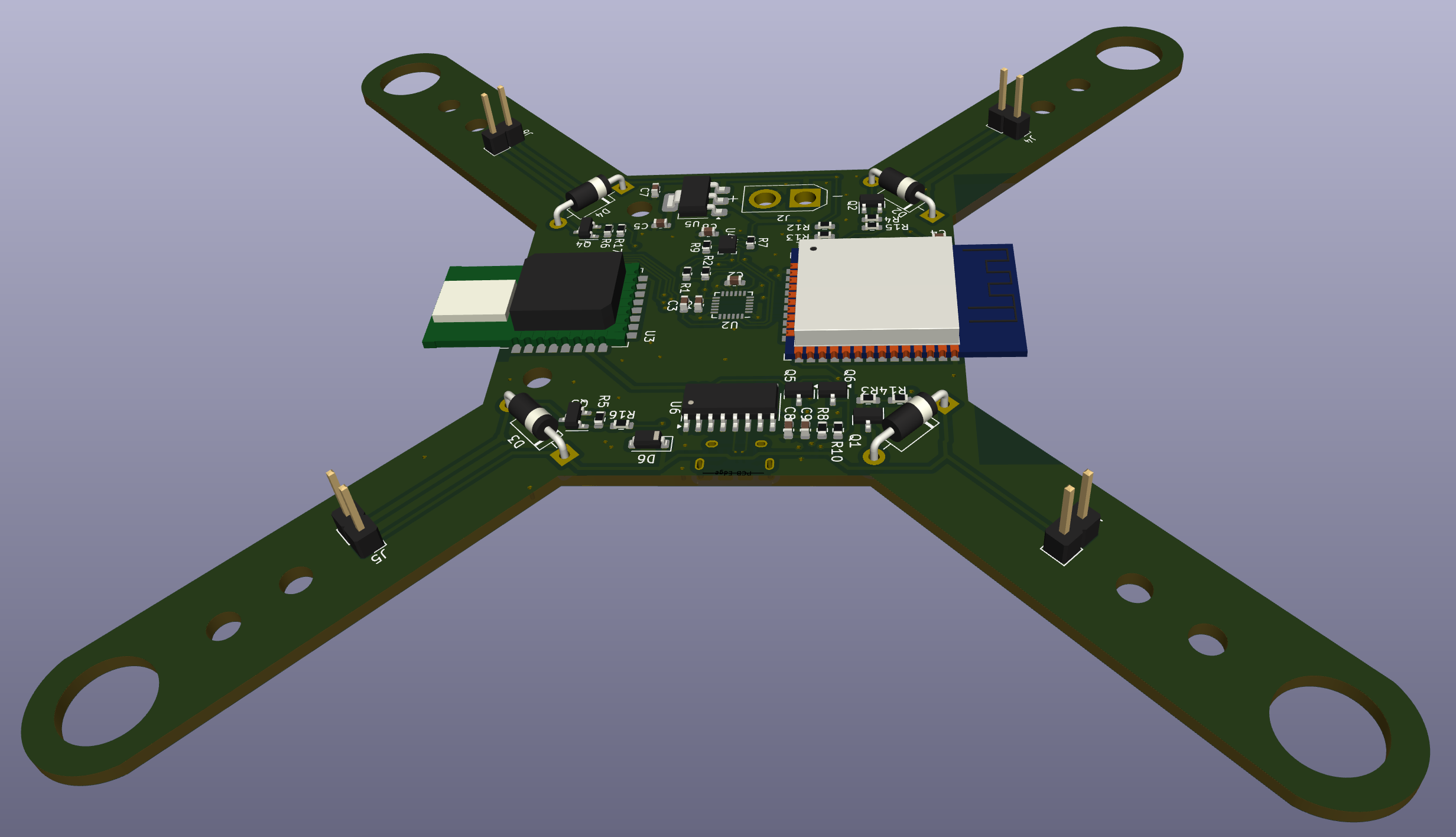

Drone, from the project README
From the project README

Main components on the Drone

ESP32-WROOM-32MPU-6050DWM1000BMP280LM1117MP-3.3CH340C

Drone bill of materials (BOM)

49 components, 18 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
MPU-6050
U2
1
DWM1000
U3
1
BMP280
U4
1
LM1117MP-3.3
U5
1
CH340C
U6
4
Si2319CDS
Q1, Q2, Q3, Q4
2
BSS138
Q5, Q6
1
Conn_01x02
J2
4
Conn_01x02
J3, J4, J5, J6
1
USB_B_Micro
J7
4
1N5819
D1, D2, D3, D4
1
WS2812B
D5
1
1N4148W
D6
9
C
C1, C2, C3, C4, C5, C6, C7, C8 +1
10
R_Small
R1, R2, R3, R4, R5, R6, R14, R15 +2
4
10K
R7, R8, R9, R10
2
100K
R12, R13

Drone design files

The KiCad project lives in the rmingon/drone-uwb repository on GitHub; these links point at the commit this page was built from.

Drone: common questions

What microcontroller does the Drone use?

The Drone is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the Drone PCB?

The Drone measures 117.4 × 117.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Drone?

49 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Drone design files?

From the rmingon/drone-uwb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Drone design in my own project?

The repository has no license, so all rights stay with rmingon. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Drone without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.

More boards in drone-uwb
