Ec11-evqwgd001
About the Ec11-evqwgd001 PCB

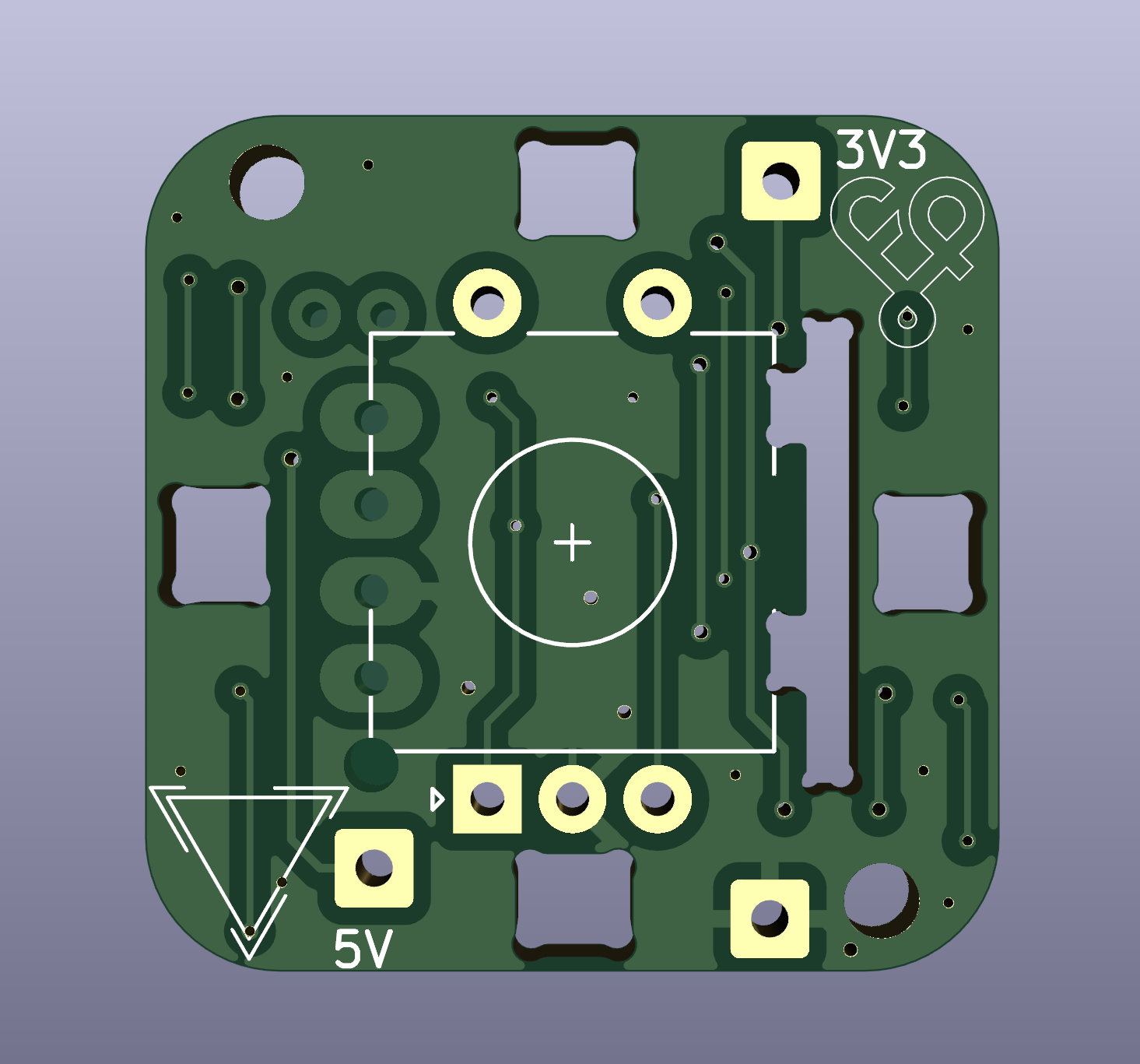

Ec11-evqwgd001 is an open source PCB design by sadekbaroudi, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25 × 25 mm, with 10 components from 5 distinct parts.
By type, the board carries 4 connectors, 4 diodes and 2 switches.
From the project
This is a simple EC11 and EVQWGD001 vik module. It has support for 4 upwards facing SK6812 mini-e leds, in case you want to add a little pizzazz to your encoder.
This is a simple EC11 and EVQWGD001 vik module. It has support for 4 upwards facing SK6812 mini-e leds, in case you want to add a little pizzazz to your encoder.
Please note that this PCB does not support the click, only rotation of the encoder.
For PCB fabrication, you can use the files in the production folder.
gerbers.zip - the file used to fabricate the pcb bom.csv - used for PCBA. You can also use the part numbers in this file to look up the exact parts as lcsc.com * positions.csv - used for PCBA
Ec11-evqwgd001 bill of materials (BOM)
10 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | CONN_01X01_SOCKET Conn_01x01_Socket | SolderWire-0.5sqmm_1x01_D0.9mm_OD2.3mm | J1001, J1007, J1013 |
| 1 | C2919557 ~ | vik-module-connector-horizontal | J1003 |
| 1 | EVQWGD001 | EVQWGD001 | SW1001 |
| 1 | RotaryEncoder | RotaryEncoder_EC11-no-legs | SW1002 |
| 4 | SK6812MINI-E | SK6812MINI-E-no-switch-outline | D1001, D1002, D1003, D1004 |
Ec11-evqwgd001 design files
The KiCad project lives in the sadekbaroudi/vik repository on GitHub; these links point at the commit this page was built from.
Ec11-evqwgd001: common questions
How big is the Ec11-evqwgd001 PCB?
The Ec11-evqwgd001 measures 25 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ec11-evqwgd001?
10 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ec11-evqwgd001 design files?
From the sadekbaroudi/vik repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Ec11-evqwgd001 design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which sadekbaroudi chose for the repository.
