Haptic drv2605l
About the Haptic drv2605l PCB
Haptic drv2605l is an open source PCB design by sadekbaroudi, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25 × 42 mm, with 12 components from 10 distinct parts.
Other key parts include the DRV2605LDGS. By type, the board carries 6 connectors, 2 capacitors, 2 resistors, 1 IC and 1 jumper.
From the project

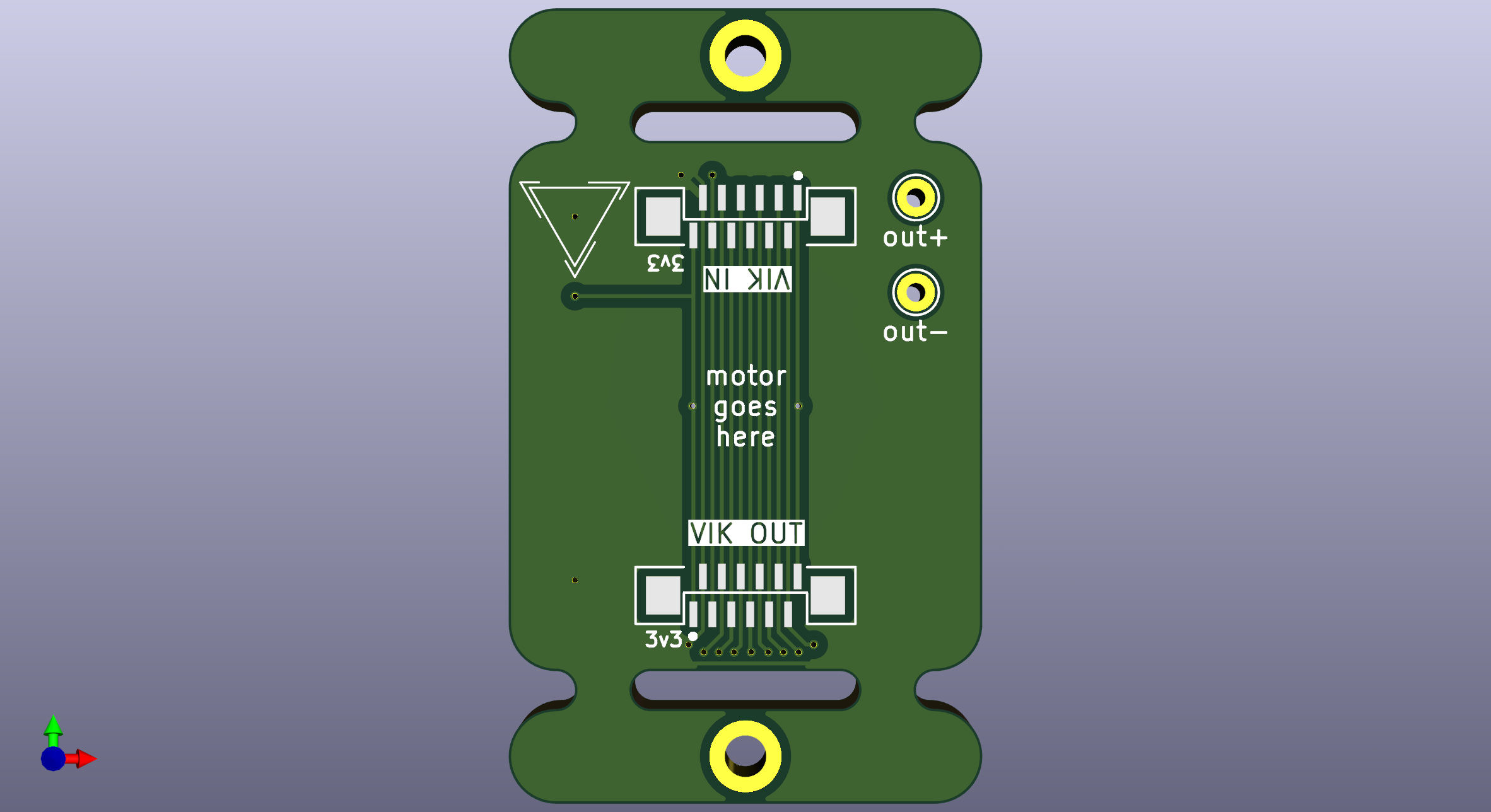

This is a VIK module made to house the DRV2605L motor controller for haptic feedback.
This is a VIK module made to house the DRV2605L motor controller for haptic feedback.
DRV2605L controller uses only I2C communication, so the module may serve as a VIK pass-through allowing a next module to be connected.
Module adheres to default small PCB size and mounting with additional holes for FFC cable which can also be used for breaking off mounting holes if even smaller size is needed.
Main components on the Haptic drv2605l
Haptic drv2605l bill of materials (BOM)
12 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DRV2605LDGS | VSSOP-10_3x3mm_P0.5mm | U1 |
| 1 | ~ | vik-module-connector-horizontal | J1 |
| 1 | out+ | TestPoint_THTPad_D2.0mm_Drill1.0mm | J2 |
| 1 | out- | TestPoint_THTPad_D2.0mm_Drill1.0mm | J3 |
| 1 | ~ | vik-module-connector-vertical | J4 |
| 1 | ~ | vik-keyboard-connector-horizontal | J5 |
| 1 | ~ | vik-keyboard-connector-vertical | J6 |
| 1 | VCC | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1 |
| 2 | 1u | C_1206_3216Metric | C1, C2 |
| 2 | 4.7k | R_1206_3216Metric | R1, R2 |
Haptic drv2605l design files
The KiCad project lives in the sadekbaroudi/vik repository on GitHub; these links point at the commit this page was built from.
Haptic drv2605l: common questions
How big is the Haptic drv2605l PCB?
The Haptic drv2605l measures 25 × 42 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Haptic drv2605l?
12 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Haptic drv2605l design files?
From the sadekbaroudi/vik repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Haptic drv2605l design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which sadekbaroudi chose for the repository.
