Joysticks
About the Joysticks PCB

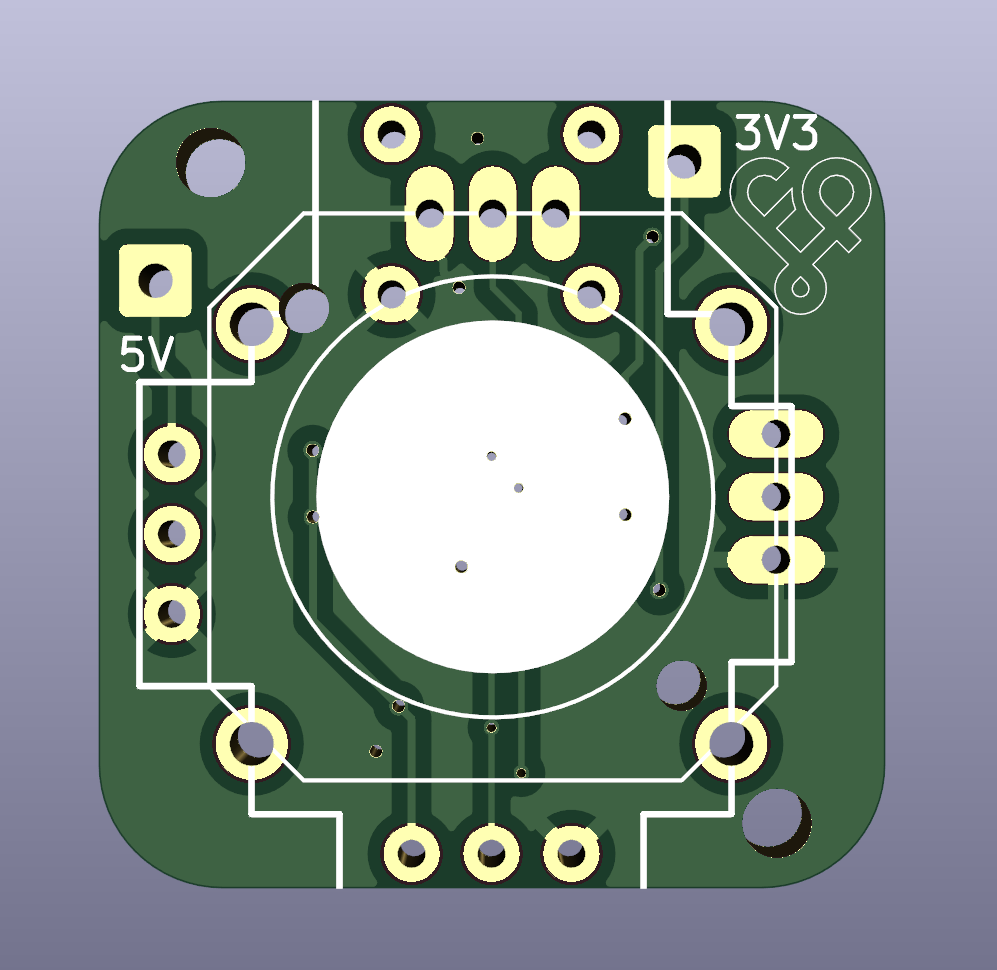

Joysticks is an open source PCB design by sadekbaroudi, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25 × 25 mm, with 6 components from 5 distinct parts.
By type, the board carries 4 connectors and 1 switch.
From the project
This is a vik module to support the following joysticks: adafruit 2765 sparkfun 9032 * nintendo joycon joystick
This is a vik module to support the following joysticks: adafruit 2765 sparkfun 9032 * nintendo joycon joystick
Please note that this PCB does not support the click on the sparkfun analog joystick, only x and y movements
For PCB fabrication, you can use the files in the production folder.
gerbers.zip - the file used to fabricate the pcb bom.csv - used for PCBA. You can also use the part numbers in this file to look up the exact parts as lcsc.com * positions.csv - used for PCBA
Joysticks bill of materials (BOM)
6 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | CONN_01X01_SOCKET Conn_01x01_Socket | SolderWire-0.5sqmm_1x01_D0.9mm_OD2.3mm | J1001, J1007 |
| 1 | CONN_01X05_SOCKET Conn_01x05_Socket | TE_0-1734839-5_1x05-1MP_P0.5mm_Horizontal | J1002 |
| 1 | C2919557 ~ | vik-module-connector-horizontal | J1003 |
| 1 | JOYSTICK_ANALOG_XY | joystick_analog_xy | JOY1001 |
| 1 | JOYSTICK_THUMB | sparkfun_9032_joystick_thumb | S1001 |
Joysticks design files
The KiCad project lives in the sadekbaroudi/vik repository on GitHub; these links point at the commit this page was built from.
Joysticks: common questions
How big is the Joysticks PCB?
The Joysticks measures 25 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Joysticks?
6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Joysticks design files?
From the sadekbaroudi/vik repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Joysticks design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which sadekbaroudi chose for the repository.
