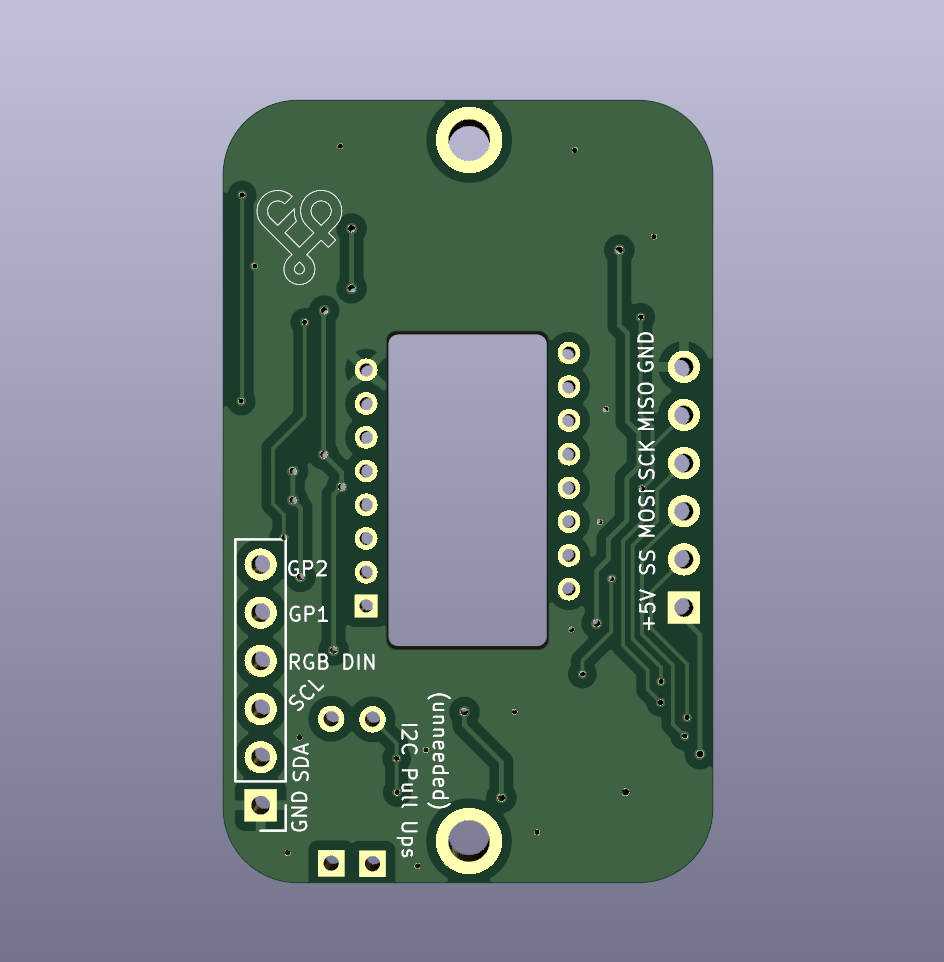

Pmw3360 PCB layout, top view — open source board by sadekbaroudi
Simulate this board

About the Pmw3360 PCB

Pmw3360 is an open source PCB design by sadekbaroudi, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25.9 × 41.3 mm, with 14 components from 10 distinct parts.

Other key parts include the AP7331-WG-7 and PMW3360DM-T2QU. By type, the board carries 6 resistors, 3 connectors, 3 capacitors and 2 ICs.

It belongs with the keyboards designs in this gallery.

From the project

This is a VIK module to use a PMW3360 motion sensor. This sensor is primarily used for mousing applications, and is supported in QMK

This is a VIK module to use a PMW3360 motion sensor. This sensor is primarily used for mousing applications, and is supported in QMK

The most common use in the keyboard community is for trackballs.

Note that while I2C, RGB, and extra GPIO are broken out, but are not used in the circuitry, so they are not needed for the sensor. There are also footprints for I2C pull up resistors, which are also not needed, as I2C is not used.

Pmw3360, from the project README
From the project README

Main components on the Pmw3360

AP7331-WG-7PMW3360DM-T2QU

Pmw3360 bill of materials (BOM)

14 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP7331-WG-7
AP7335-WG-7
IC1001
1
PMW3360DM-T2QU
U1001
2
CONN_01X06_FEMALE
Conn_01x06_Female
J1001, J1002
1
C479750
~
J1003
1
4.7UF
4.7uF
C1001
2
1UF
1uF
C1002, C1005
2
10K
10k
R1001, R1004
1
39
R1002
1
15K
15k
R1003
2
4.7K
4.7k
R1005, R1006

Pmw3360 design files

The KiCad project lives in the sadekbaroudi/vik repository on GitHub; these links point at the commit this page was built from.
