Solenoid
About the Solenoid PCB

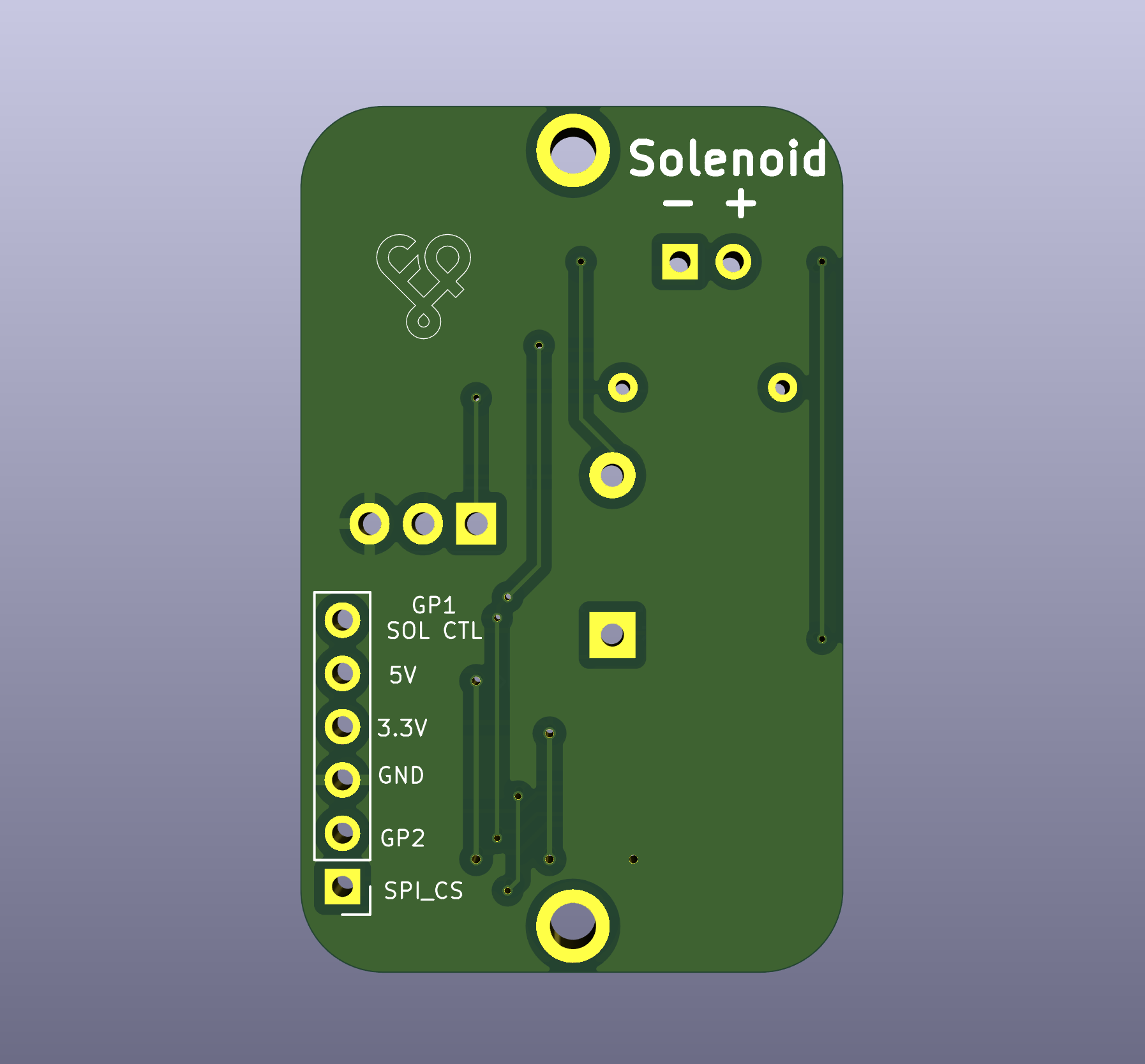

Solenoid is an open source PCB design by sadekbaroudi, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 25.9 × 41.3 mm, with 6 components from 6 distinct parts.
By type, the board carries 3 connectors, 1 transistor, 1 diode and 1 resistor.
From the project
This is a VIK module by sadekbaroudi to add a solenoid to a VIK enabled board or controller. It has the option to use 3.3v or 5v from VIK using a jumper, and additionally requires GND and GPIO_AD1.
This is a VIK module by sadekbaroudi to add a solenoid to a VIK enabled board or controller. It has the option to use 3.3v or 5v from VIK using a jumper, and additionally requires GND and GPIO_AD1.
For PCB fabrication, you can use the files in the production folder.
gerbers.zip - the file used to fabricate the pcb bom.csv - used for PCBA. You can also use the part numbers in this file to look up the exact parts as lcsc.com * positions.csv - used for PCBA
Solenoid bill of materials (BOM)
6 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TIP120 | TO-220-3_Vertical | Q1001 |
| 1 | CONN_01X02_FEMALE Conn_01x02_Female | PinHeader_1x02_P2.54mm_Vertical | J1001 |
| 1 | CONN_01X06_FEMALE Conn_01x06_Female | PinHeader_1x06_P2.54mm_Vertical | J1002 |
| 1 | C479750 ~ | vik-module-connector-horizontal | J1003 |
| 1 | 1N4001 | D_DO-41_SOD81_P7.62mm_Horizontal | D1001 |
| 1 | R2.2 | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1001 |
Solenoid design files
The KiCad project lives in the sadekbaroudi/vik repository on GitHub; these links point at the commit this page was built from.
Solenoid: common questions
How big is the Solenoid PCB?
The Solenoid measures 25.9 × 41.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Solenoid?
6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Solenoid design files?
From the sadekbaroudi/vik repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Solenoid design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which sadekbaroudi chose for the repository.
