About the Vik universal PCB

Vik universal is an open source PCB design by sadekbaroudi, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 44.5 × 43 mm, with 150 components from 5 distinct parts.

By type, the board carries 146 jumpers, 2 connectors and 2 resistors.

From the project

This is a simple pcb that allows you to connect any series of up to 12 pin headers to a VIK connector, in any order.

This is a simple pcb that allows you to connect any series of up to 12 pin headers to a VIK connector, in any order.

You solder 1 (and ONLY 1) jumper per row, and it connects it to the corresponding VIK signal.

For PCB fabrication, you can use the files in the production folder.

gerbers.zip - the file used to fabricate the pcb bom.csv - used for PCBA. You can also use the part numbers in this file to look up the exact parts as lcsc.com * positions.csv - used for PCBA

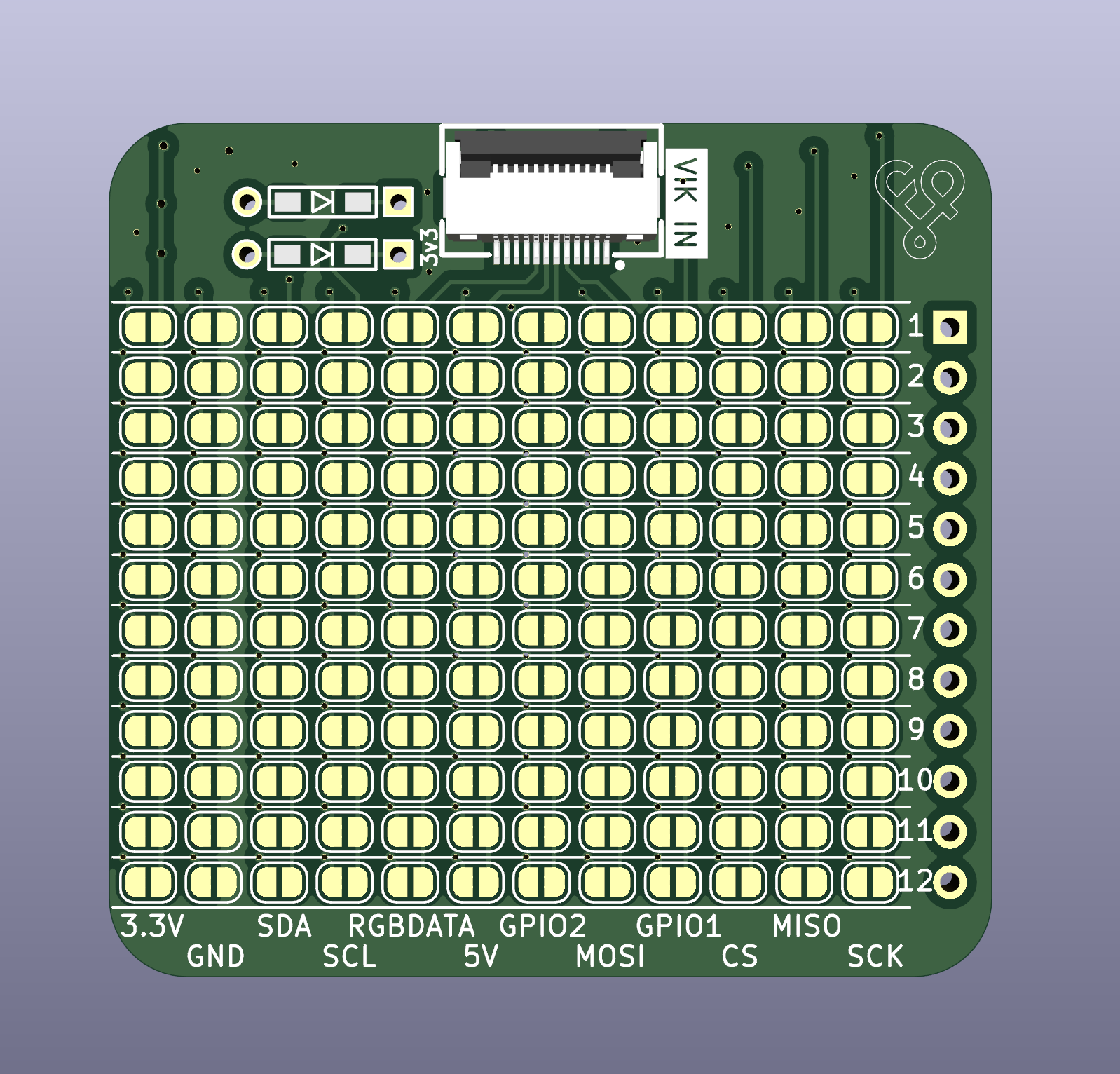

Vik universal, from the project README
From the project README

Vik universal bill of materials (BOM)

150 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CONN_01X01_SOCKET
Conn_01x01_Socket
J1001
1
C2919557
~
J1003
144
JUMPER_2_OPEN
Jumper_2_Open
JP1001, JP1002, JP1003, JP1004, JP1005, JP1006, JP1007, JP1008 +136
2
SOLDERJUMPER_2_OPEN
SolderJumper_2_Open
JP1145, JP1146
2
4.7K
4.7k
R1001, R1002

Vik universal design files

The KiCad project lives in the sadekbaroudi/vik repository on GitHub; these links point at the commit this page was built from.

Vik universal: common questions

How big is the Vik universal PCB?

The Vik universal measures 44.5 × 43 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vik universal?

150 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Vik universal design files?

From the sadekbaroudi/vik repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Vik universal design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which sadekbaroudi chose for the repository.
