Microphone

satomm1·Robot·Electrical/Microphones/microphone/microphone.kicad_pcb

Microphone PCB layout, top view — open source board by satomm1

About the Microphone PCB

Microphone is an open source PCB design by satomm1, published on GitHub under the MIT license. It is a 2-layer board measuring 20.8 × 15 mm, with 3 components from 3 distinct parts.

By type, the board carries 1 connector, 1 microphone and 1 capacitor.

It belongs with the robotics & motion and audio designs in this gallery.

From the project

This directory holds the electrical design for the microphones. Note, you will need one PIC32 board and two microphone boards for a single system. The two microphones allows for stereo audio. The PIC32 board is an intermediary that translates the audio signal into a format that t

This directory holds the electrical design for the microphones. Note, you will need one PIC32 board and two microphone boards for a single system. The two microphones allows for stereo audio. The PIC32 board is an intermediary that translates the audio signal into a format that the Jetson can read.

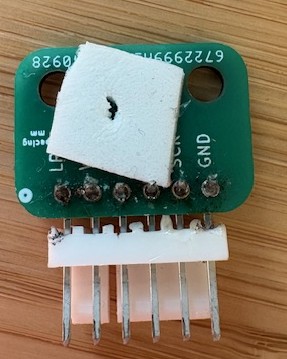

1. Attach the gasket, making a hole slightly larger than the microphone port (be sure the hole is big enough even after the gasket is compressed). For the gasket, I use a foam-like double sided tape.

Microphone, from the project README
From the project README

Microphone bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PRPC006SBAN-M71RC
Conn2MCU
Sullins Connector Solutions
J1
1
ICS-43434
MK1
1
CL21B104KBCNNNC
0.1 uF
Samsung Electro-Mechanics
C1

Microphone design files

The KiCad project lives in the satomm1/Robot repository on GitHub; these links point at the commit this page was built from.

Microphone: common questions

How big is the Microphone PCB?

The Microphone measures 20.8 × 15 mm, has 2 copper layers and is 1.64592 mm thick.

How many components are on the Microphone?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Microphone design files?

From the satomm1/Robot repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Microphone design in my own project?

Yes, under the terms of its MIT license, which satomm1 chose for the repository.
