LBEAST Universal Shield

scifiuiguy·LBEAST_Unreal·FirmwareExamples/PCBs/LBEAST_Universal_Shield/LBEAST_Universal_Shield.kicad_pcb

LBEAST Universal Shield layout, top view — open source ESP32 board by scifiuiguy

About the LBEAST Universal Shield

LBEAST Universal Shield is an open source ESP32 PCB design by scifiuiguy, published on GitHub under the MIT license. It is a 2-layer board measuring 118 × 84.5 mm, with 71 components from 38 distinct parts.

Its main chip is the ESP32-S3-2x22, from the ESP32 family. Other key parts include the LM2576HVS-5, LAN8720A and ADM3057ExRW. By type, the board carries 18 capacitors, 13 diodes, 12 connectors, 12 resistors, 9 switches and 4 ICs.

It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.

From the project

Location-Based Entertainment Activation Standard Toolkit - designed to streamline deployment of professional-grade multiplayer VR LBE in venues using immersive theater actors, standardized large hydraulics for motion and haptics, embedded systems for button input and small haptic feedback with vibrators and kickers, & AV OSC for lighting and sound.

Plug-n-Play Embedded Systems - an Absolute Necessity for Next-Level LBE:

The LBEAST Universal Shield ("LBUS" or "Uni-Shield") is a multi-platform ECU that provides unified connectivity and control for all LBEAST firmware applications. But what is it for? What does it do? ECU? What the heck is even that?

It's sort of like the little computer hidden behind the dashboard in your car. It's not a supercomputer... quite the opposite. It costs a few dollars to buy a few dev boards on Amazon and deploy them as ECUs by flashing programs onto them. If you've done IoT with Arduino, ESP32, or STM32...…

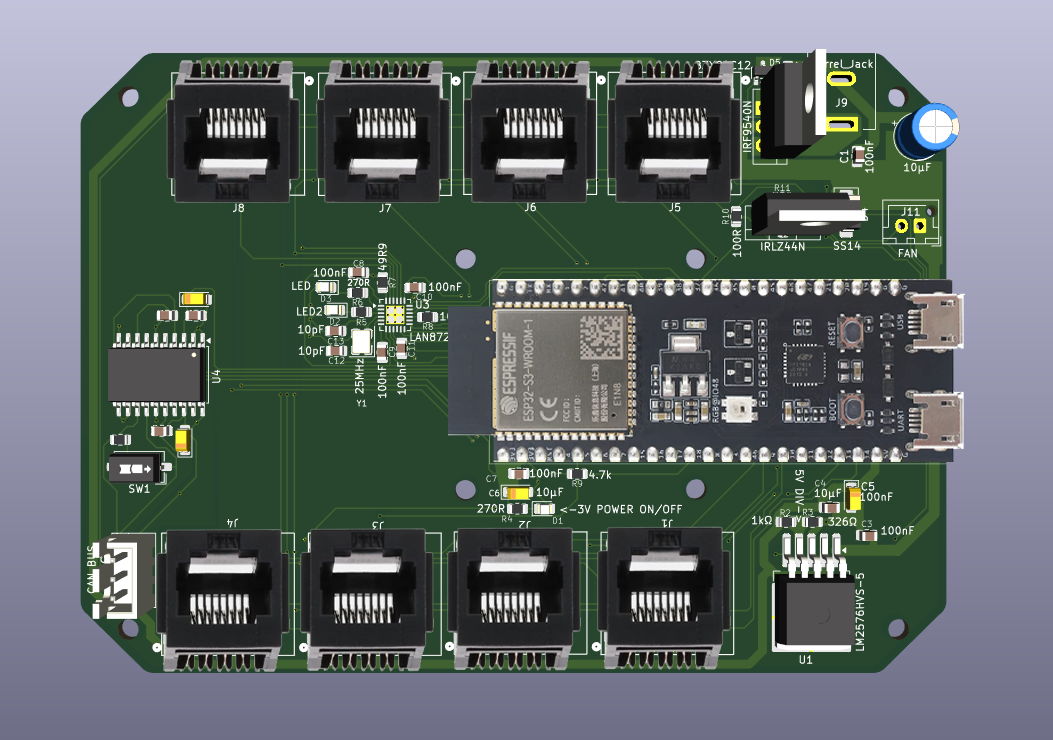

LBEAST Universal Shield, from the project README
From the project README

Main components on the LBEAST Universal Shield

LM2576HVS-5ESP32-S3-2x22LAN8720AADM3057ExRW

LBEAST Universal Shield bill of materials (BOM)

71 components, 38 distinct parts.

QtyPartRefs
1
LM2576HVS-5
U1
1
ESP32-S3-2x22
U2
1
LAN8720A
U3
1
ADM3057ExRW
U4
1
IRF9540N
Q1
1
IRLZ44N
Q2
1
25MHz
Y1
8
MTJ-883X1
J1, J2, J3, J4, J5, J6, J7, J8
1
Barrel_Jack
J9
1
CAN BUS
J10
1
2-Pin Fan
J11
1
UART_Debug_Header
J12
1
SW_DIP_x01
SW1
1
J1_PWR_SW
SW2
1
J2_PWR_SW
SW3
1
J3_PWR_SW
SW4
1
J4_PWR_SW
SW5
1
J5_PWR_SW
SW6
1
J6_PWR_SW
SW7
1
J7_PWR_SW
SW8
Show 18 more
QtyPartRefs
1
J8_PWR_SW
SW9
8
MBR735
D1, D2, D3, D4, D5, D6, D7, D8
1
BZX84C12
D9
3
LED
D10, D11, D12
1
SS14
D13
11
100nF
C1, C3, C4, C7, C8, C9, C10, C11 +3
1
10µF
C2
2
10µF
C5, C6
2
10pF
C12, C13
2
4.7µF
C16, C18
3
10K
R1, R8, R11
1
1 kΩ
R2
1
326Ω
R3
3
270R
R4, R5, R6
1
49R9
R7
1
4.7k
R9
1
100R
R10
1
120R
R12

LBEAST Universal Shield design files

The KiCad project lives in the scifiuiguy/LBEAST_Unreal repository on GitHub; these links point at the commit this page was built from.

LBEAST Universal Shield: common questions

What microcontroller does the LBEAST Universal Shield use?

The LBEAST Universal Shield is built around the ESP32-S3-2x22, from the ESP32 family.

How big is the LBEAST Universal Shield?

The LBEAST Universal Shield measures 118 × 84.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LBEAST Universal Shield?

71 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the LBEAST Universal Shield design files?

From the scifiuiguy/LBEAST_Unreal repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LBEAST Universal Shield design in my own project?

Yes, under the terms of its MIT license, which scifiuiguy chose for the repository.

Can I test firmware for the LBEAST Universal Shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
