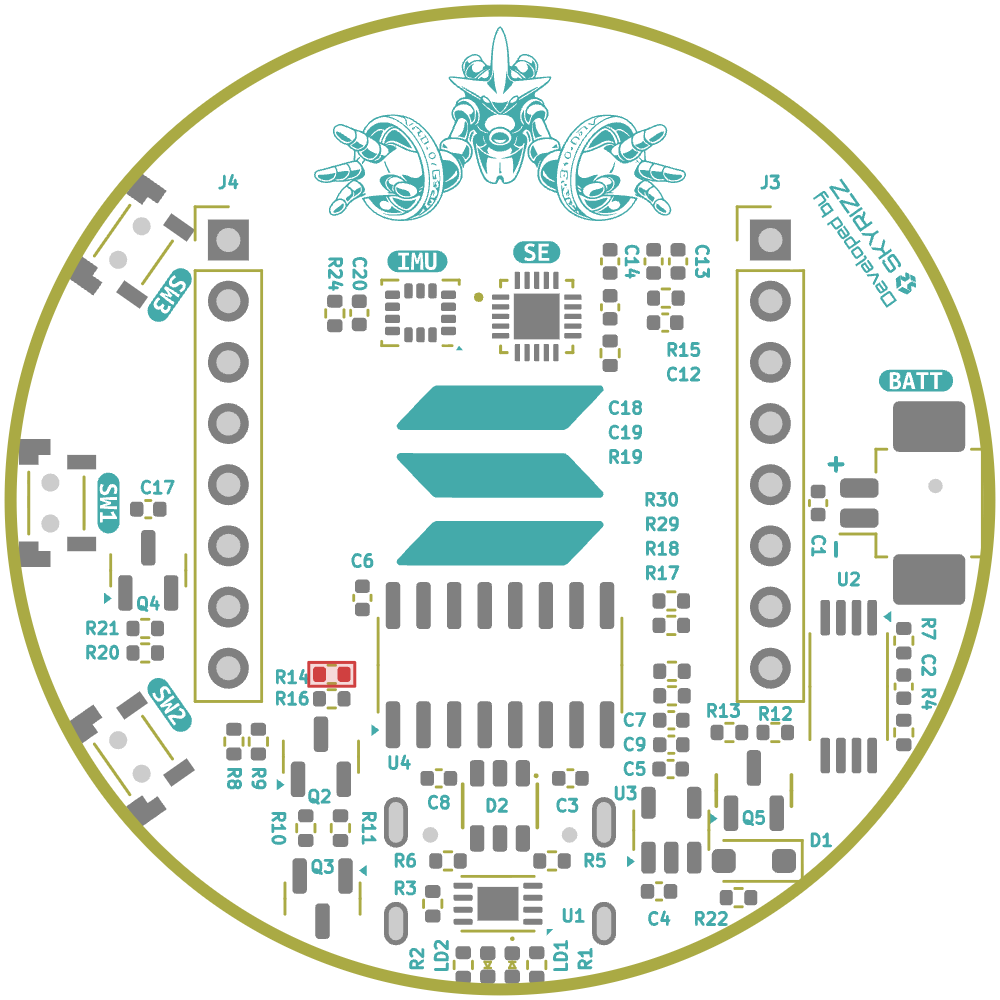

SkyRizz-ESPSOL PCB layout, top view — open source ESP32 board by SkyRizzAI

About the SkyRizz-ESPSOL PCB

SkyRizz-ESPSOL is an open source ESP32 PCB design by SkyRizzAI, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 40.6 × 40.6 mm, with 70 components from 35 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16R8, from the ESP32 family. Other key parts include the MCP73831-2-MC, DW03D, ME6211C33M5, CH340C and SE050C2HQ1_Z01SDZ. By type, the board carries 26 resistors, 17 capacitors, 8 ICs, 4 transistors, 4 connectors and 3 switches.

It belongs with the iot & wireless, sensors and usb & debug tools designs in this gallery.

From the project

An open-hardware, coin-sized ESP32-S3 development board with an on-board secure element, 6-axis IMU, PDM microphone, buzzer, USB-C, and Li-Po charging — all on a 40.6 mm (1.6") round, 2-layer PCB.

An open-hardware, coin-sized ESP32-S3 development board with an on-board secure element, 6-axis IMU, PDM microphone, buzzer, USB-C, and Li-Po charging — all on a 40.6 mm (1.6") round, 2-layer PCB.

Built for the Solana ecosystem: the tamper-resistant secure element, user buttons, and wireless connectivity make it a ready platform for hardware wallets, HID signers, Solana Pay terminals, and DePIN devices. See Built for the Solana ecosystem.

SkyRizz-ESPSOL, from the project README
From the project README

Main components on the SkyRizz-ESPSOL

MCP73831-2-MCDW03DME6211C33M5CH340CESP32-S3-WROOM-1-N16R8SE050C2HQ1_Z01SDZLSM6DS3FSUSB42UMX

SkyRizz-ESPSOL bill of materials (BOM)

70 components, 35 distinct parts.

QtyPartRefs
1
MCP73831-2-MC
U1
1
DW03D
U2
1
ME6211C33M5
U3
1
CH340C
U4
1
ESP32-S3-WROOM-1-N16R8
U5
1
SE050C2HQ1_Z01SDZ
U6
1
LSM6DS3
U7
1
FSUSB42UMX
U8
3
SS8050
Q2, Q3, Q4
1
AO3401A
Alpha & Omega Semicon
Q5
1
MX1.25mm-2P
J1
1
USB_C_Receptacle_USB2.0_16P
J2
2
Conn_01x08_Pin
J3, J4
2
SW_Push
BOOT1, RST1
1
YX-SMD5020
LS1
1
SPH0641LM4H-1
MK2
3
SEL
SW1, SW2, SW3
1
LED RED
LD1
1
LED BLUE
LD2
1
BAT60A
D1
Show 15 more
QtyPartRefs
1
SRV05-4-P-T7
ProTek Devices
D2
3
10U
C1, C4, C5
8
100n
C2, C8, C9, C13, C16, C18, C19, C20
4
1U
C3, C6, C7, C12
2
2U2
C14, C17
3
1K
R1, R2, R7
10
10K
R3, R8, R9, R10, R11, R15, R16, R19 +2
1
100
R4
2
5K1
R5, R6
2
22K
R12, R13
1
220
R14
2
2K2
R17, R18
1
470K
R21
2
100K
R22, R23
2
22
R29, R30

SkyRizz-ESPSOL design files

The KiCad project lives in the SkyRizzAI/SkyRizz-ESPSOL repository on GitHub; these links point at the commit this page was built from.

SkyRizz-ESPSOL: common questions

What microcontroller does the SkyRizz-ESPSOL use?

The SkyRizz-ESPSOL is built around the ESP32-S3-WROOM-1-N16R8, from the ESP32 family.

How big is the SkyRizz-ESPSOL PCB?

The SkyRizz-ESPSOL measures 40.6 × 40.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SkyRizz-ESPSOL?

70 components, from 35 distinct parts. The full bill of materials is listed on this page.

Where can I download the SkyRizz-ESPSOL design files?

From the SkyRizzAI/SkyRizz-ESPSOL repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SkyRizz-ESPSOL design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which SkyRizzAI chose for the repository.

Can I test firmware for the SkyRizz-ESPSOL without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
