Z2m partner PCB layout, top view — open source ESP32 board by smarthomefans
Simulate this board

About the Z2m partner PCB

Z2m partner is an open source ESP32 PCB design by smarthomefans, published on GitHub. It is a 2-layer board measuring 50 × 50 mm, with 50 components from 23 distinct parts.

Its main chip is the ESP-WROOM-02, from the ESP32 family. Other key parts include the CH340C, CD4052B, E18-MS1PA1-IPX, 74LVC1G66 and AMS1117-33. By type, the board carries 14 resistors, 12 capacitors, 8 diodes, 7 ICs, 3 switches and 2 transistors.

It belongs with the iot & wireless designs in this gallery.

From the project

Hardware module for iobroker.zigbee

This is hardware module for iobroker.zigbee and zigbee2mqtt or Zigbee to Tasmota. If you can speak Chinese and be interested with this project, please look at this post in ioBroker China BBS

- Use E18-MS1PA1-IPX zigbee module. 20dBm power can make sure zigbee net work signal is strong. - Add an ESP8266 module. Give you another option that can connect zigbee module though wifi-to-serial (I was using this project). If your machine running smarthome platform, such as ioBroker or homeassistant, is put in a hidden corner, for better signal coverage, you can put your zigbee module in some where…

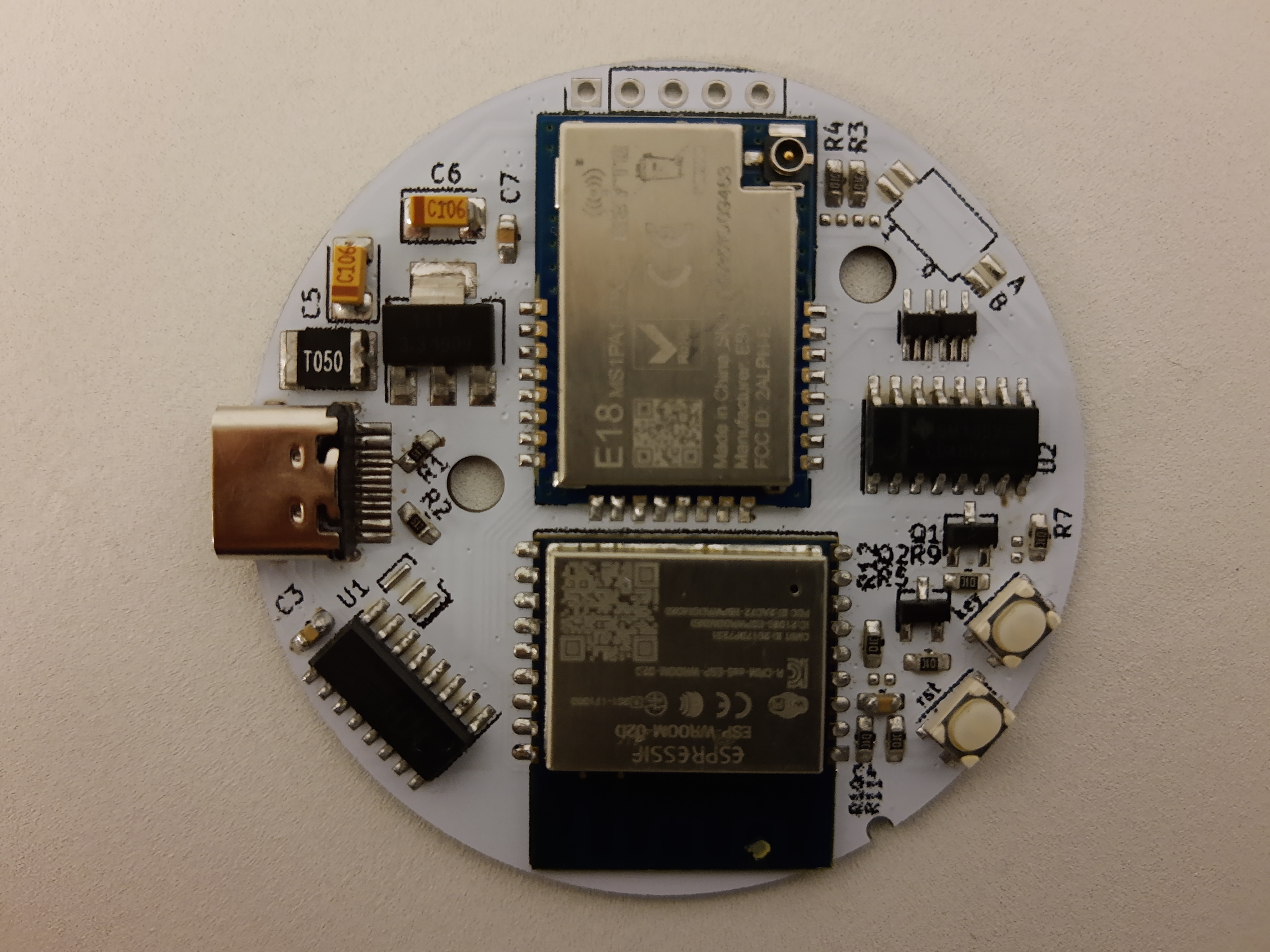

Z2m partner, from the project README
